Air Reservoir: Removal
WARNING:
Air suspension is pressurized up to 10 bar. Dirt or grease must not enter system. Wear hand, ear and eye safety standard protection when servicing system.
- Depressurize reservoir. See DEPRESSURIZING & PRESSURIZING SYSTEM under SERVICING.
- Clean around pipe connection and drain plug with stiff brush and soapy water.
- Open drain plug to release any residual pressure.

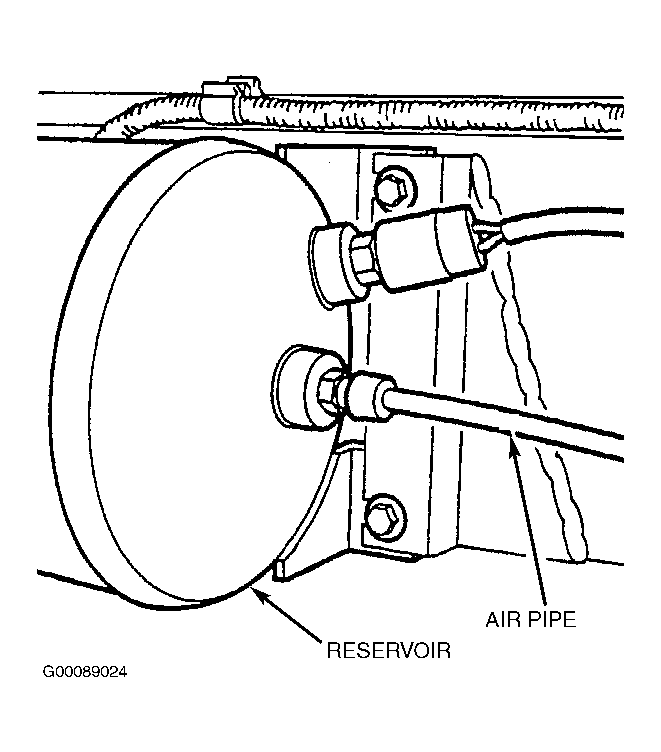

- Disconnect air pipe. See Fig 1 .
- Disconnect pressure switch multi-plug.
- Release 4 fixing bolts.
- Remove reservoir.
