Air Pipe Connection Collet & "O" Rings: Removal

WARNING: Air suspension is pressurized up to 10 bar. Dirt or grease must not enter system. Wear hand, ear and eye safety standard protection when servicing system.

1. Clean area with stiff brush and soapy water.
2. Depressurize system. Refer to DEPRESSURIZING & PRESSURIZING SYSTEM  under SERVICING.
3. Disconnect air pipe. See AIR PIPE  .
4. Remove collet. See Fig 1 .
CAUTION: Avoid scratching inside wall of housing, creating possible leak path.
5. Carefully pry out 2 "O" rings using a smooth plastic hook, e.g. a crochet hook. See Fig 1 .

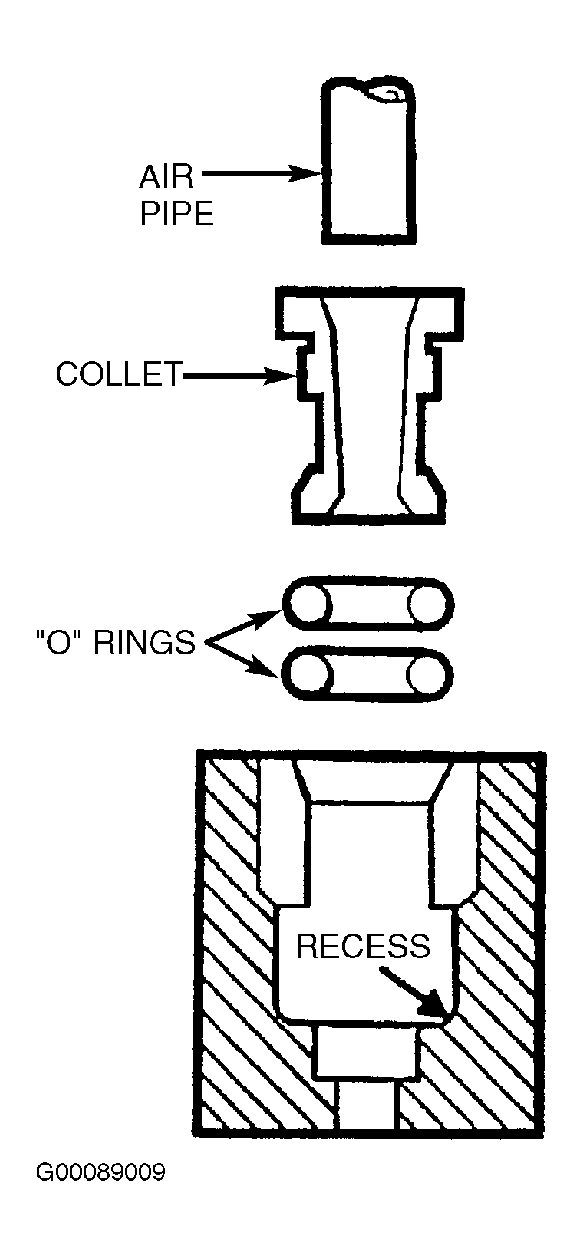

Fig 1: Removing Air Pipe Connection Collet & "O" Rings

Courtesy of LAND ROVER NORTH AMERICA, INC.
