Test V: Air Compressor Failure Or Air Supply Leak Indicated; Exhaust Valve Stuck Open Or Inlet Valve Stuck Closed

Perform TEST V only if directed from TEST T.

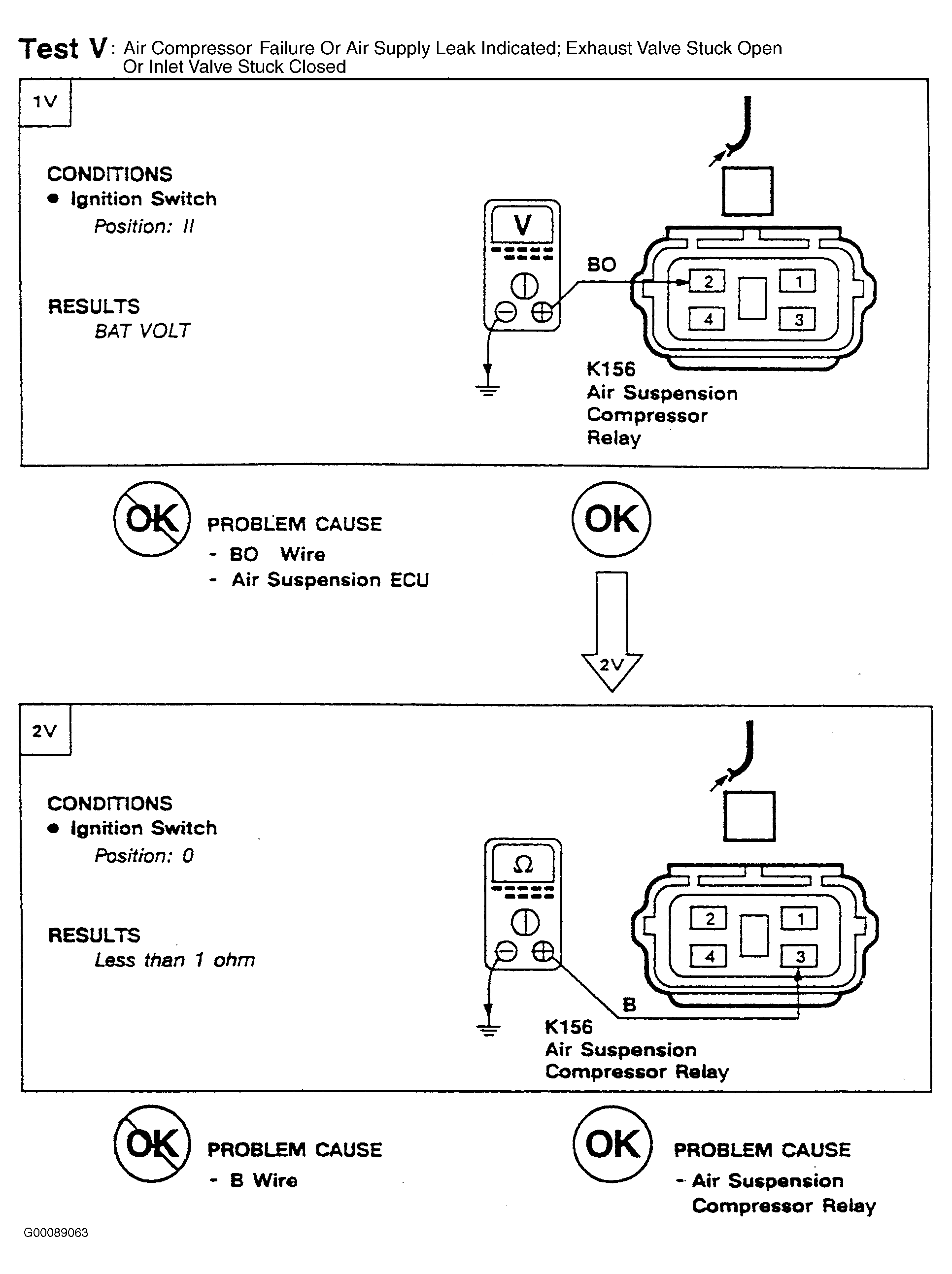

Fig 1: Test V: Air Compressor Failure Or Air Supply Leak Indicated; Exhaust Valve Stuck Open Or Inlet Valve Stuck Closed

Courtesy of LAND ROVER NORTH AMERICA, INC.
