Test U: Air Compressor Failure Or Air Supply Leak Indicated; Exhaust Valve Stuck Open Or Inlet Valve Stuck Closed

Perform TEST U only if directed from TEST T.

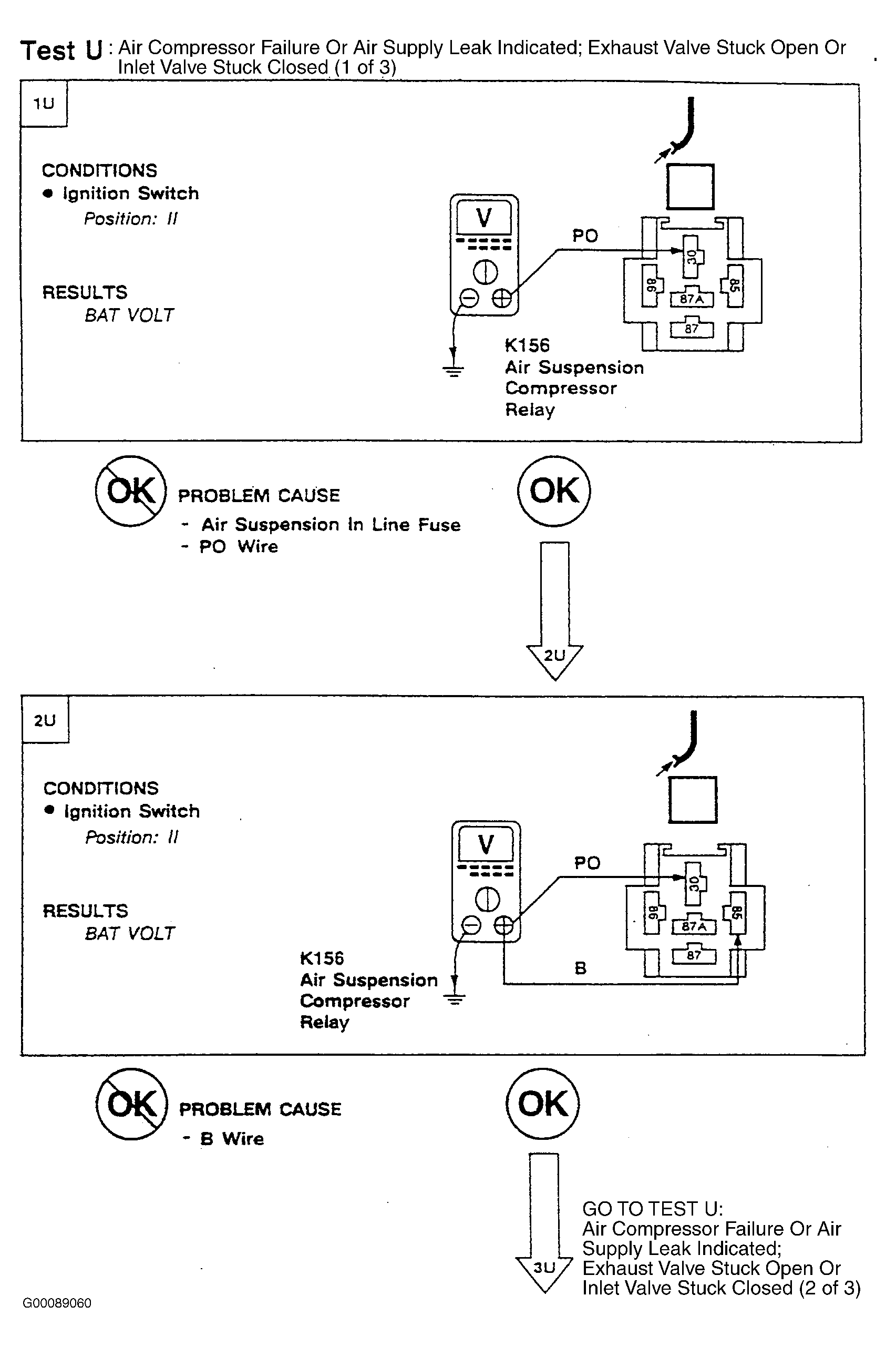

Fig 1: Test U: Air Compressor Failure Or Air Supply Leak Indicated; Exhaust Valve Stuck Open Or Inlet Valve Stuck Closed (1 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

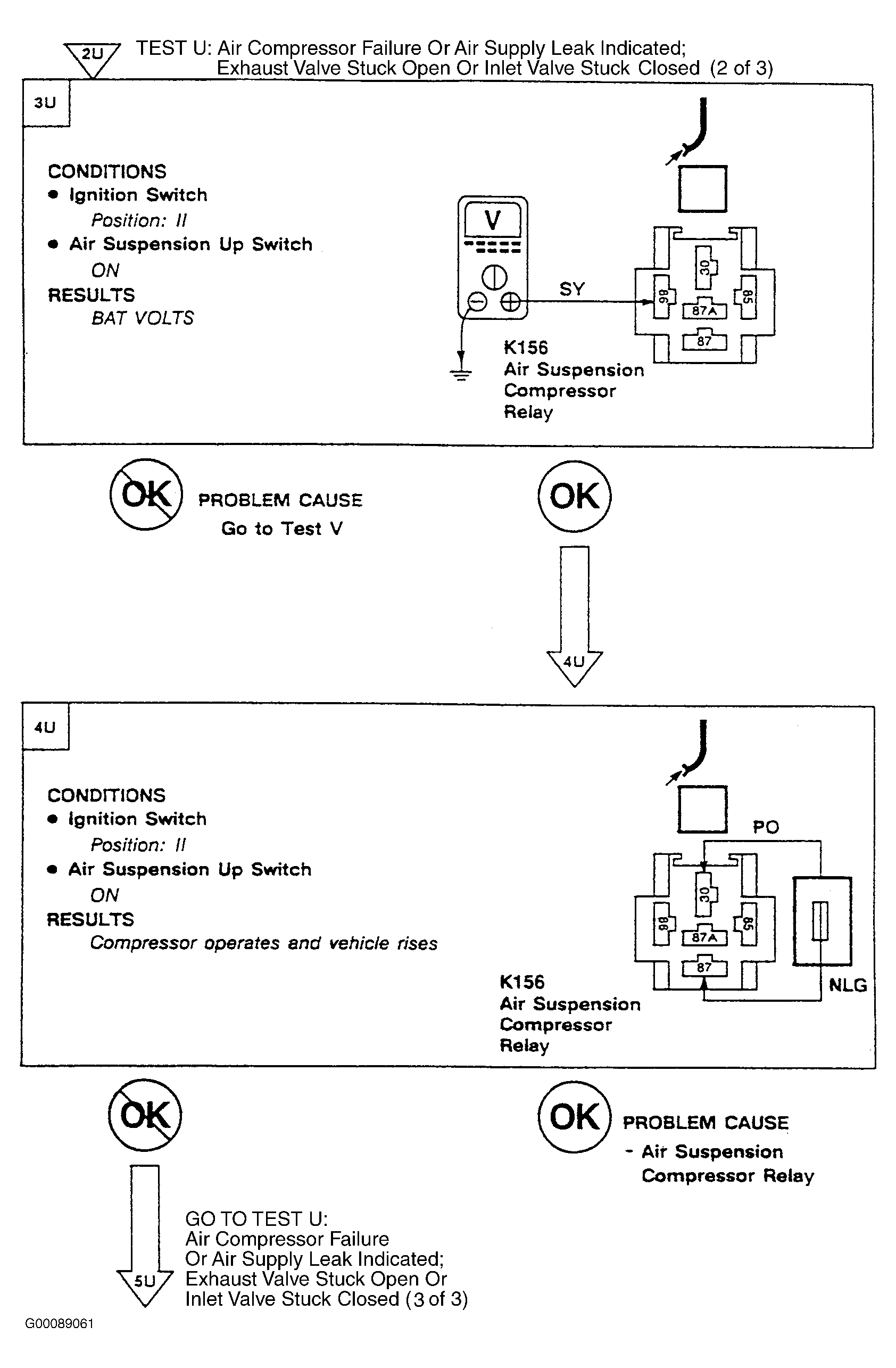

Fig 2: Test U: Air Compressor Failure Or Air Supply Leak Indicated; Exhaust Valve Stuck Open Or Inlet Valve Stuck Closed (2 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

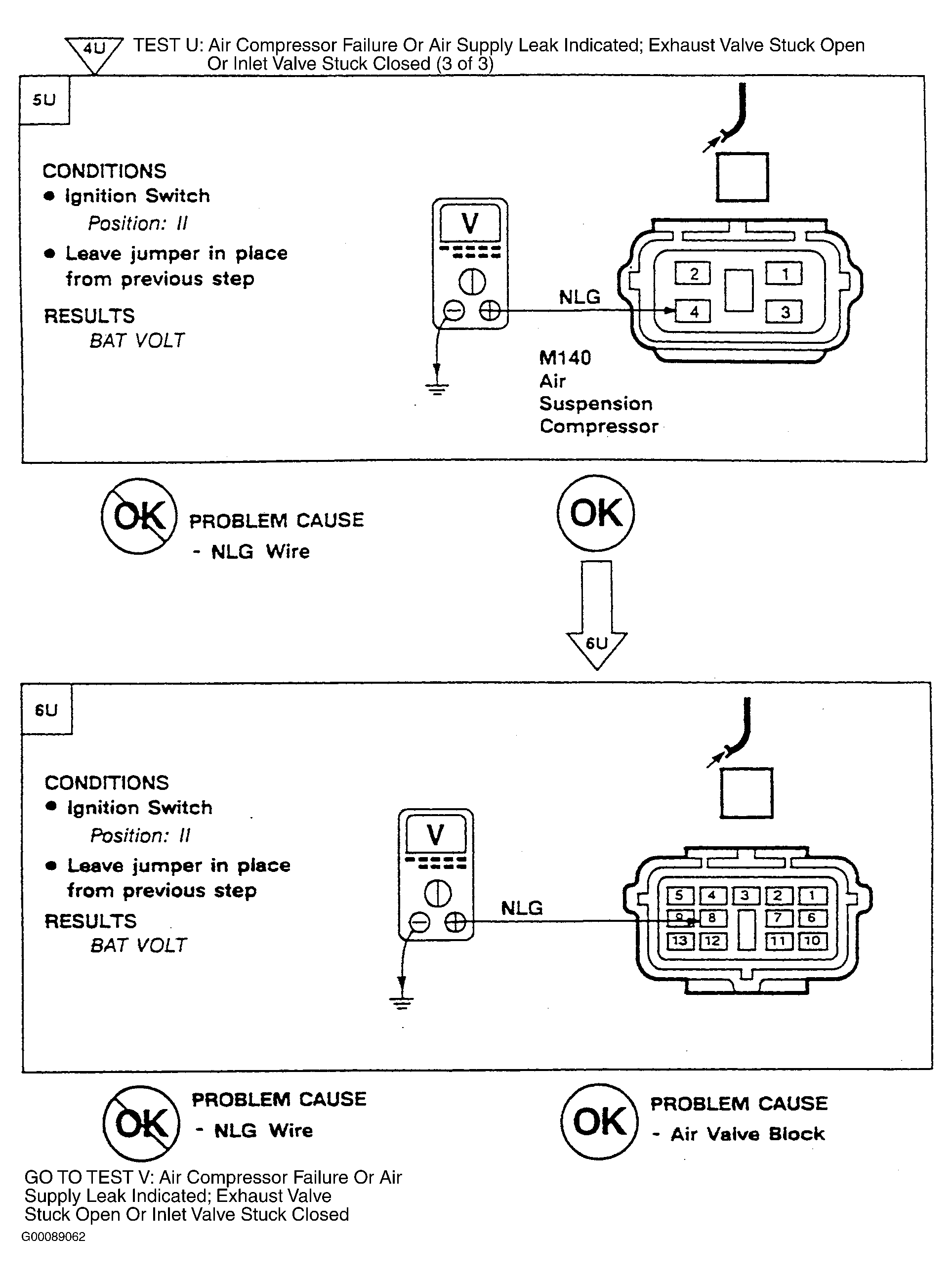

Fig 3: Test U: Air Compressor Failure Or Air Supply Leak Indicated; Exhaust Valve Stuck Open Or Inlet Valve Stuck Closed (3 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.
