Test T: Air Compressor Failure Or Air Supply Leak Indicated; Exhaust Valve Stuck Open Or Inlet Valve Stuck Closed

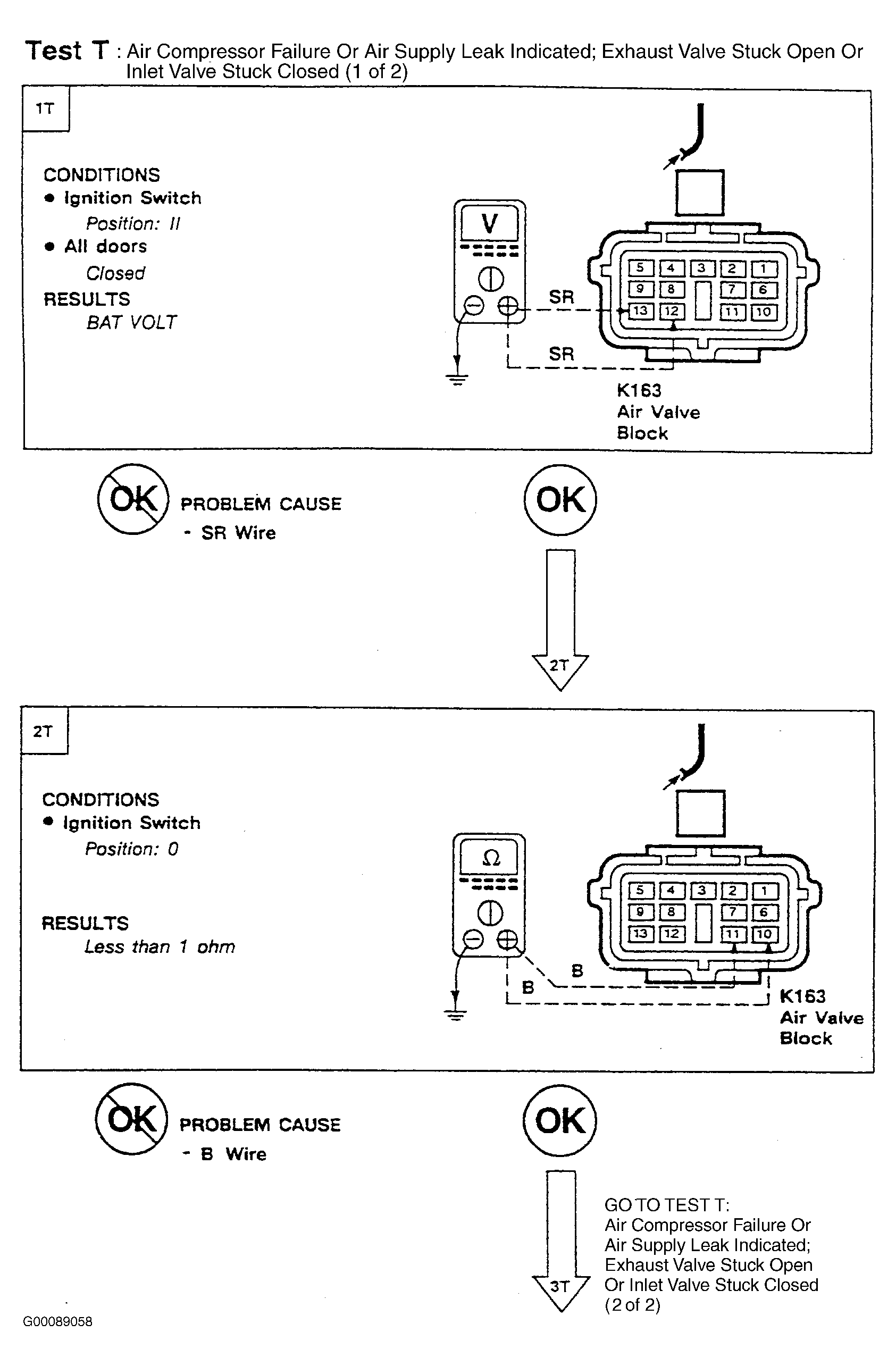

Fig 1: Test T: Air Compressor Failure Or Air Supply Leak Indicated; Exhaust Valve Stuck Open Or Inlet Valve Stuck Closed (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 2: Test T: Air Compressor Failure Or Air Supply Leak Indicated; Exhaust Valve Stuck Open Or Inlet Valve Stuck Closed (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
