Test S: Right Rear Valve Stuck Closed Or Cannot Lower Right Rear Air Spring

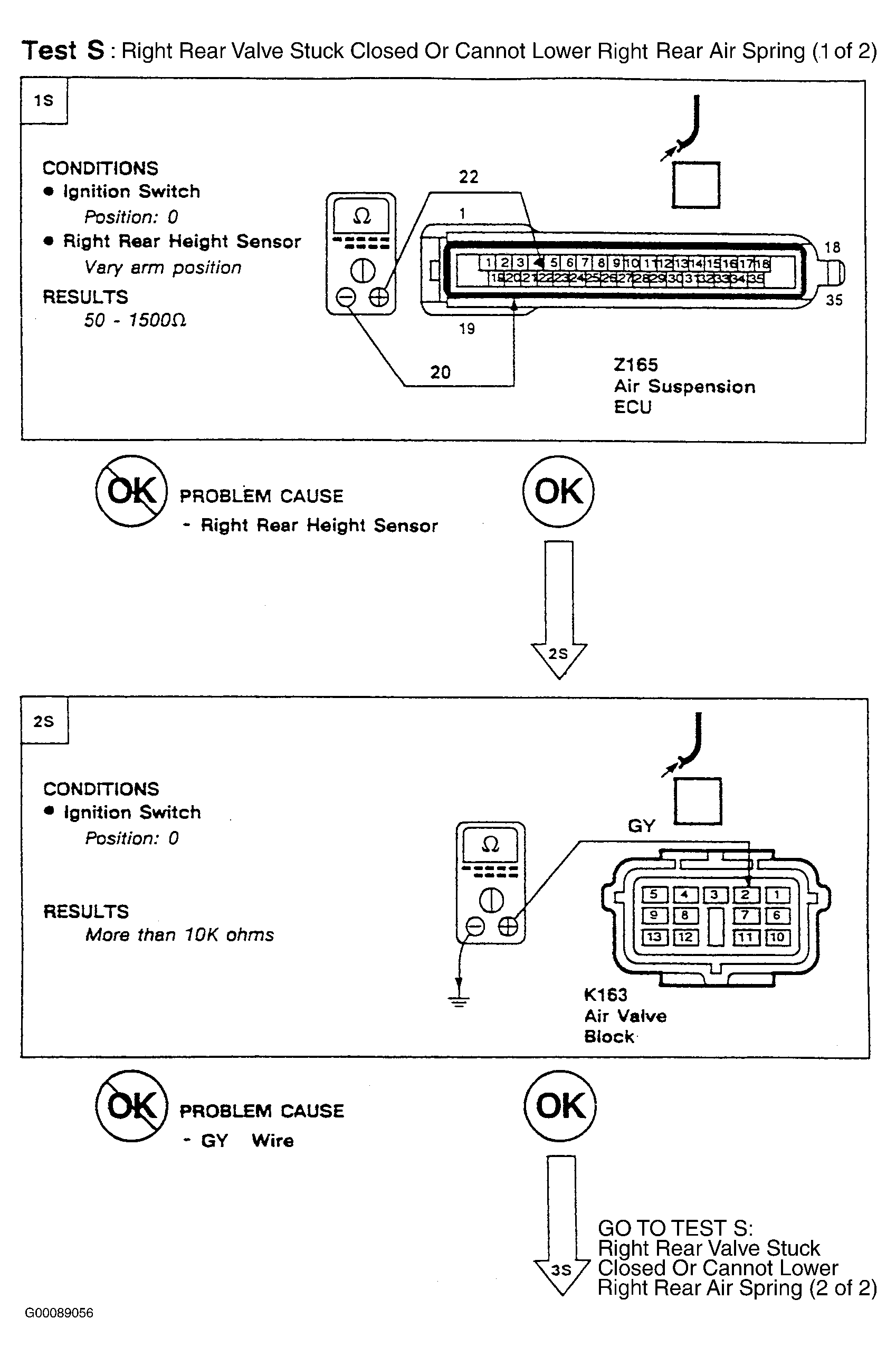

Fig 1: Test S: Right Rear Valve Stuck Closed Or Cannot Lower Right Rear Air Spring (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

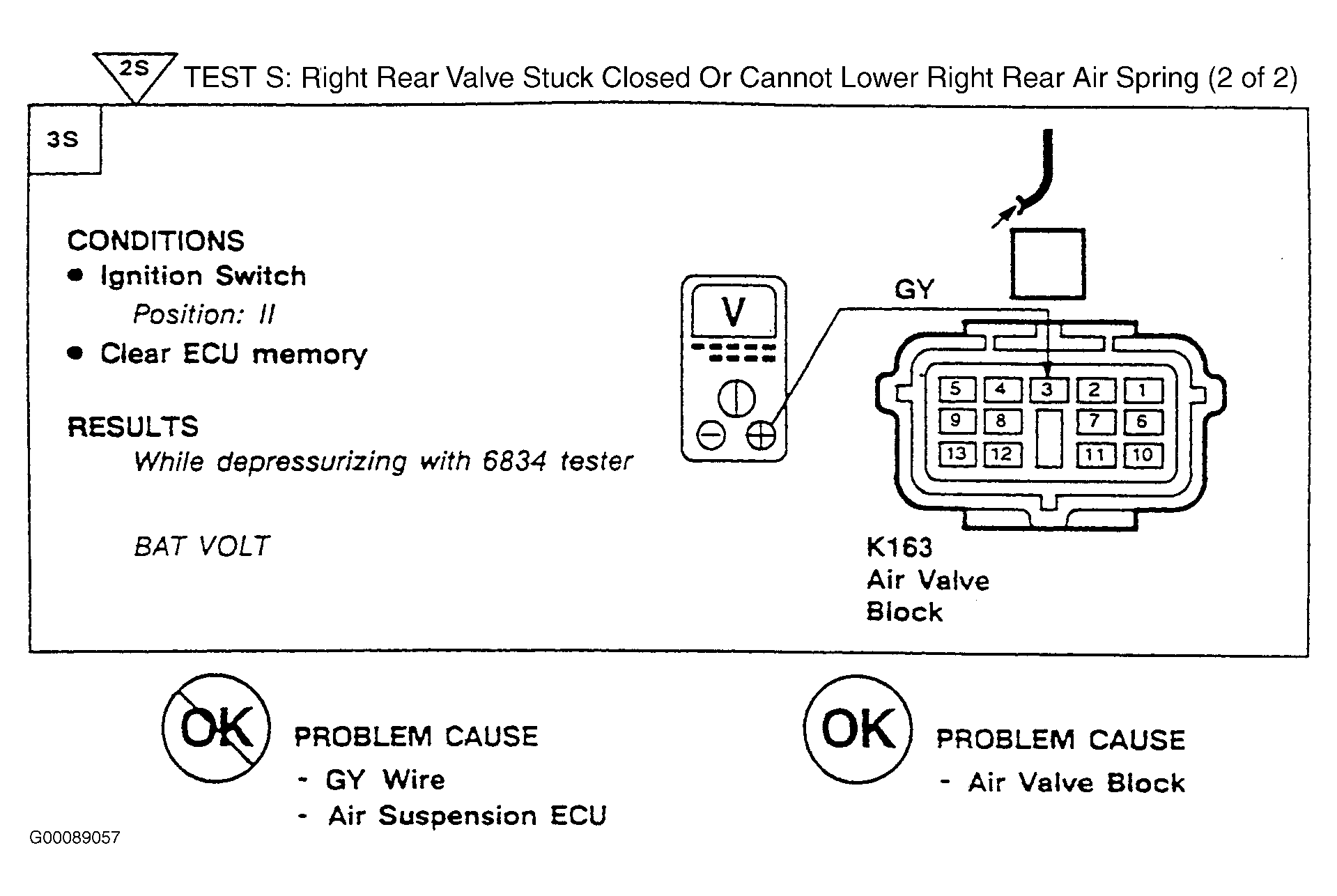

Fig 2: Test S: Right Rear Valve Stuck Closed Or Cannot Lower Right Rear Air Spring (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
