Test R: Left Rear Valve Stuck Closed Or Cannot Lower Left Rear Air Spring

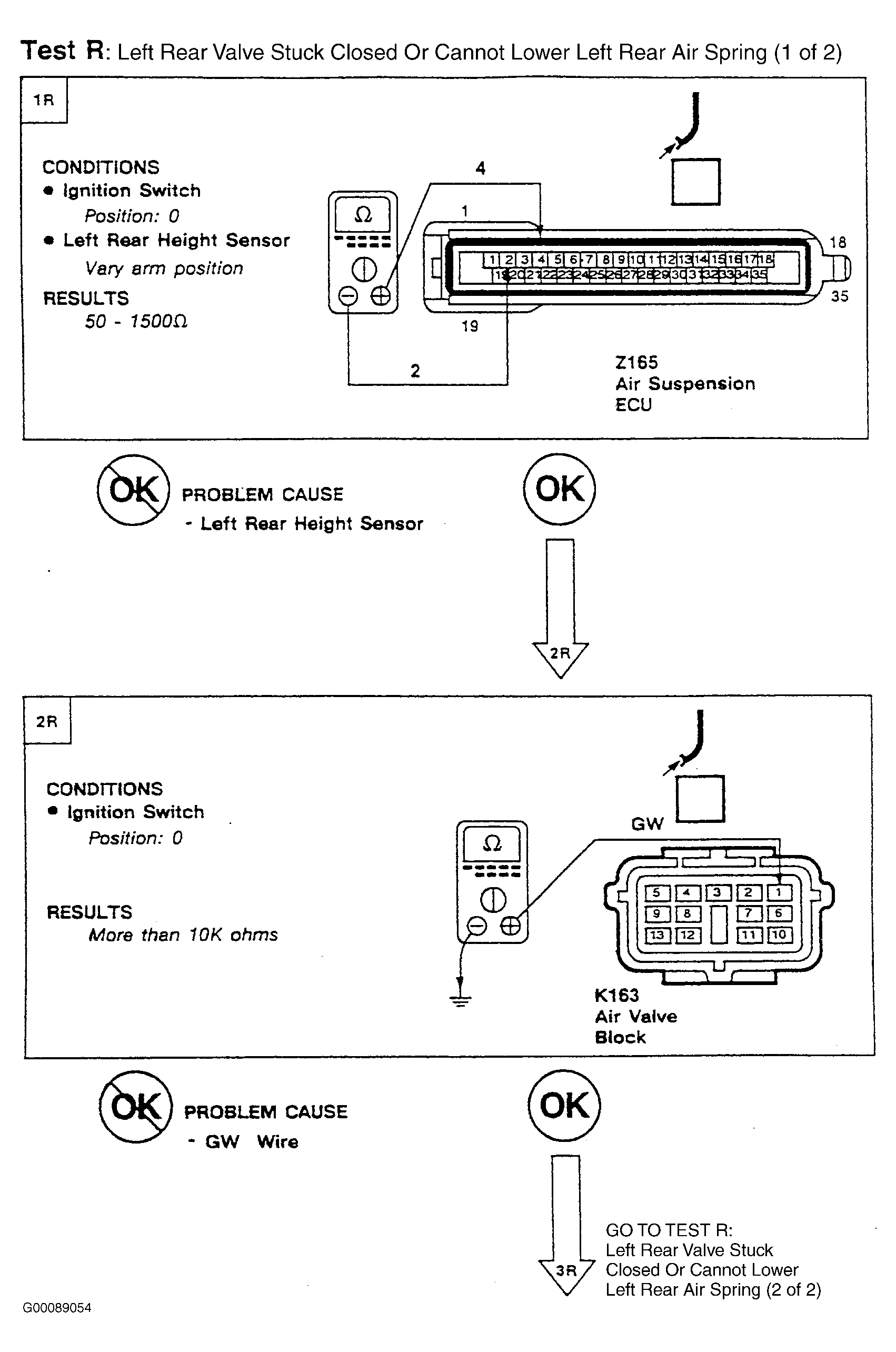

Fig 1: Test R: Left Rear Valve Stuck Closed Or Cannot Lower Left Rear Air Spring (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

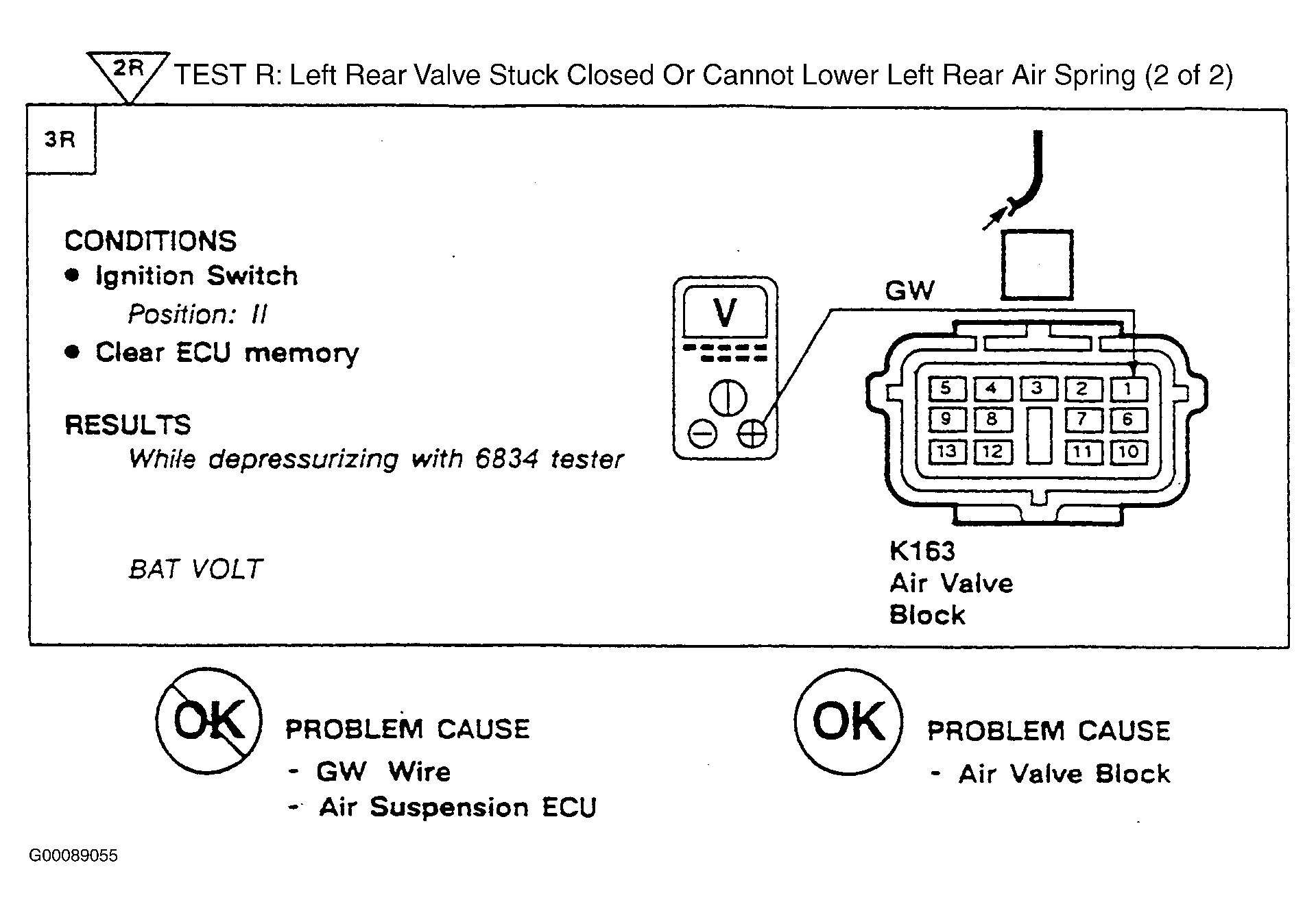

Fig 2: Test R: Left Rear Valve Stuck Closed Or Cannot Lower Left Rear Air Spring (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
