Test Q: Right Front Valve Stuck Closed Or Cannot Lower Right Front Air Spring

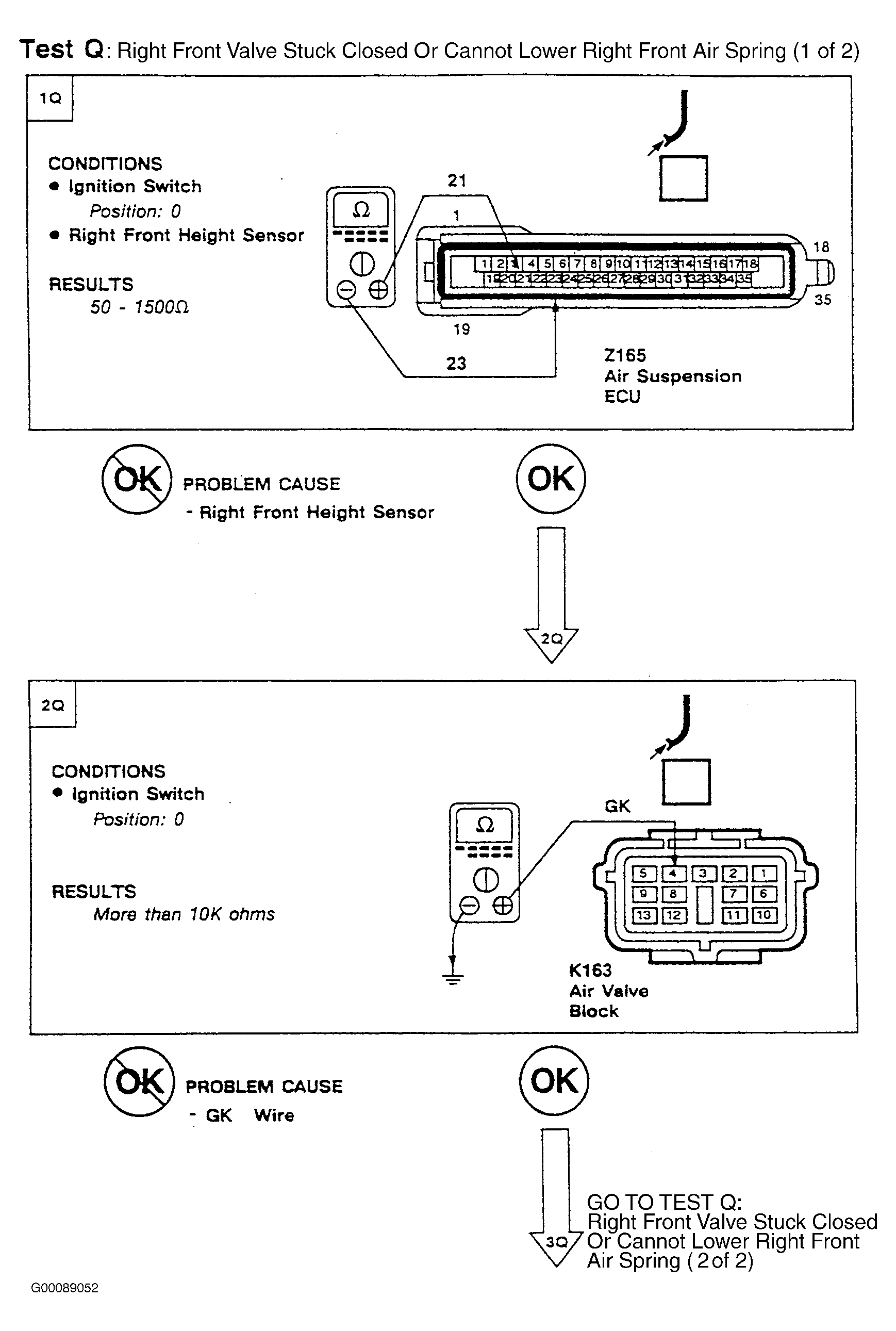

Fig 1: Test Q: Right Front Valve Stuck Closed Or Cannot Lower Right Front Air Spring (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

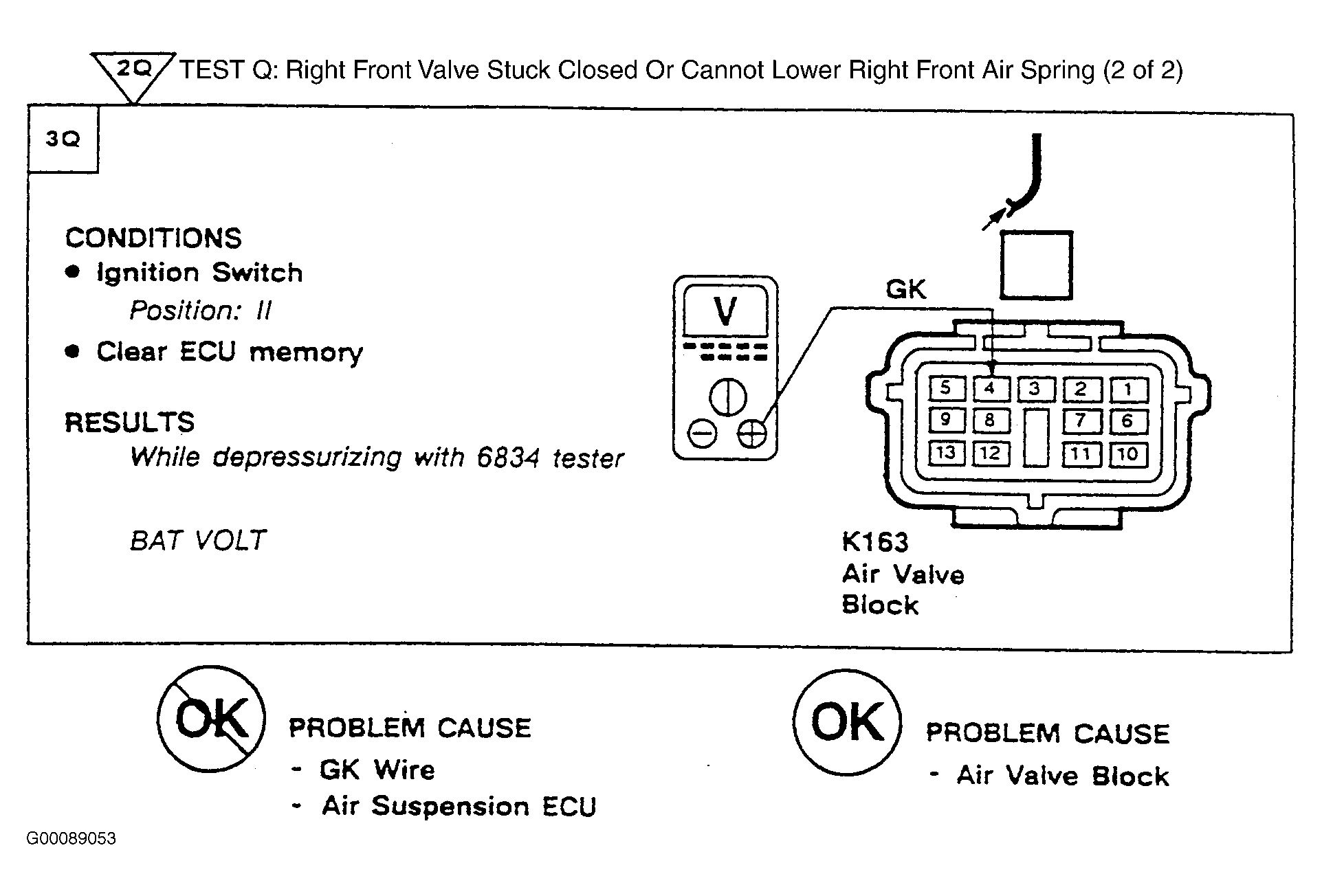

Fig 2: Test Q: Right Front Valve Stuck Closed Or Cannot Lower Right Front Air Spring (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
