Test P: Left Front Valve Stuck Closed Or Cannot Lower Left Front Air Spring

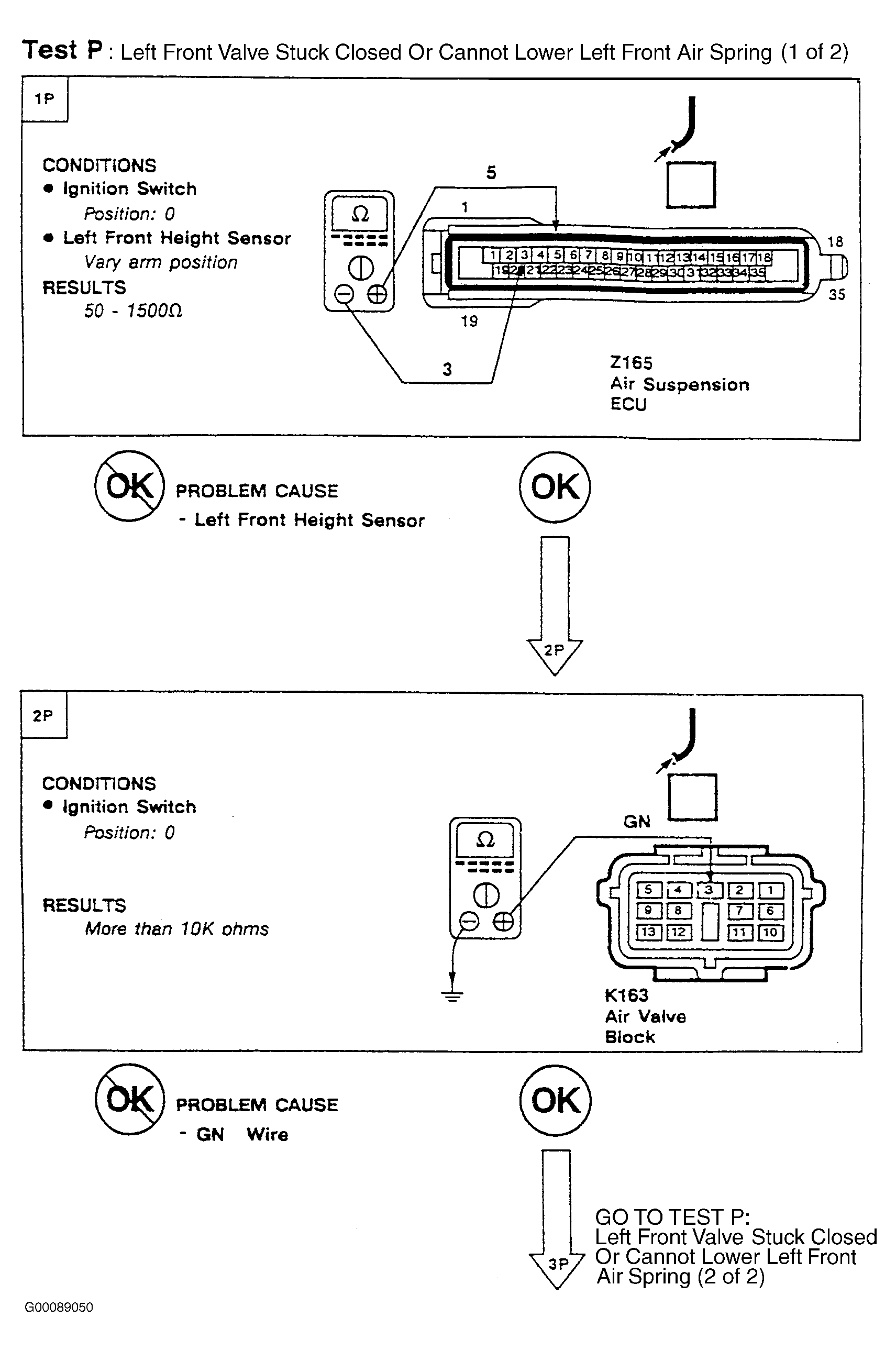

Fig 1: Test P: Left Front Valve Stuck Closed Or Cannot Lower Left Front Air Spring (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

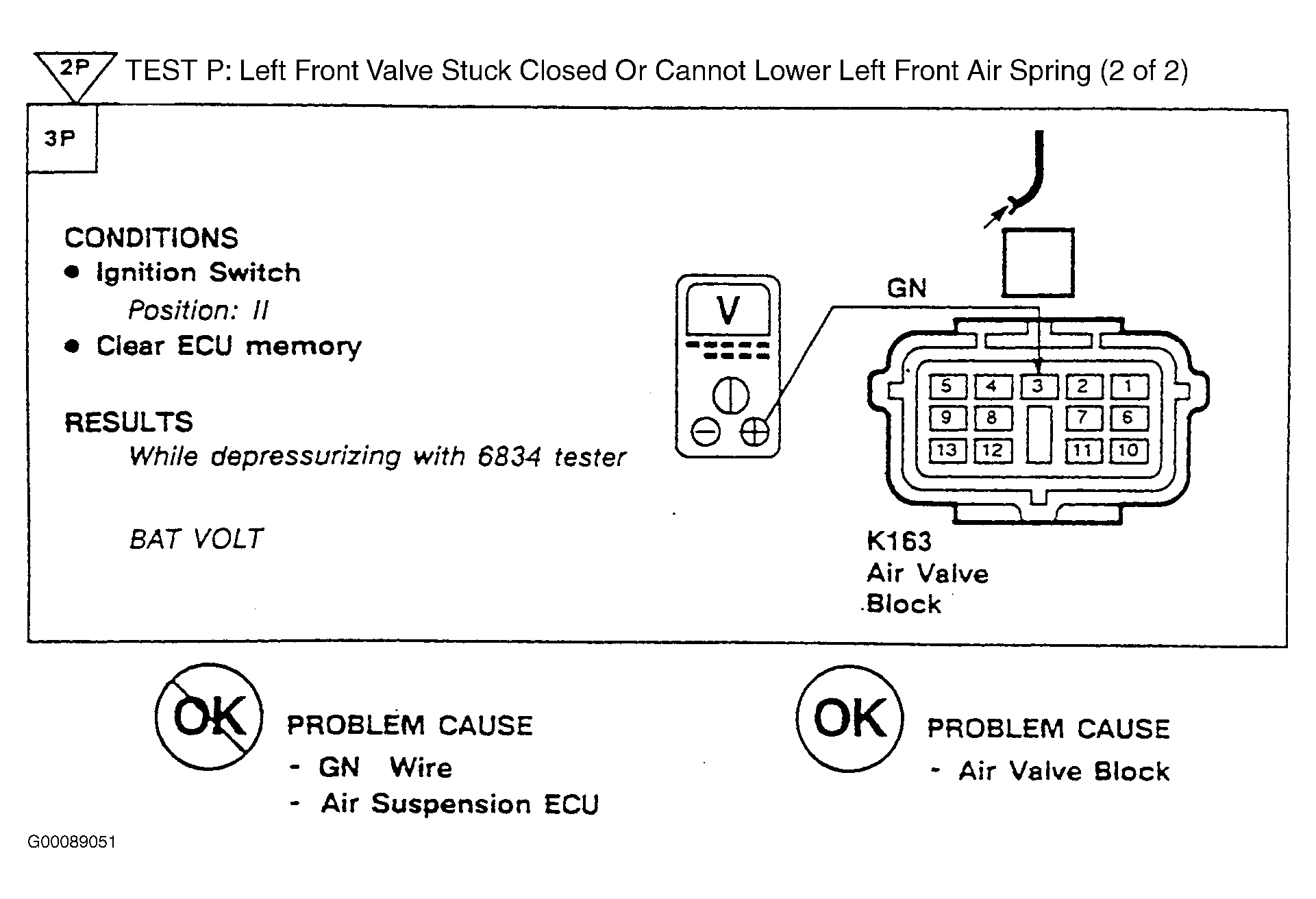

Fig 2: Test P: Left Front Valve Stuck Closed Or Cannot Lower Left front Air Spring (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
