Test L: Left Rear Sensor Above/Below Limit

Perform TEST K only if directed from TEST J.

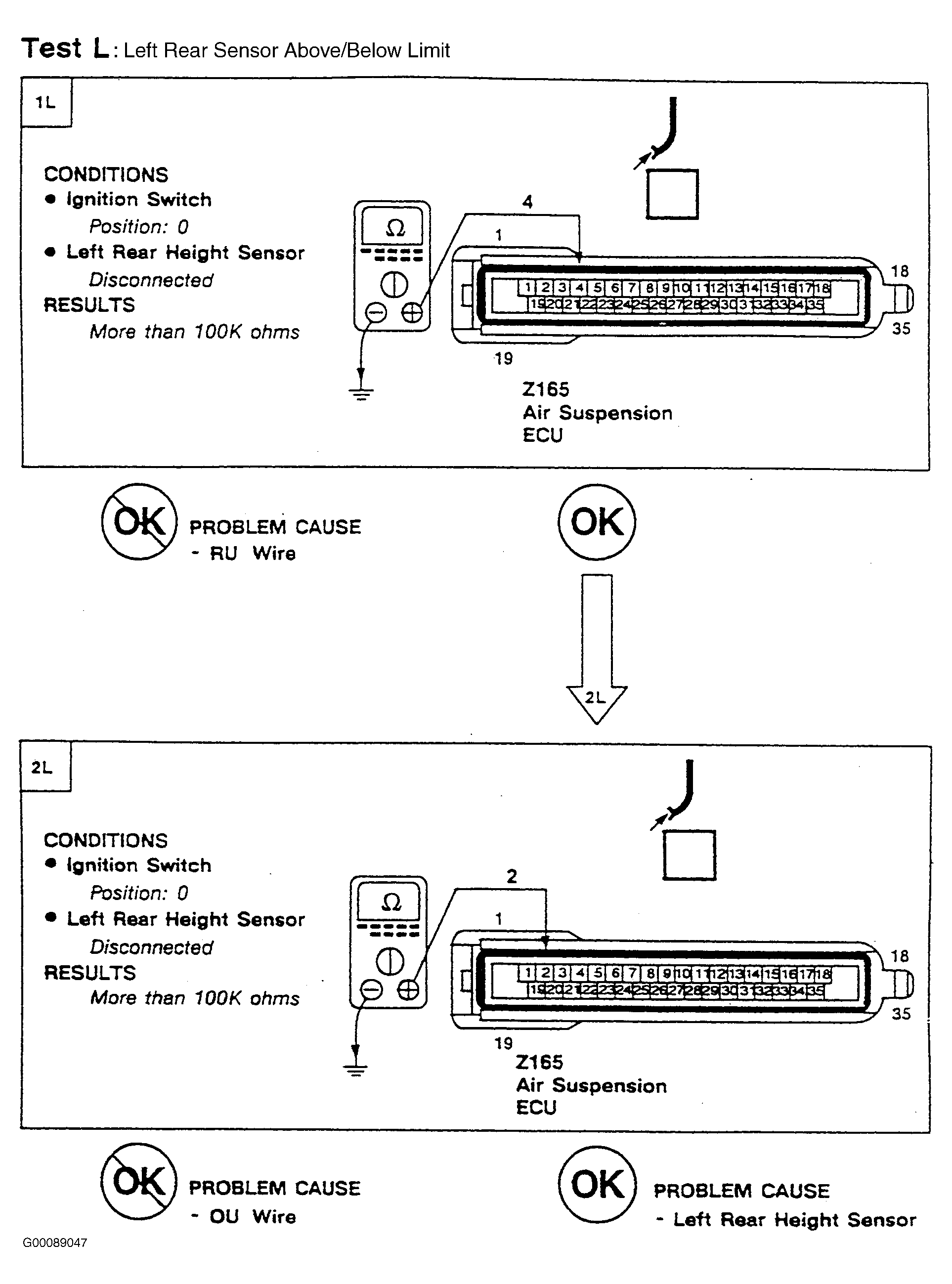

Fig 1: Test L: Left Rear Sensor Above/Below Limit
G00089047Courtesy of LAND ROVER NORTH AMERICA, INC.
