Test K: Left Rear Sensor Above/Below Limit

Perform TEST K only if directed from TEST J.

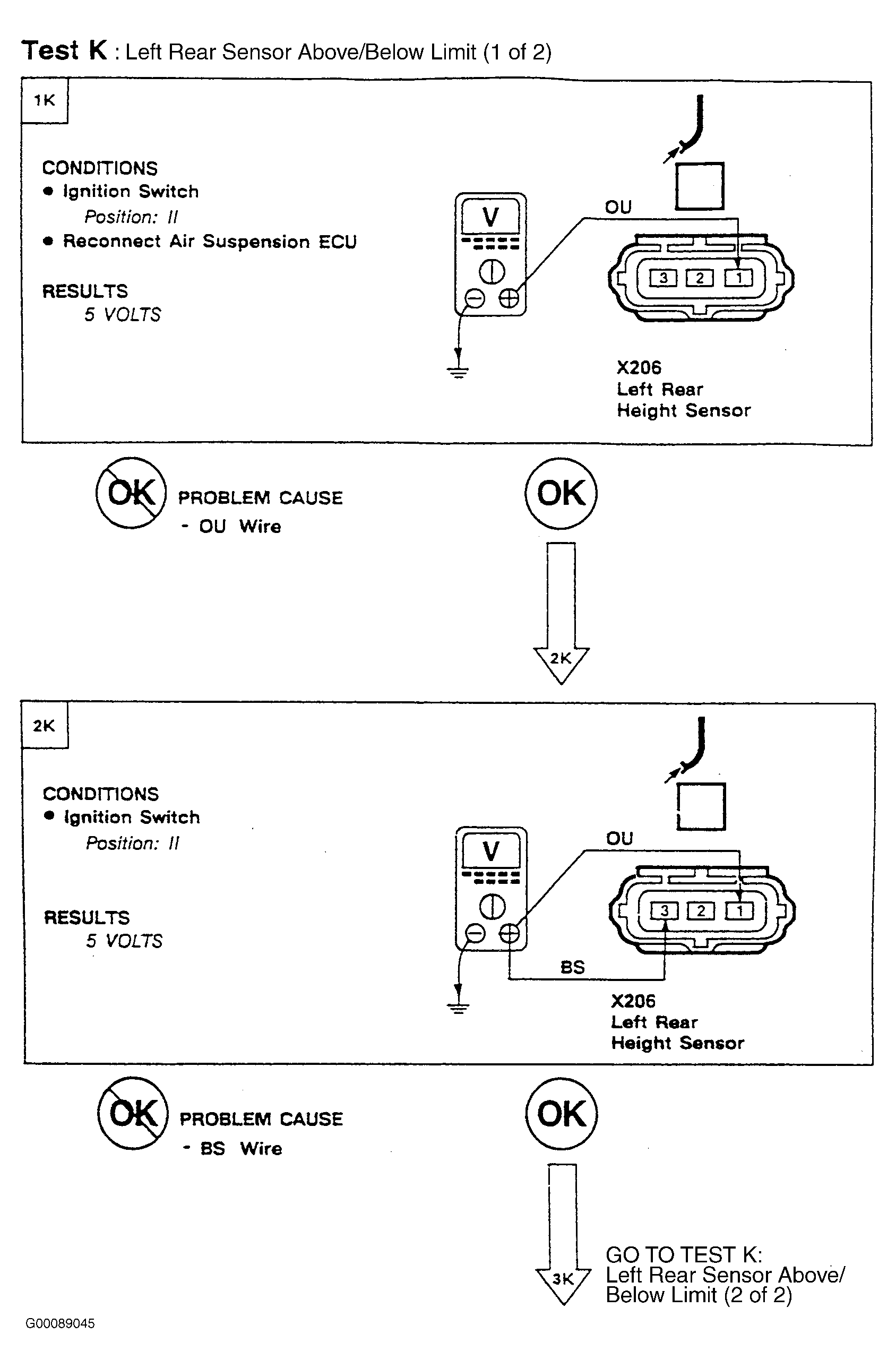

Fig 1: Test K: Left Rear Sensor Above/Below Limit (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

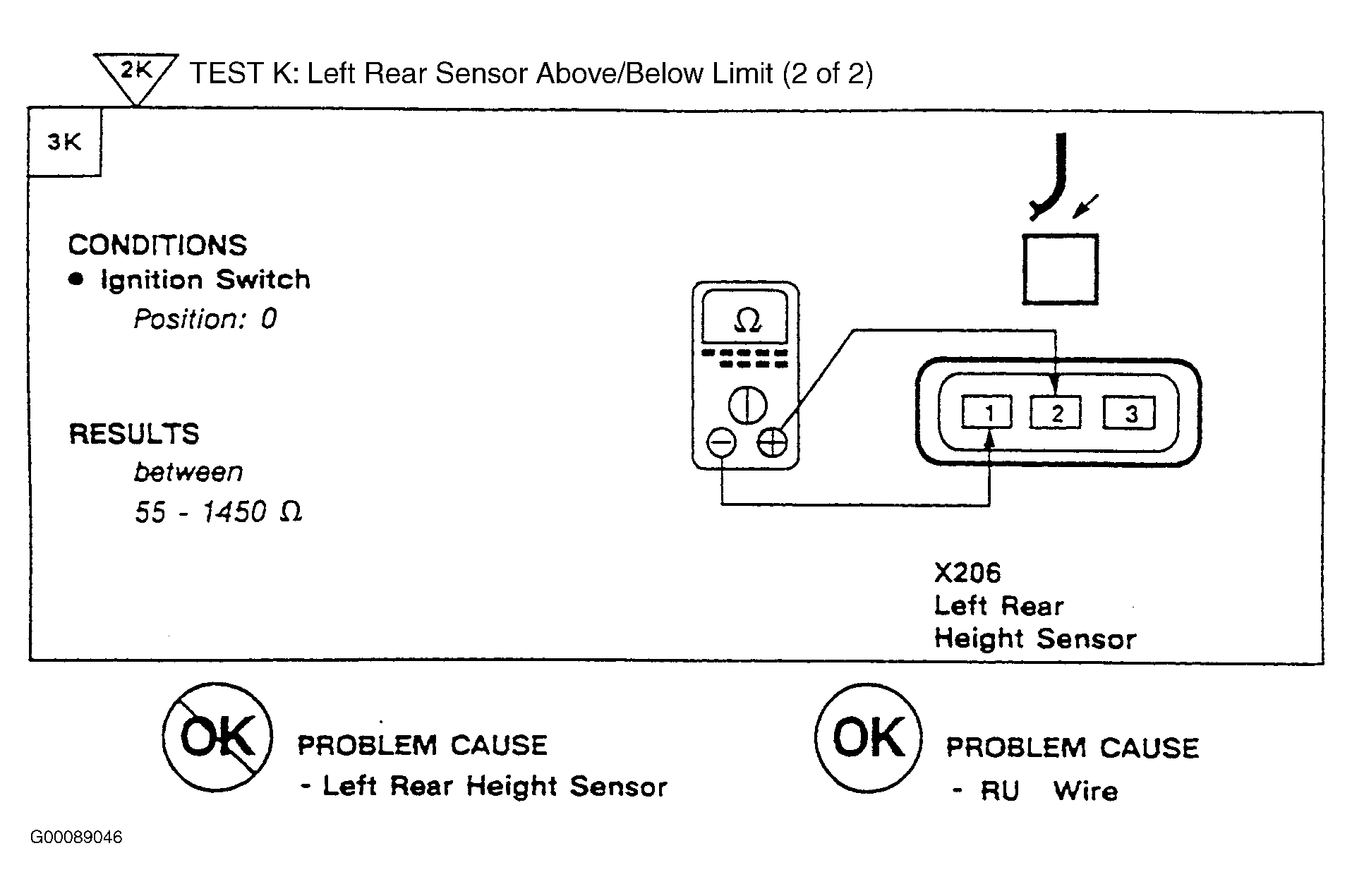

Fig 2: Test K: Left Rear Sensor Above/Below Limit (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
