Test I: Right Rear Sensor Above/Below Limit

Perform TEST I only if directed from TEST G.

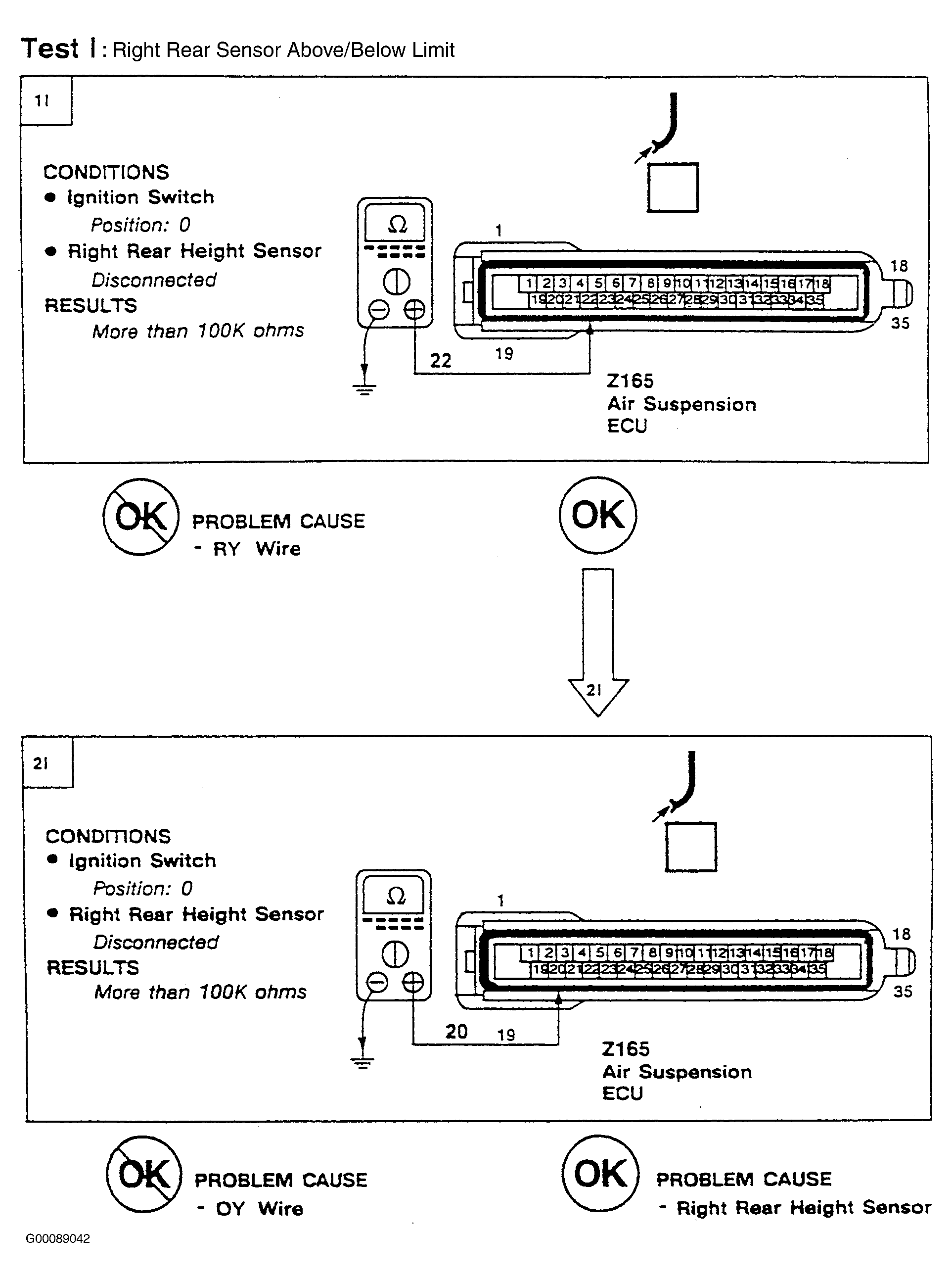

Fig 1: Test I: Right Rear Sensor Above/Below Limit

G00089042

Courtesy of LAND ROVER NORTH AMERICA, INC.
