Test H: Right Rear Sensor Above/Below Limit

Perform TEST H only if directed from TEST G.

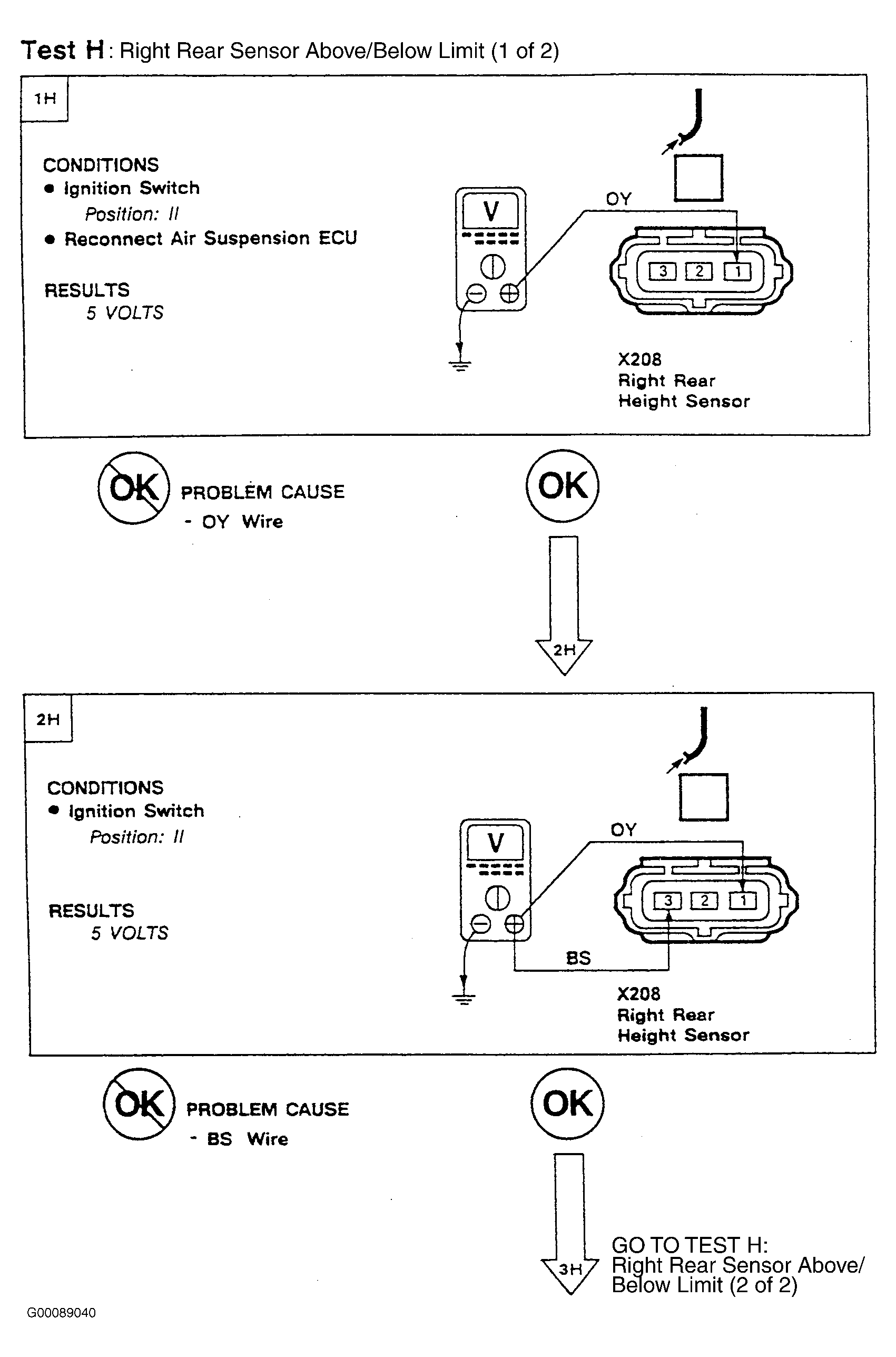

Fig 1: Test H: Right Rear Sensor Above/Below Limit (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

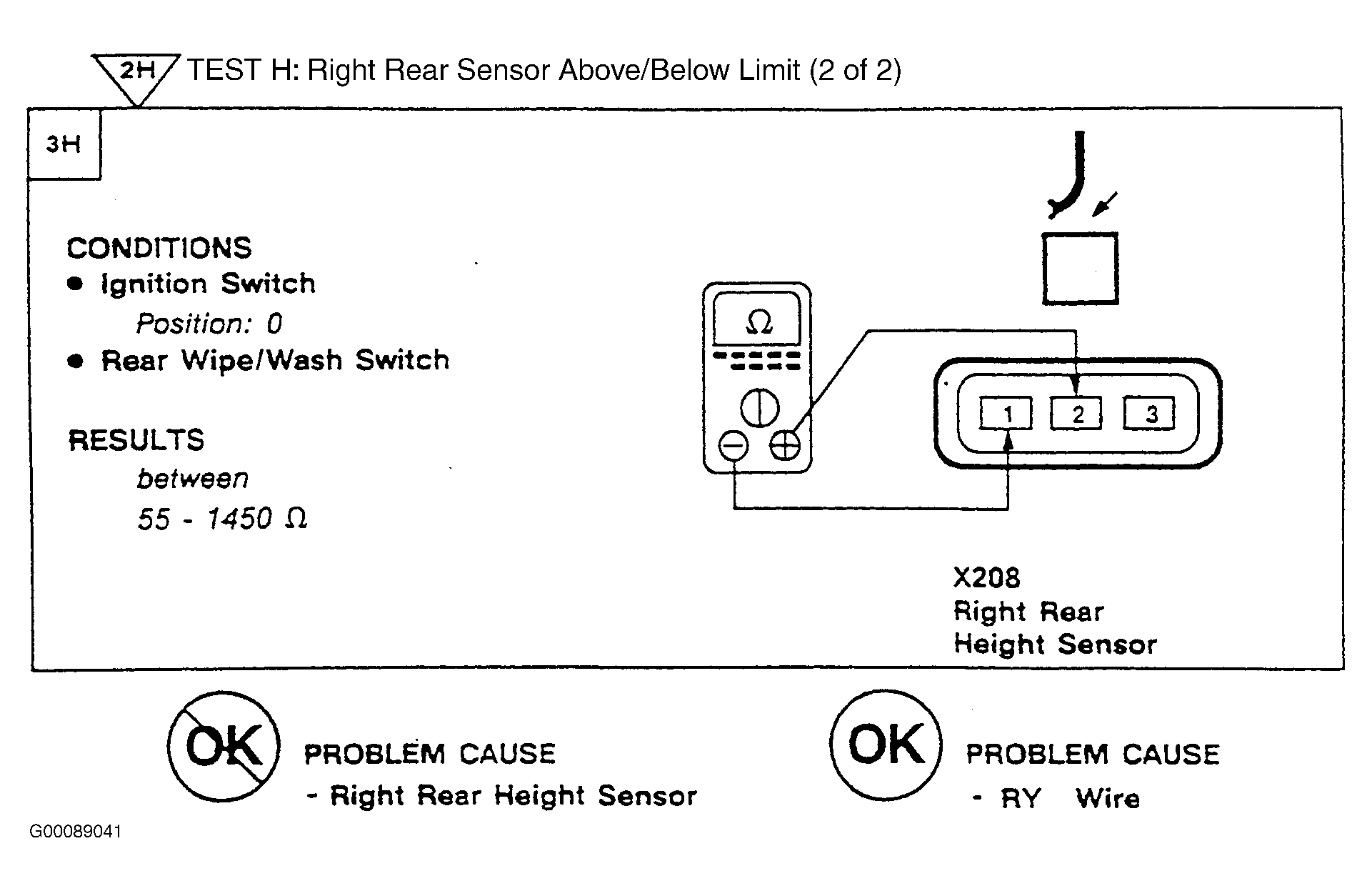

Fig 2: Test H: Right Rear Sensor Above/Below Limit (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
