Test G: Right Rear Sensor Above/Below Limit

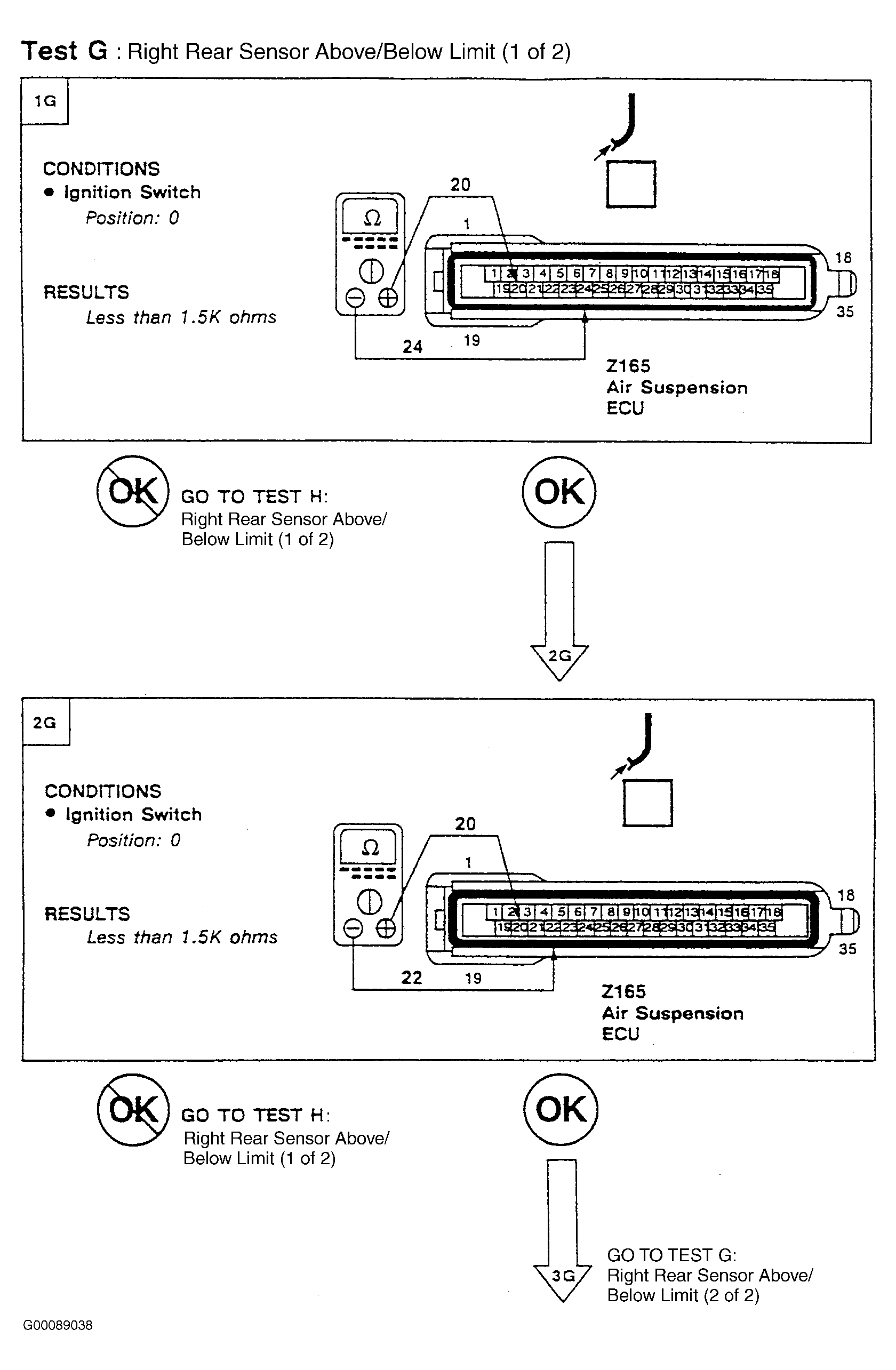

Fig 1: Test G: Right Rear Sensor Above/Below Limit (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

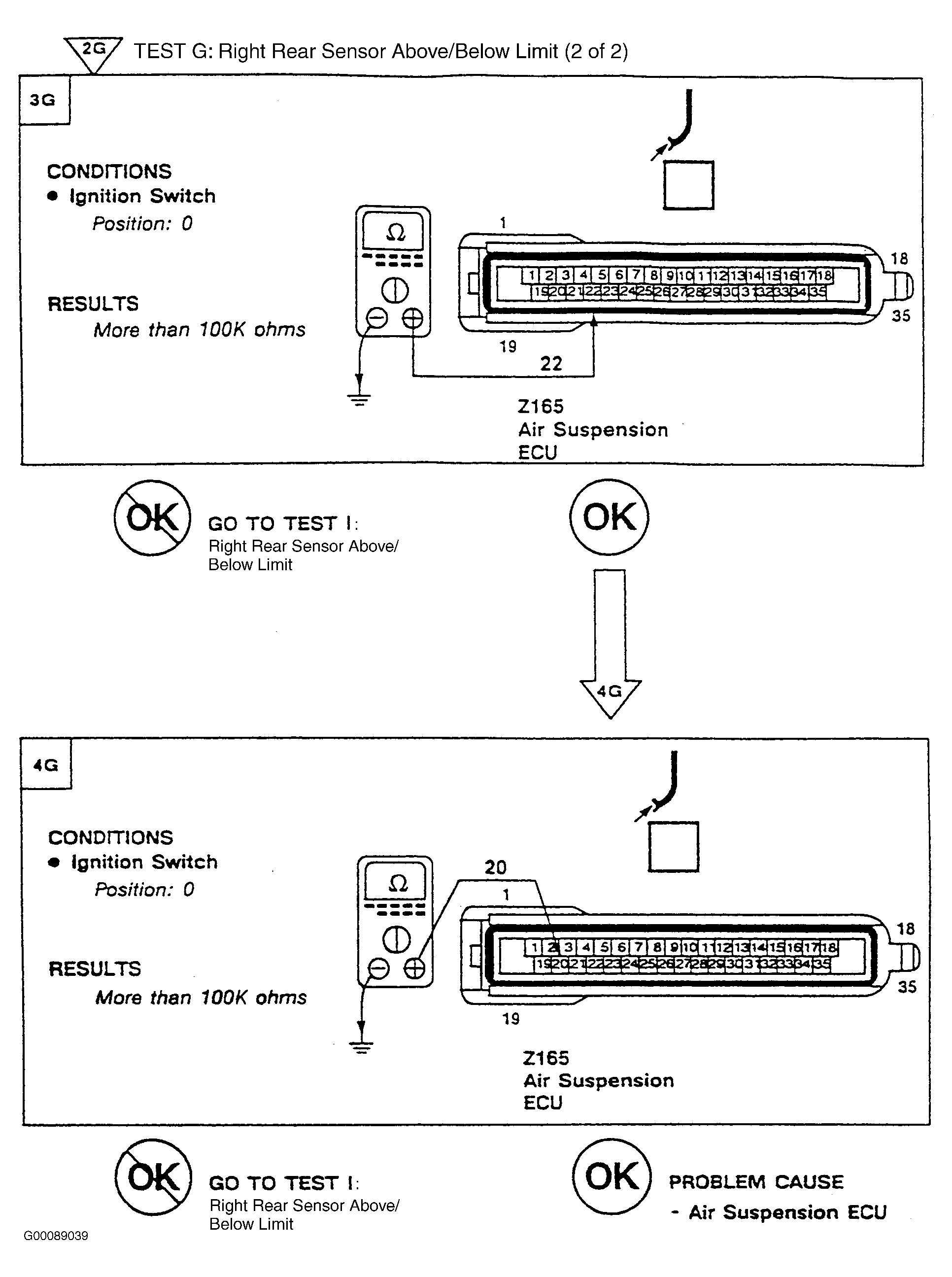

Fig 2: Test G: Right Rear Sensor Above/Below Limit (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
