Test F: Left Front Sensor Above/Below Limit

Perform TEST F only if directed from TEST D.

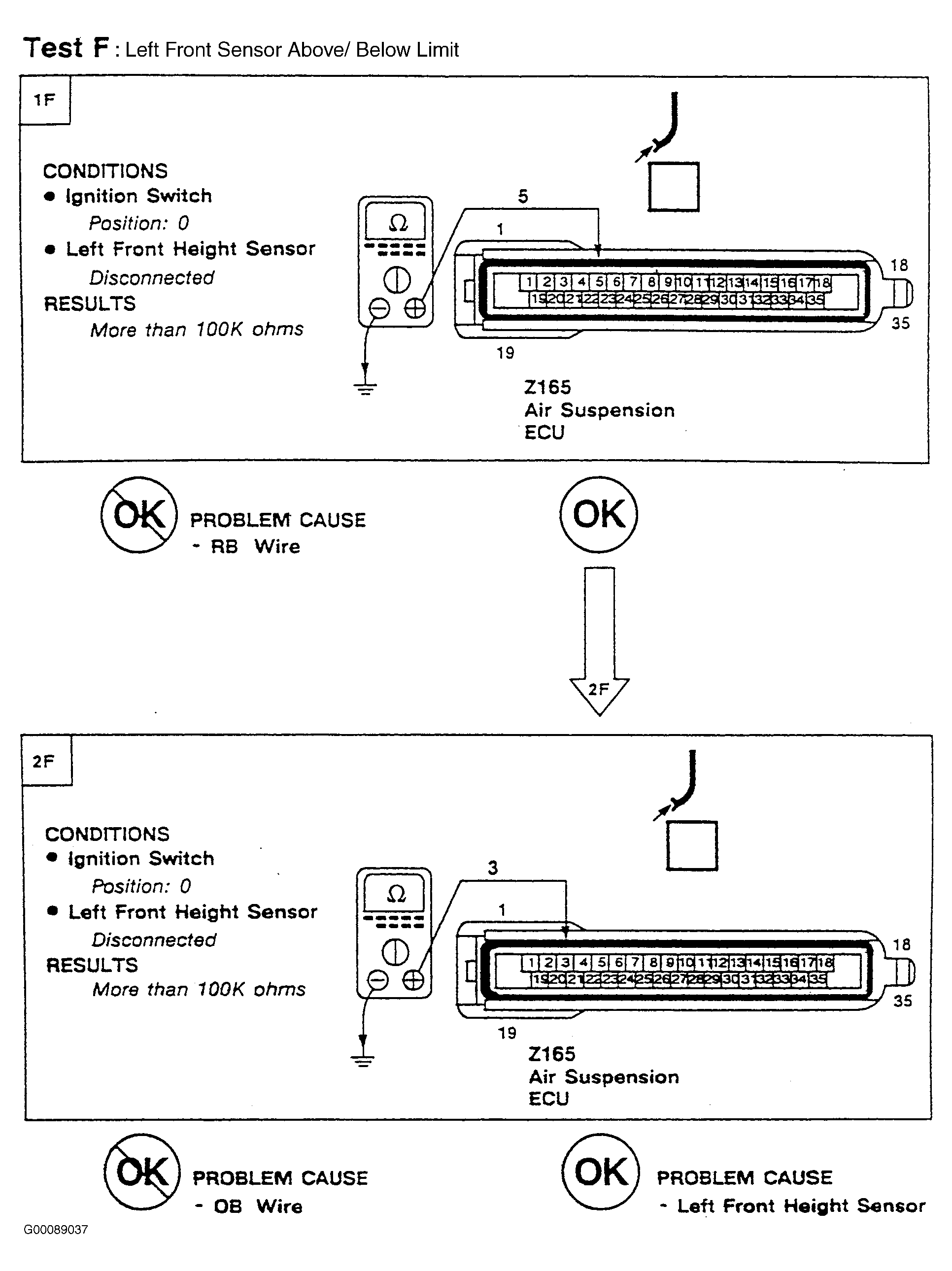

Fig 1: Test F: Left Front Sensor Above/Below Limit

G00089037

Courtesy of LAND ROVER NORTH AMERICA, INC.
