Test E: Left Front Sensor Above/Below Limit

Perform TEST E only if directed from TEST D.

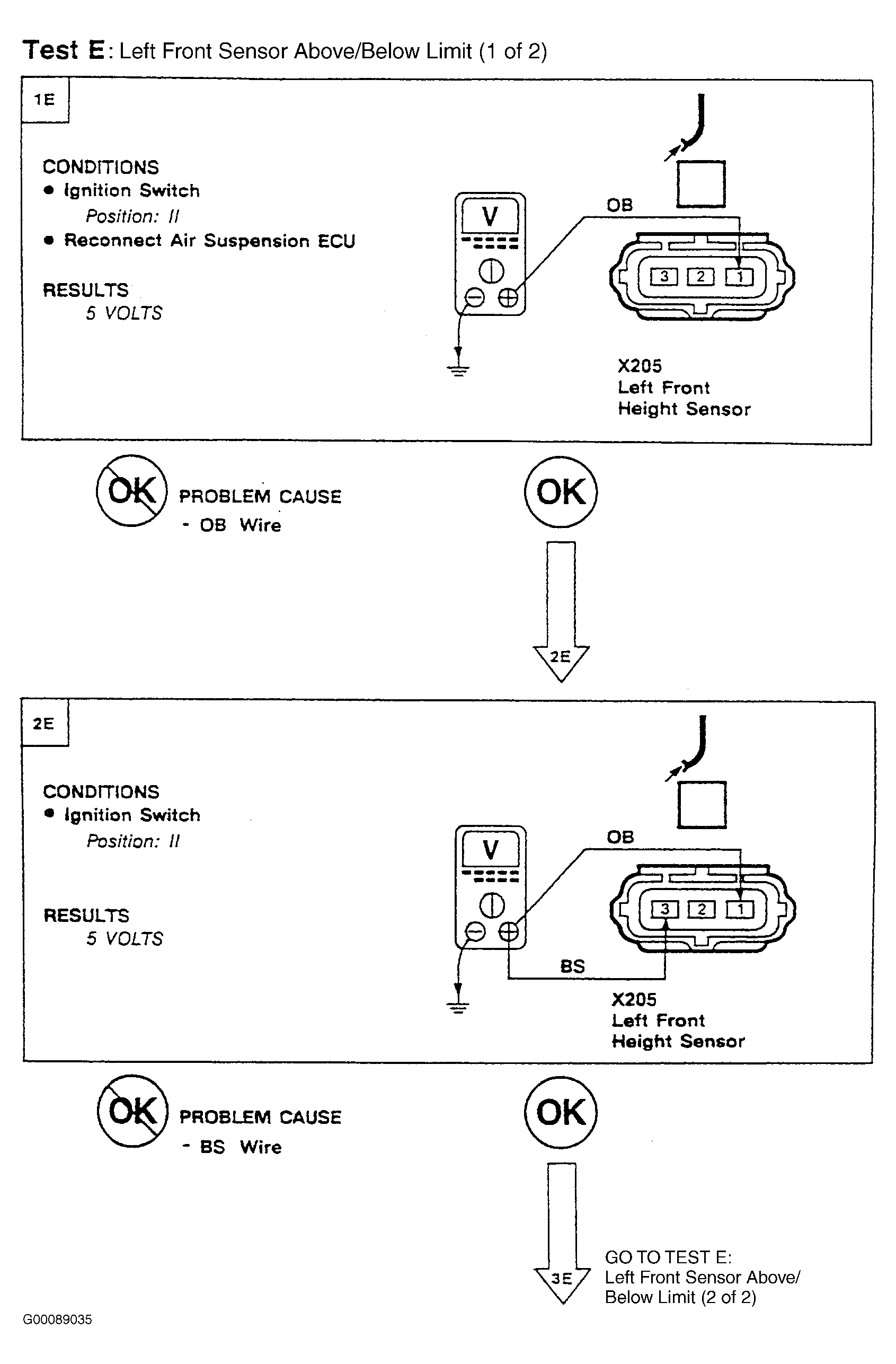

Fig 1: Test E: Left Front Sensor Above/Below Limit (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

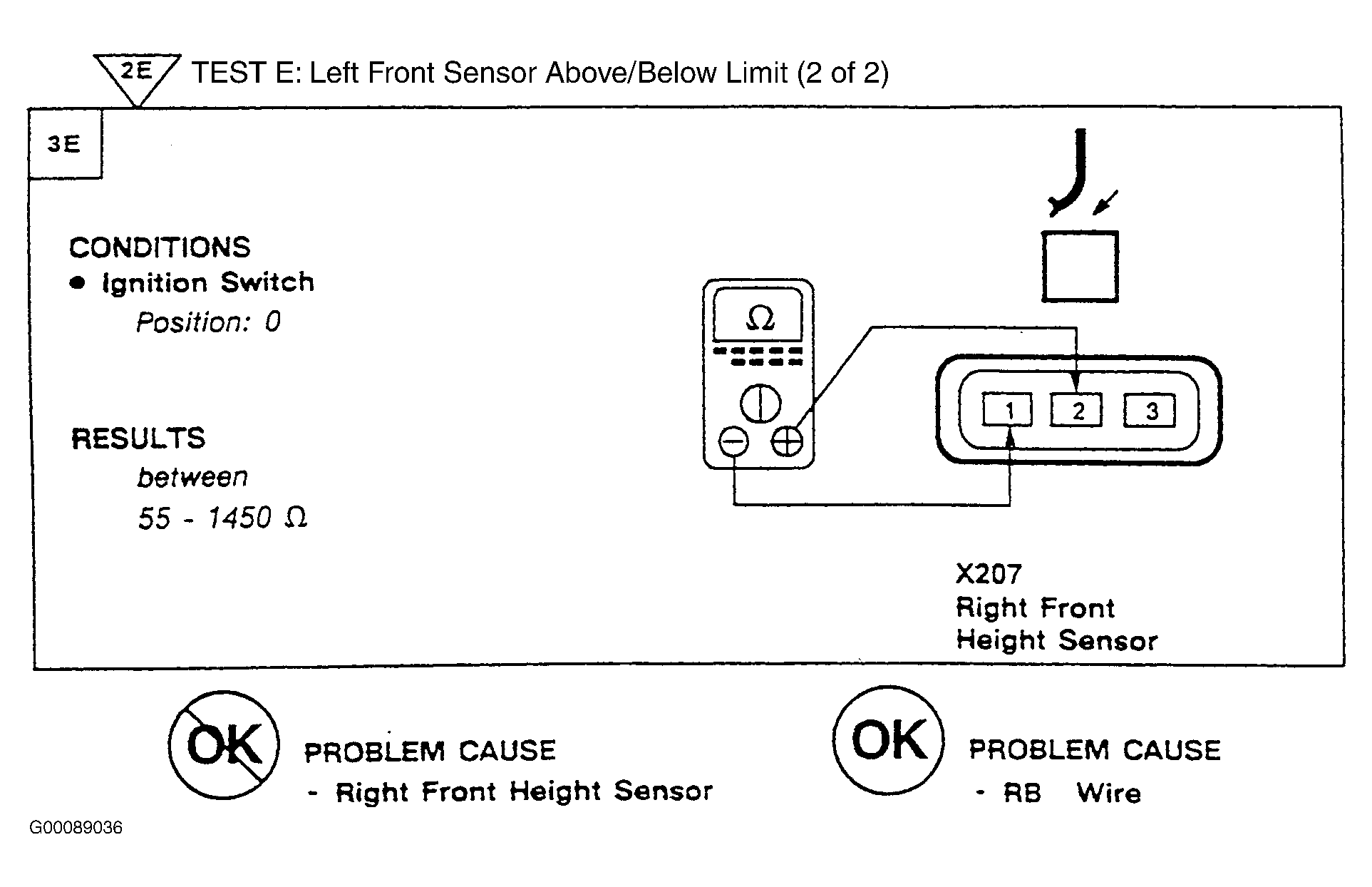

Fig 2: Test E: Left Front Sensor Above/Below Limit (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
