Test C: Right Front Sensor Above/Below Limit

Perform TEST C only if directed from TEST A.

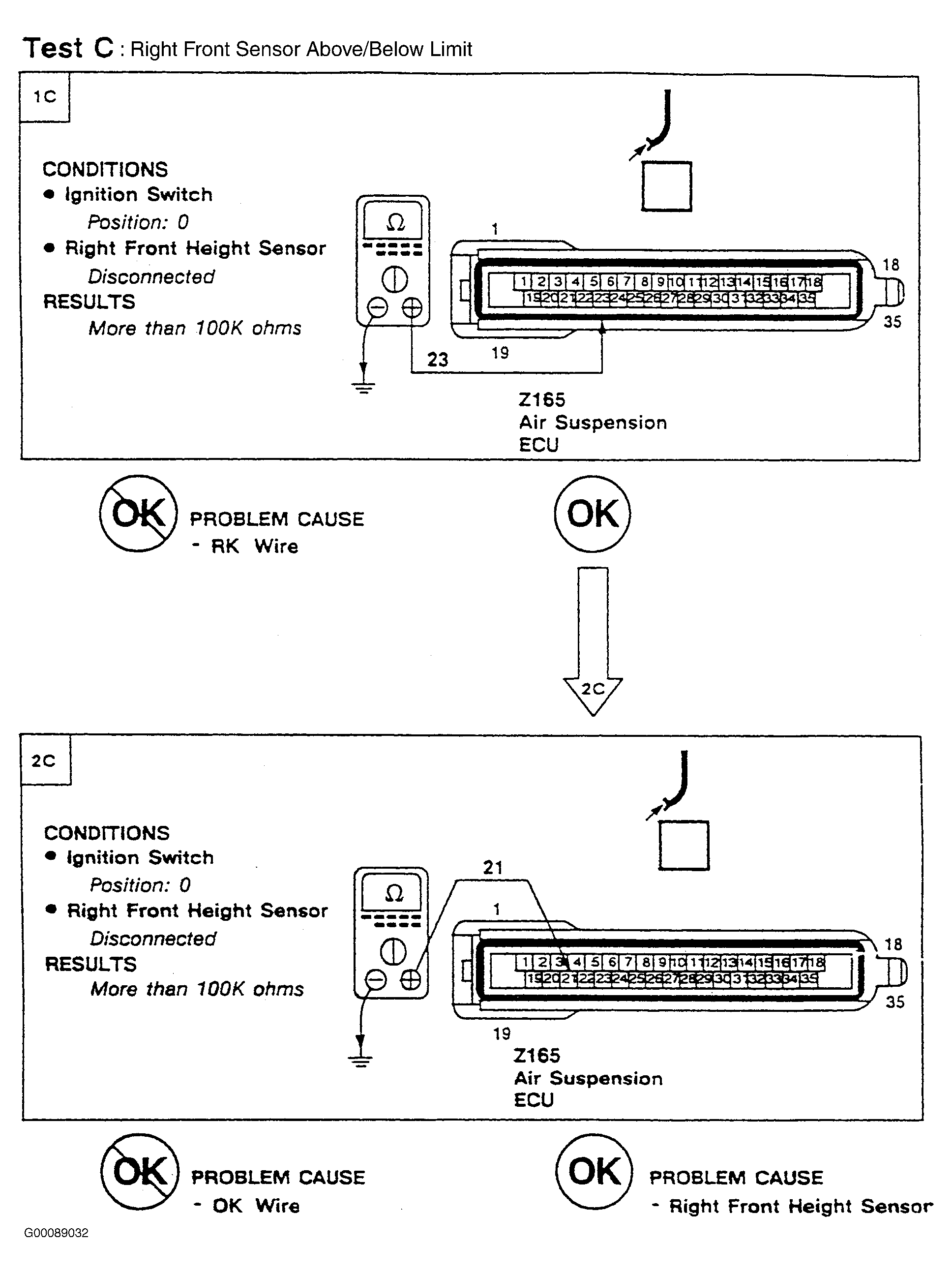

Fig 1: Test C: Right Front Sensor Above/Below Limit

G00089032

Courtesy of LAND ROVER NORTH AMERICA, INC.
