Test B: Right Front Sensor Above/Below Limit

Perform TEST B only if directed from TEST A.

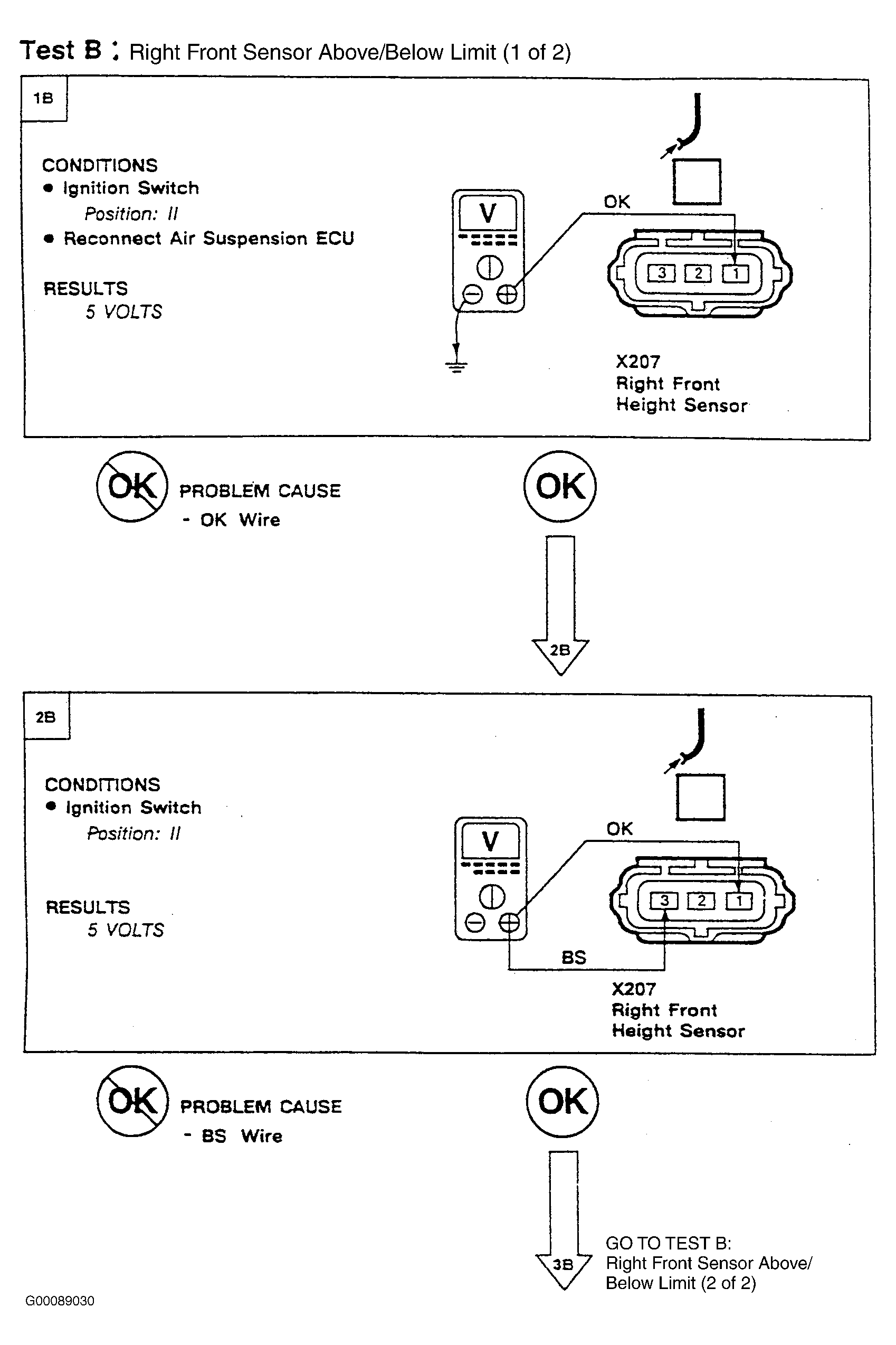

Fig 1: Test B: Right Front Sensor Above/Below Limit (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

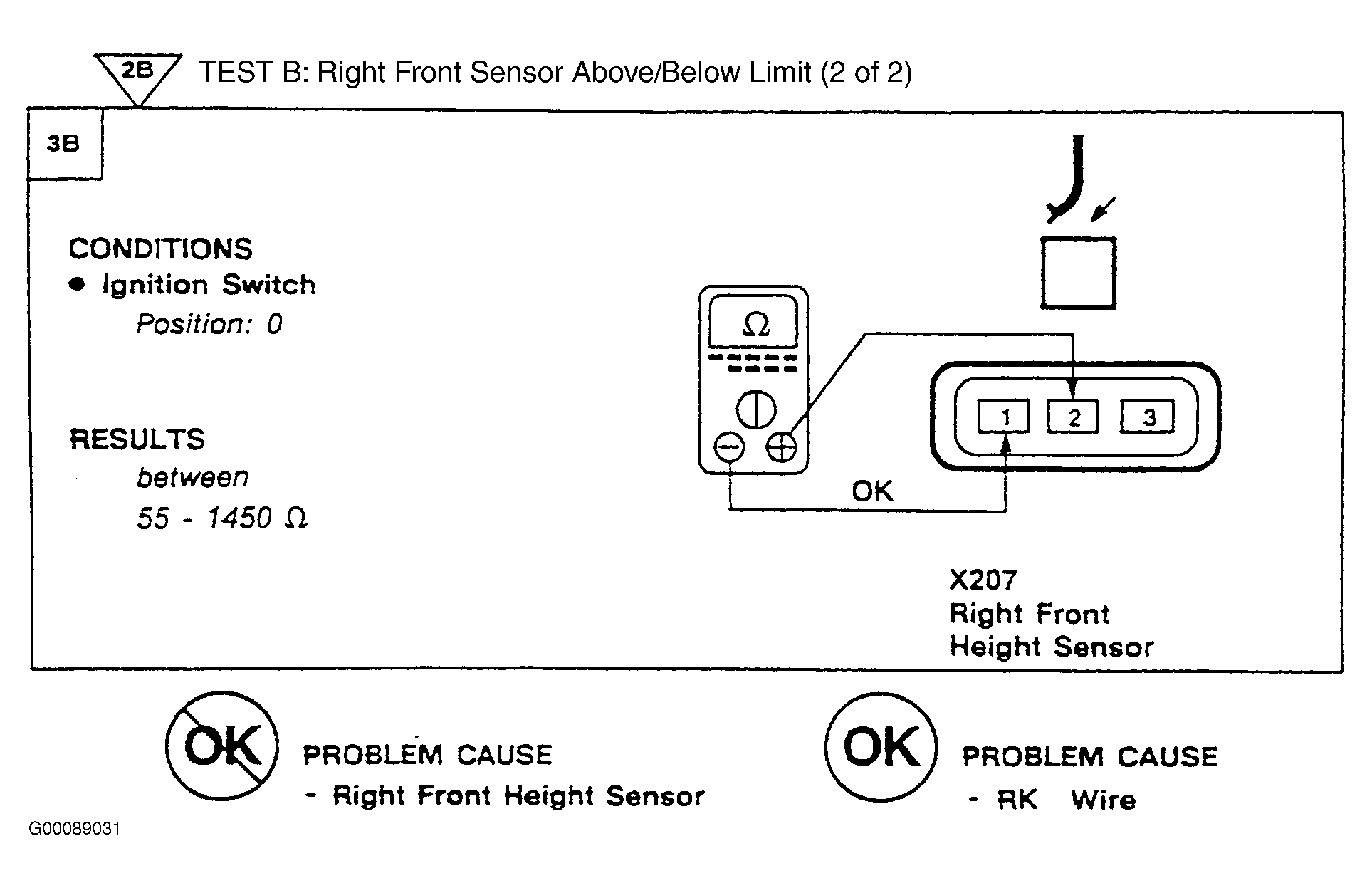

Fig 2: Test B: Right Front Sensor Above/Below Limit (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
