Disable Switch

The disable switch is mounted under right front seat. See Fig 1 . The switch has no markings. In DISABLE position, bottom of switch is pushed in. It is used to disable system when vehicle is being delivered, or when working on system after depressurizing. The switch disables system at speeds below 35 mph (56 kph).

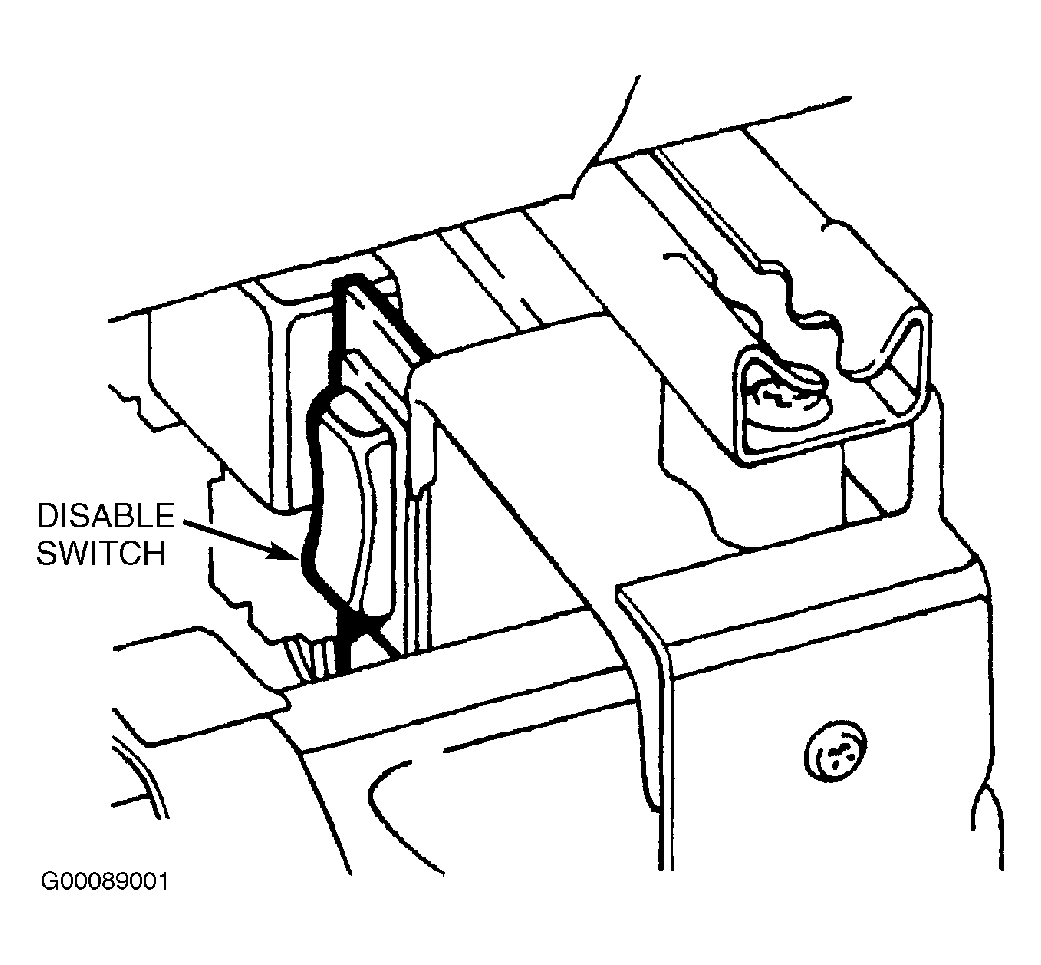

Fig 1: Locating Disable Switch
G00089001Courtesy of LAND ROVER NORTH AMERICA, INC.
