Electronic Air Suspension - 3.9L & 4.2L
>>
Connector Identification
Connector Identification

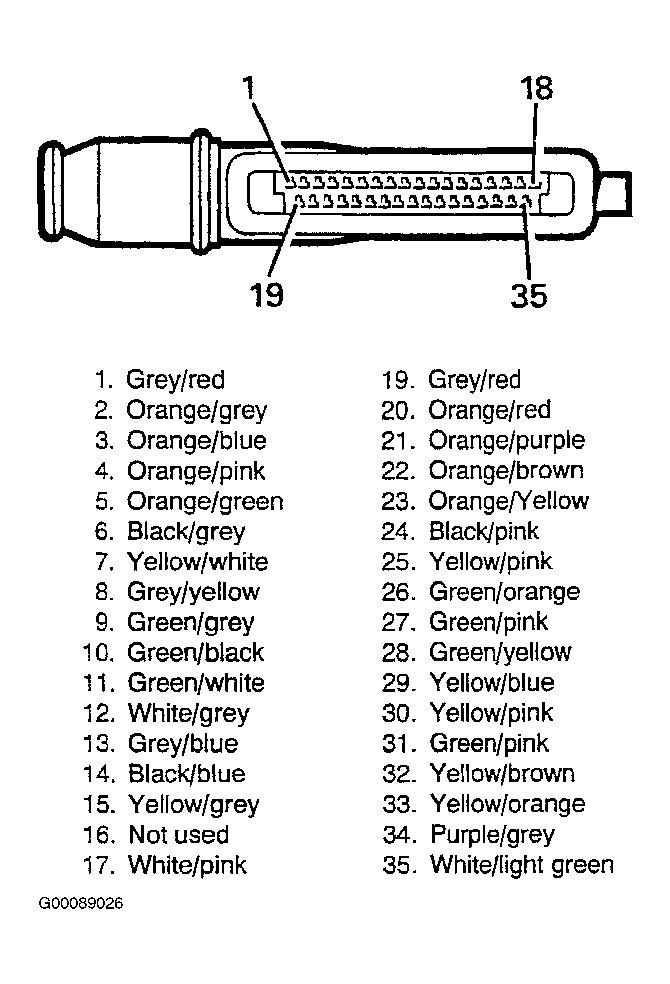

Fig 1: Identifying ECU Harness Connector Terminal
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
