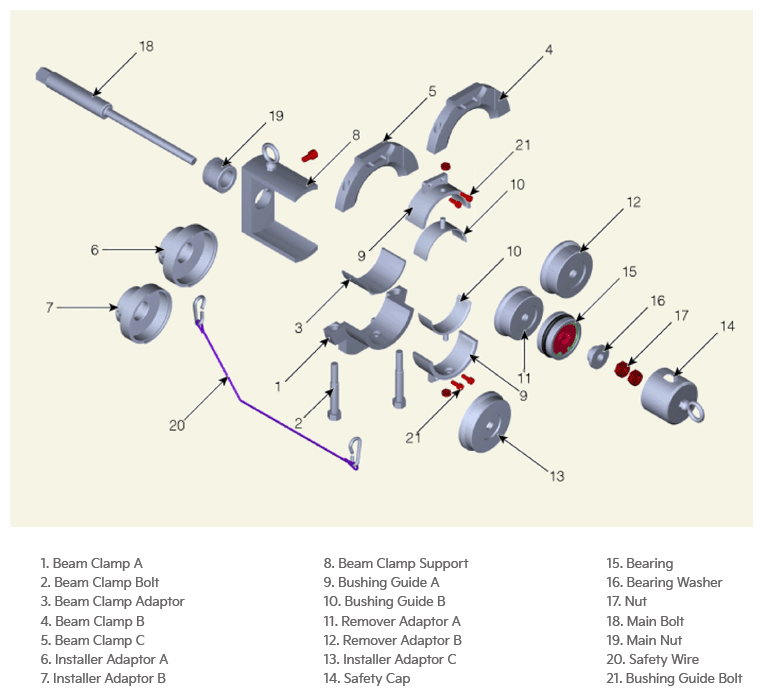

SST List

* Refer to the table below for the SST numbers used in the replacement procedure.

Courtesy of KIA MOTORS AMERICA, INC.

1. Remove the rear torsion beam axle.

   (Refer to Rear Suspension System - "REAR TORSION BEAM AXLE ")

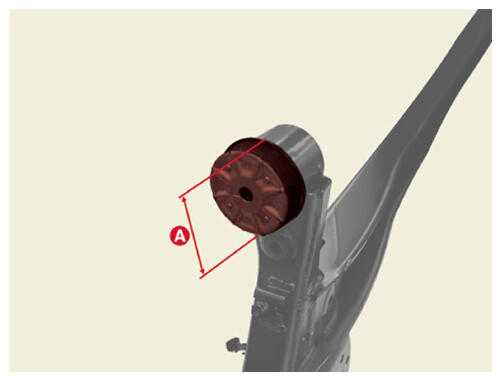

2. Measure the outer diameter (A) of the CTBA bushing.

   Courtesy of KIA MOTORS AMERICA, INC.

3. Refer to the following table and prepare the SST according to the size of the bushing outer diameter.

   Information

   Type 1:  78.0 mm (3.0708 in.)

   Type 2:  84 mm (3.3070 in.)

   Type	Outer Diameter	SST
   Type 1	78 mm (3.0708 in.)	1, 3, 5, 7, 8, 11, 13, 14, 15, 16, 17, 18, 19, 20
   Type 2	84 mm (3.3070 in.)	1, 4, 6, 8, 11, 13, 14, 15, 16, 17, 18, 19, 20

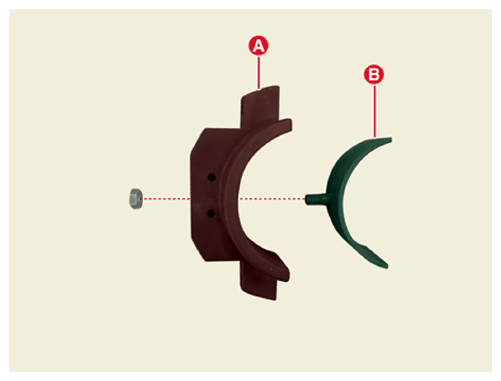

4. Install the SST [3] (B) to the SST [1] (A) by tightening the nut. [Type 1 Only]

   Courtesy of KIA MOTORS AMERICA, INC.

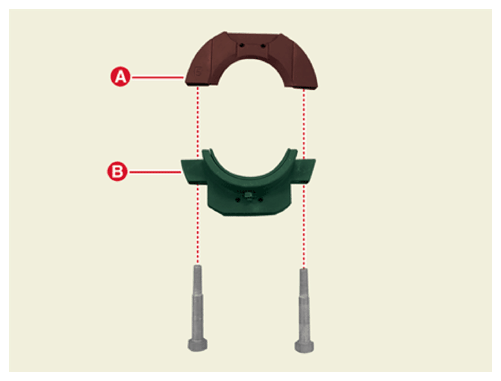

5. Pre-install the SST [1] (B) to the SST [5 or 4] (A) by tightening the bolts [2].

   Type 1:  SST [5]

   Type 2:  SST [4]

   Courtesy of KIA MOTORS AMERICA, INC.

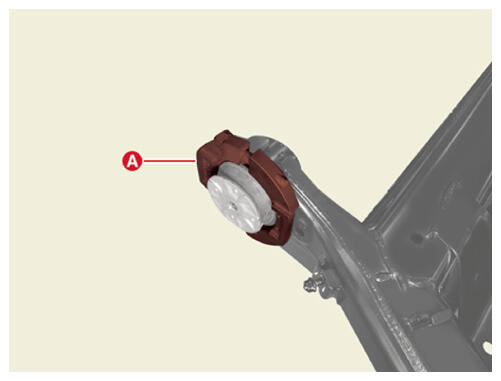

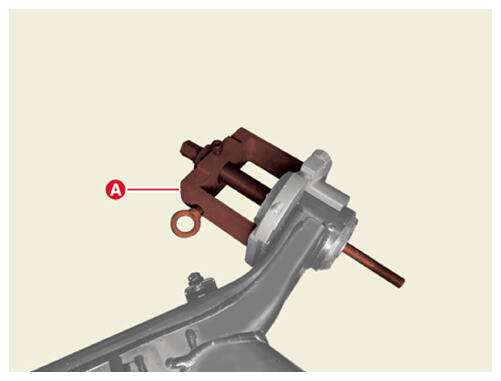

6. Install the SST [5 or 4 + 1] (A) to the outside of the bushing.

   Type 1:  SST [5, 1]

   Type 2:  SST [4, 1]

   Courtesy of KIA MOTORS AMERICA, INC.

7. Install SST [8, 19, 18] (A) to SST [5 or 4 + 1] by passing through the bushing inner diameter.

   Type 1:  SST [5, 1]

   Type 2:  SST [4, 1]

   Courtesy of KIA MOTORS AMERICA, INC.

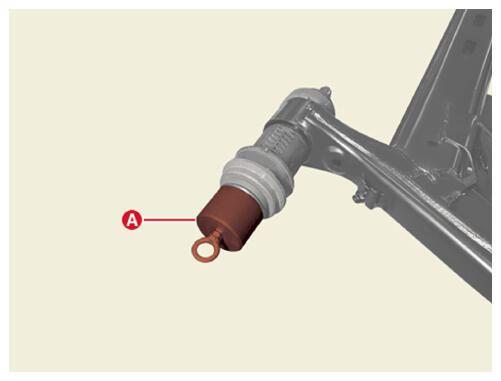

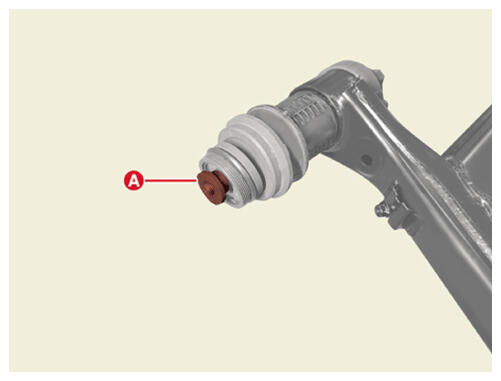

8. Install the SST [11] (A) to the SST [18].

   Courtesy of KIA MOTORS AMERICA, INC.

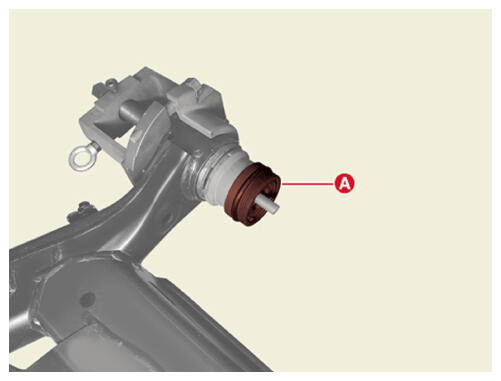

9. Install the SST [15] (A) to the SST [18].

   Courtesy of KIA MOTORS AMERICA, INC.

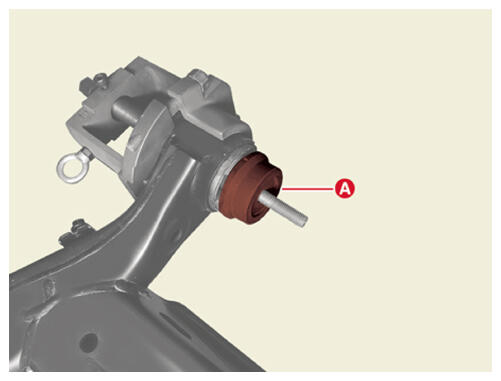

10. Install the SST [16] (A) to the SST [18].

    Courtesy of KIA MOTORS AMERICA, INC.

11. Install the 2 SST [17] (A) to the SST [18].

    Tightening torque:  49.0 N.m (5.0 kgf.m, 36.2 lb.ft)

    Courtesy of KIA MOTORS AMERICA, INC.

    NOTE: The end of SST [17] (A) and SST [18] should be aligned in straight line.

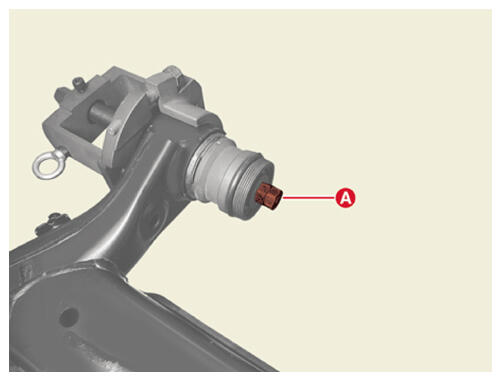

12. Install the SST [14] (A).

    Courtesy of KIA MOTORS AMERICA, INC.

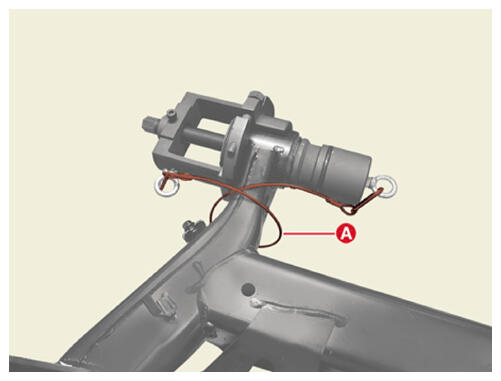

13. Install the SST [20] (A) to the 2 hooks as shown as below.

    Courtesy of KIA MOTORS AMERICA, INC.

    CAUTION: If the SST [20] is not installed properly, injury may occur.

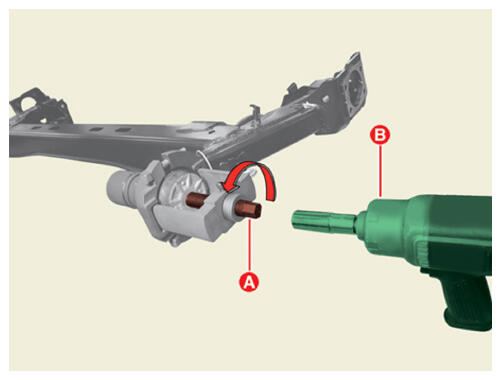

14. Rotate the bolt (A) counter clockwise using an impact wrench (B) to remove the bushing.

    Courtesy of KIA MOTORS AMERICA, INC.

15. Remove the SST [20] (A).

    Courtesy of KIA MOTORS AMERICA, INC.

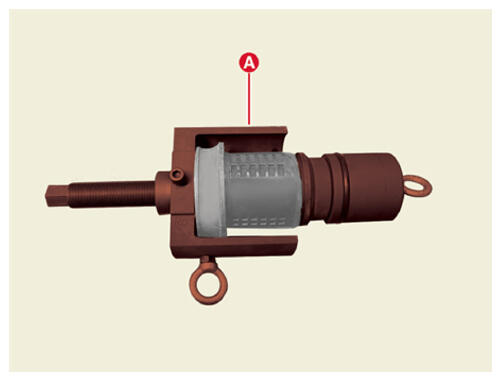

16. Remove the SST [1, 4 or 5, 8, 18, 19] (A) from the bushing.

    Remove the SST [1, 4 or 5, 8, 18, 19] (A) from the bushing.

    Type 1:  SST [5]

    Type 2:  SST [4]

    Courtesy of KIA MOTORS AMERICA, INC.

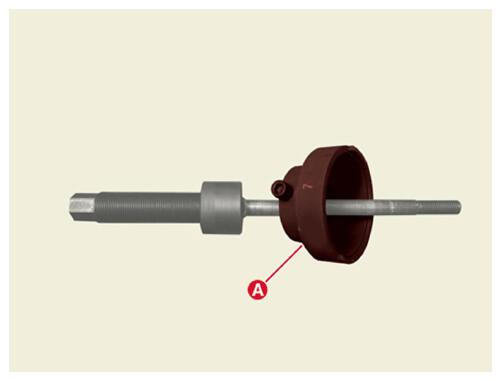

17. Install the SST [6 or 7] (A) to the SST [18, 19].

    Type 1:  SST [7]

    Type 2:  SST [6]

    Courtesy of KIA MOTORS AMERICA, INC.

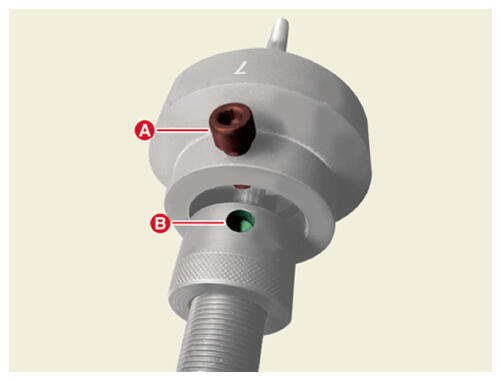

    NOTE: Install the SST [6 or 7] bolt (A) to the SST [19] hole (B).

    Courtesy of KIA MOTORS AMERICA, INC.

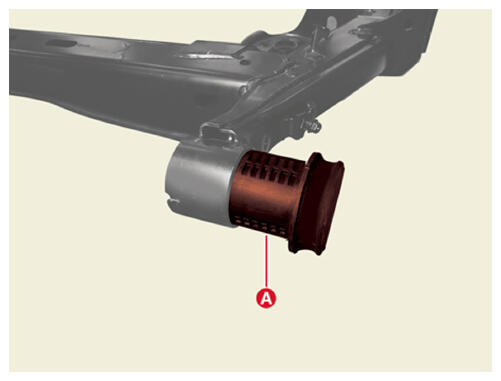

18. Install the new bushing (A) to the CTBA.

    Courtesy of KIA MOTORS AMERICA, INC.

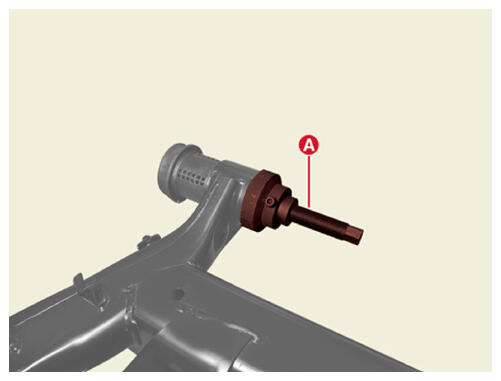

19. Install the SST [7, 18] (A) by passing through the bushing inner diameter.

    Courtesy of KIA MOTORS AMERICA, INC.

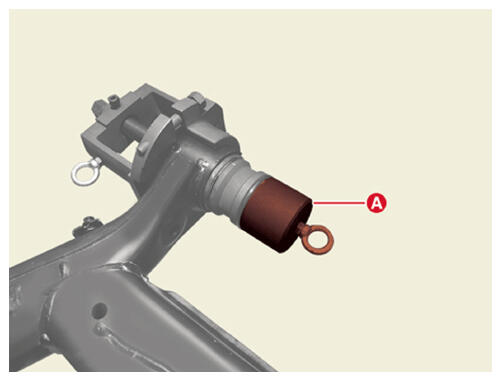

20. Install the SST [13] (A) to the SST [18].

    Courtesy of KIA MOTORS AMERICA, INC.

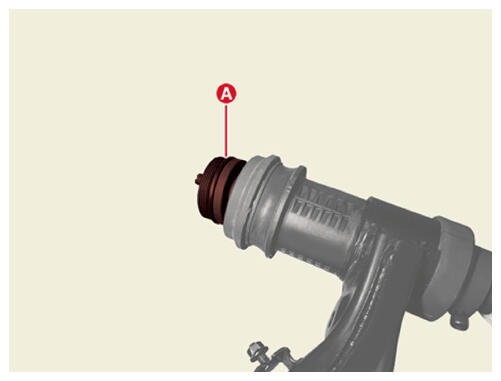

21. Install the SST [15] (A) to the SST [18].

    Courtesy of KIA MOTORS AMERICA, INC.

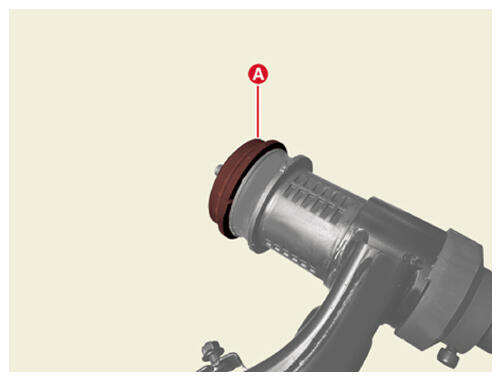

22. Install the SST [16] (A) to the SST [18].

    Courtesy of KIA MOTORS AMERICA, INC.

23. Install the 2 SST [17] to the SST [18].

    Tightening torque:  49.049.049.049.0 N.m (5.0 kgf.m, 36.2 lb.ft)

    Courtesy of KIA MOTORS AMERICA, INC.

    The end of SST [17] (A) and SST [18] should be aligned in straight line.

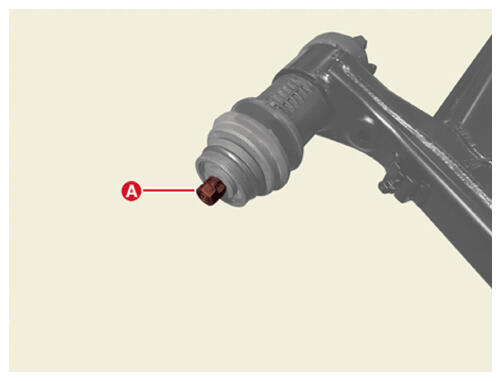

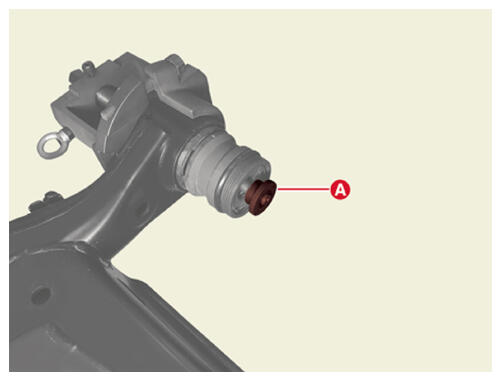

24. Install the SST [14] (A).

    Courtesy of KIA MOTORS AMERICA, INC.

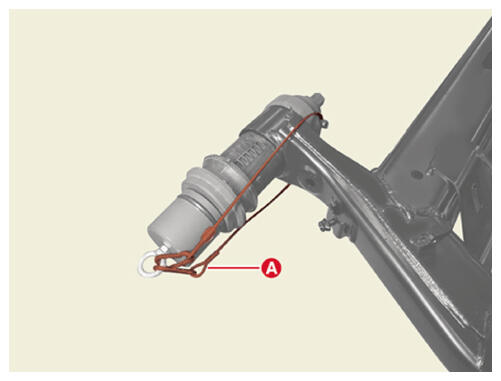

25. Install the SST [20] (A) to the 2 hooks as shown as below.

    Courtesy of KIA MOTORS AMERICA, INC.

    CAUTION: If the SST [20] is not installed properly, injury may occur.

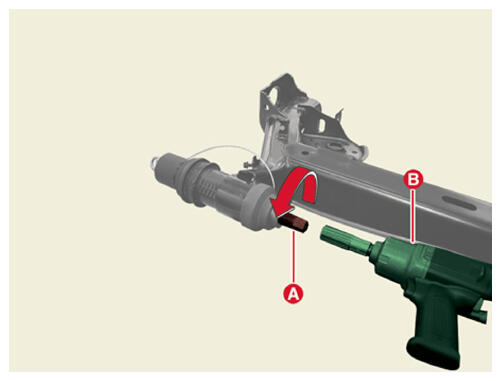

26. Install the new CTBA bushing by rotating the main bolt (A) counter clockwise using the impact wrench (B).

    Courtesy of KIA MOTORS AMERICA, INC.

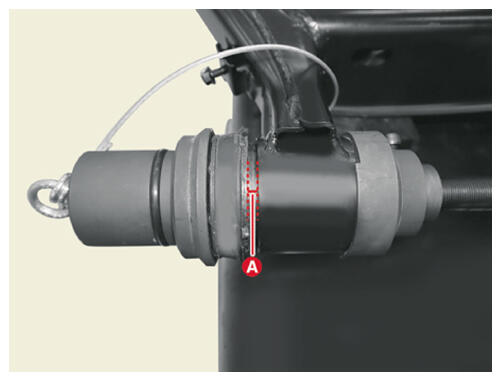

    NOTE: Install the bushing until there is no gap (A) between the bushing and CTBA.

    Courtesy of KIA MOTORS AMERICA, INC.
