Removal And Installation: Removal
- Remove the rear wheel and tires.
(Refer to Tires/Wheels - " WHEEL ")

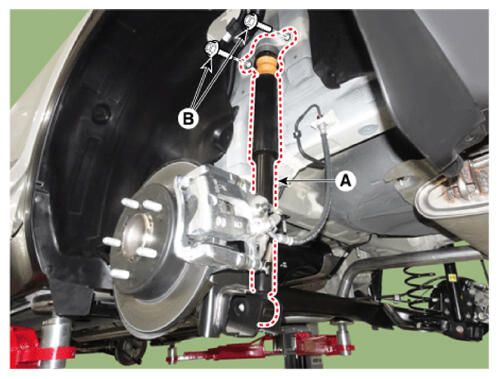

- Remove the rear shock absorber (A) after removing the bolts (B), and (C).
Tightening torque:
(B): 58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb.ft)

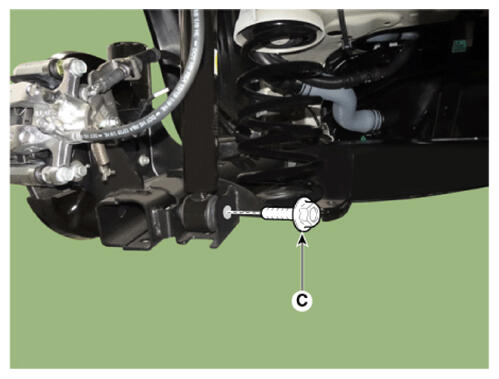

(C): 98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)
