Rear Shock Absorber: Inspection: Notes

  1. Check the rubber parts for damage or deterioration.
  2. Check all bolts and nuts.

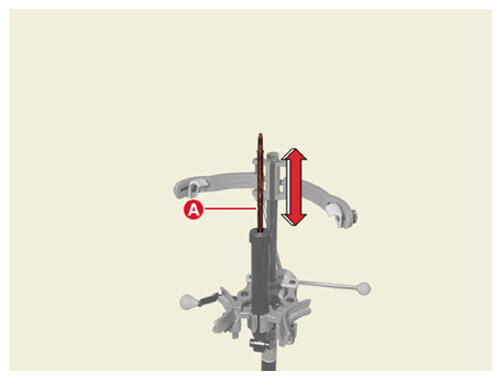

  3. Repeat compression and tension of the rear shock absorber rod (A) to check for abnormal resistance or noise between operations.
G16424630Courtesy of KIA MOTORS AMERICA, INC.
