Component And Component Location

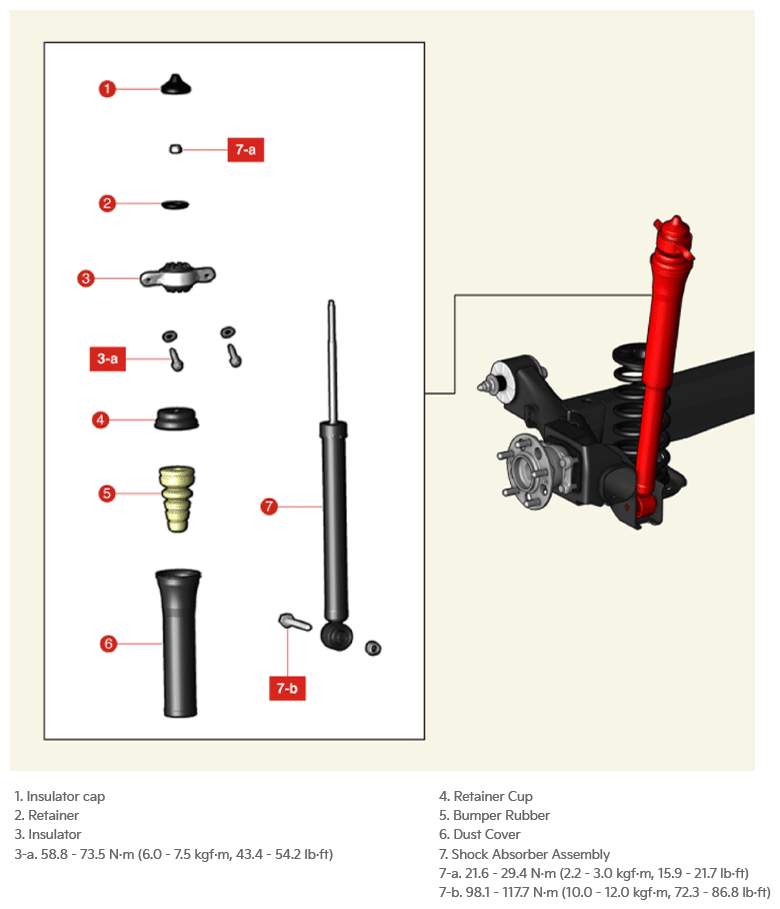

Fig 1: Rear Shock Absorber Components Location With Torque Specifications

G16424623

Courtesy of KIA MOTORS AMERICA, INC.
