Removal And Installation: Removal

Remove the rear wheel and tires.
(Refer to Tires/Wheels - " WHEEL ")

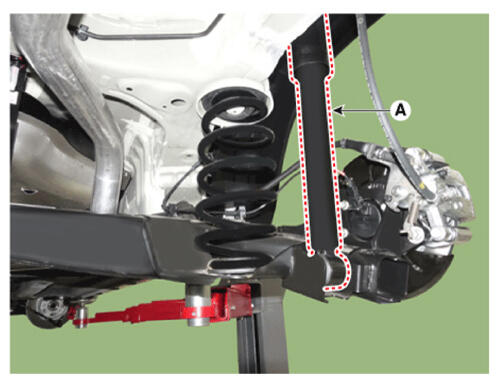

Separate the rear shock absorbers (A) after removing the bolts.
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

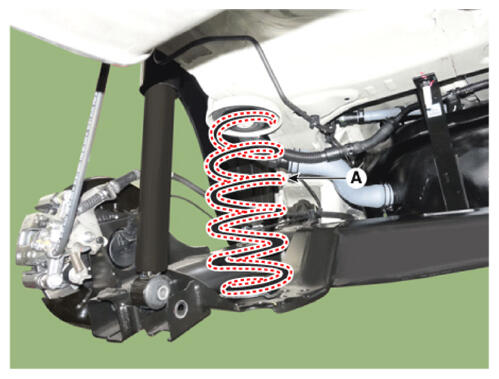

Remove the coil spring, coil spring upper pad, and lower pad (A).

Courtesy of KIA MOTORS AMERICA, INC.

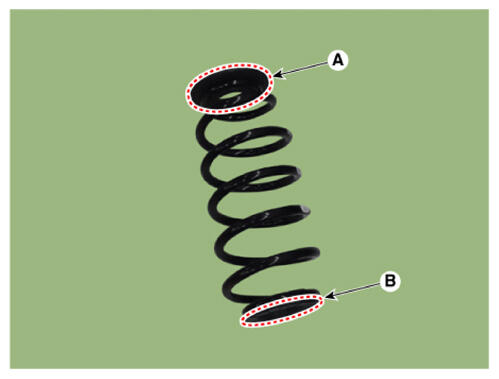

Remove the coil spring upper pad (A), and lower pad (B).
