Components And Components Location: Component

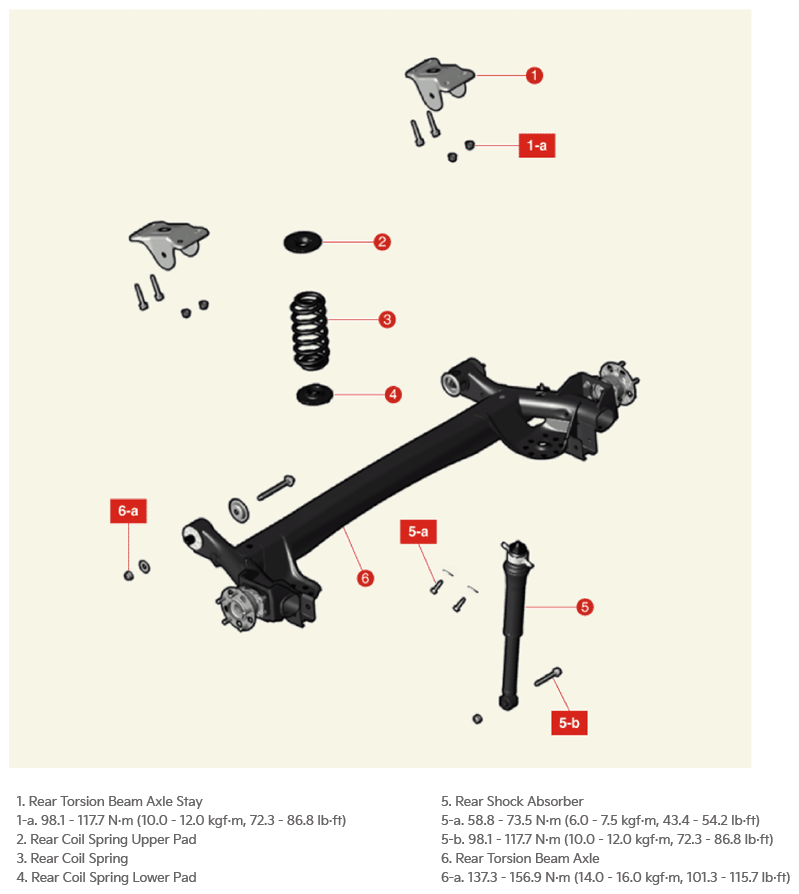

Fig 1: Rear Suspension System Components Location With Torque Specifications - Coupled Torsion Beam Axle

G16424622

Courtesy of KIA MOTORS AMERICA, INC.
