Removal And Installation: Installation

  1. Install in reverse order of removal.
NOTE:
  • Install the turbo manifold to the specified torque.
  • When install the turbo manifold module, attach the nut in the sequence shown below and tighten it completely with the torque prescribed.

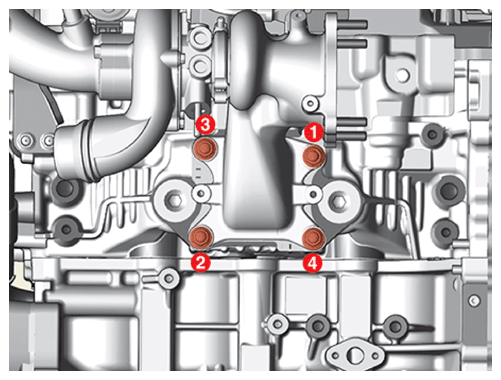

Fig 1: Turbo Manifold Module And Exhaust Manifold Nuts Tightening Sequence
G16423262Courtesy of KIA MOTORS AMERICA, INC.
