Removal And Installation: Disassembly

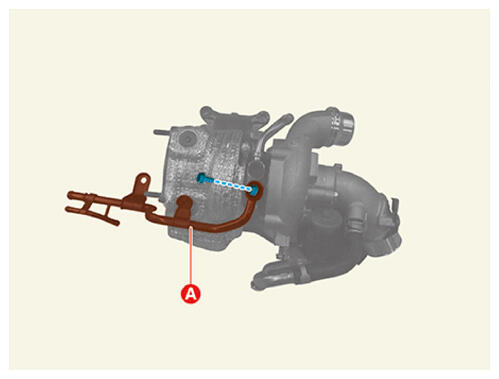

Remove the turbocharger outlet hose and water pipe (A) after removing the bolt.

Tightening torque:

34.3 - 39.2 N.m (3.5 - 4.0 kgf.m, 25.3 - 28.9 lb.ft)

G16423255

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

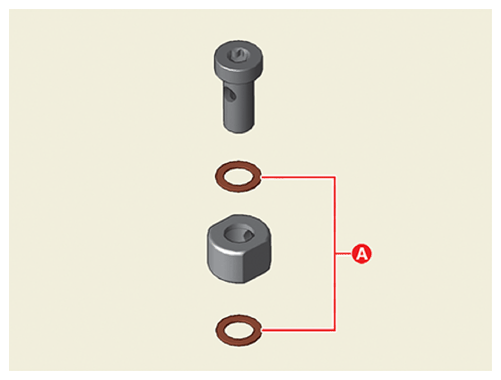

Do not reuse the copper washer (A).
When installing, make sure that a new copper washer (A) is installed.

G16423256

Courtesy of KIA MOTORS AMERICA, INC.

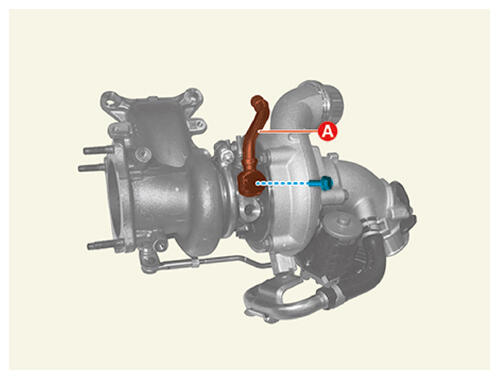

Remove the turbocharger water inlet pipe (A) after removing the bolt.

Tightening torque:

34.3 - 39.2 N.m (3.5 - 4.0 kgf.m, 25.3 - 28.9 lb.ft)

G16423257

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Do not reuse the copper washer (A).
When installing, make sure that a new copper washer (A) is installed.

G16423258

Courtesy of KIA MOTORS AMERICA, INC.

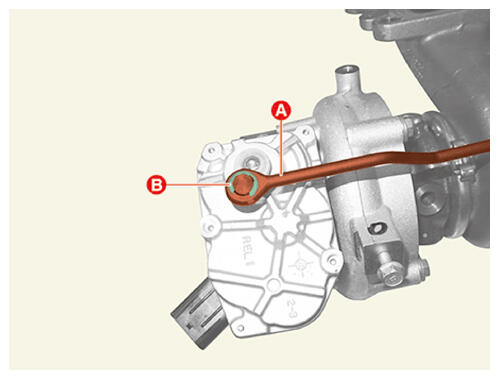

Separate the Electric Waste Gate Actuator (EWGA) rod (A) after removing the retaining ring.

Courtesy of KIA MOTORS AMERICA, INC.

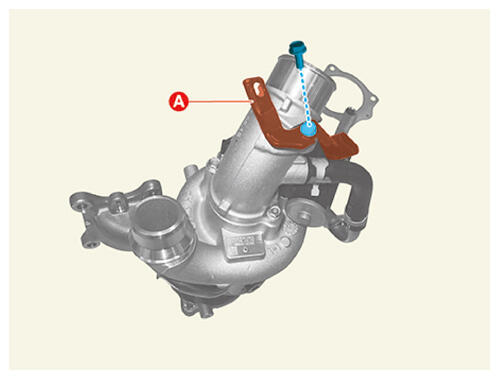

Remove the elbow pipe bracket (A) after removing the bolt.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

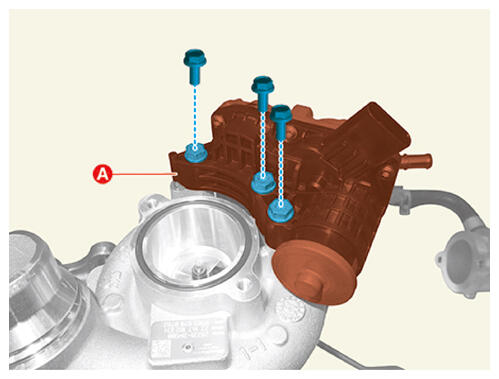

Remove the Electric Waste Gate Actuator (EWGA) (A) after removing the bolt.
Tightening torque:

12.7 - 13.7 N.m (1.3 - 1.4 kgf.m, 9.4 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
