Rear Muffler

  1. Remove the rear muffler.

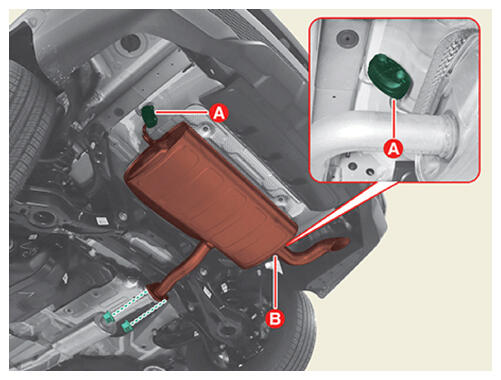

    1. Remove the rear muffler (B) After removing the rubber hanger (A) and the nuts.

      Tightening torque:

      39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

G16423278Courtesy of KIA MOTORS AMERICA, INC.
