Catalytic Converter & Center Muffler

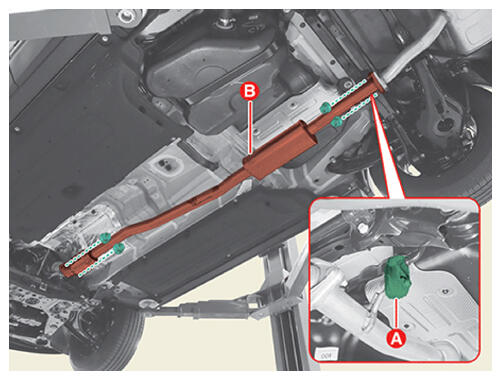

  1. Catalytic converter & center muffler assembly.
    1. Separate the rubber hanger (A).
    2. Remove the catalytic converter & center muffler (B) after removing the nuts.

      Tightening torque:

      39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

      G16423277Courtesy of KIA MOTORS AMERICA, INC.
