Removal And Installation: Removal

Remove the engine cover.
(Refer to Engine and Transaxle Assembly - " ENGINE COVER ")
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

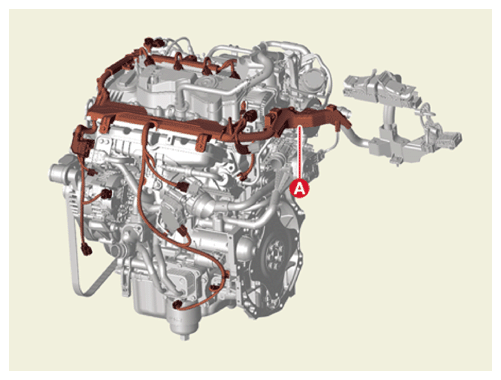

Disconnect the engine wiring connector and harness clamp and disconnect the wiring from intake manifold.

Courtesy of KIA MOTORS AMERICA, INC.

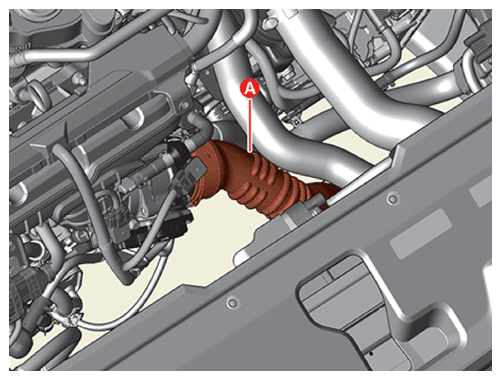

Separate the intercooler inlet pipe (A) after releasing the quick connector.

Courtesy of KIA MOTORS AMERICA, INC.

Information

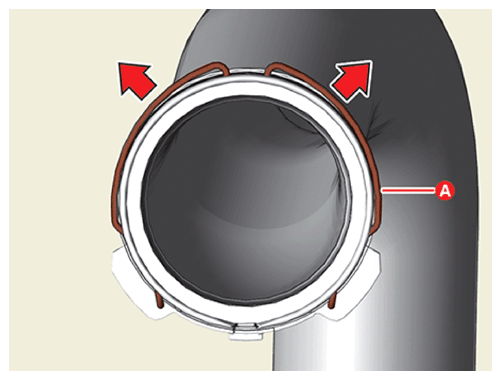

When disconnect the intercooler outlet hose, pull out the quick connector clamp (A) in the direction of the arrow as shown below.

Courtesy of KIA MOTORS AMERICA, INC.

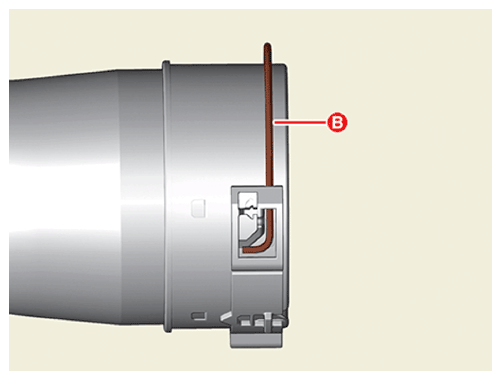

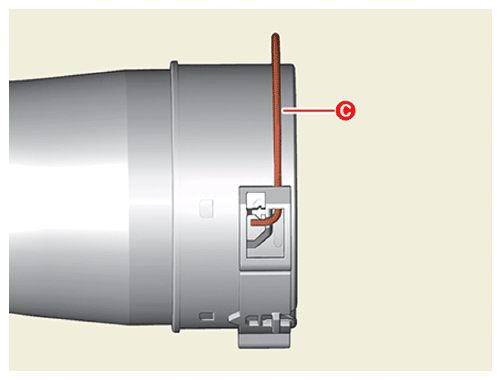

Move the quick connector clamp from position (B) to position (C) as shown below and pull out the quick connector hose.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

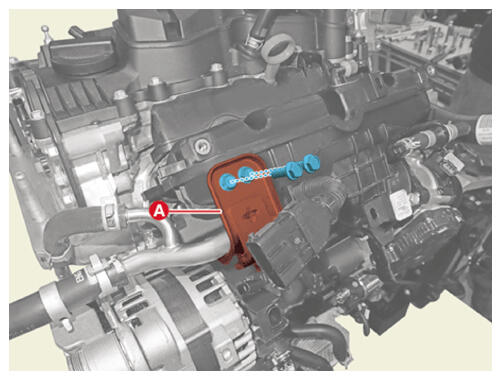

Remove the return hose and pipe bracket bolt (A) and disconnect the wiring (B).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

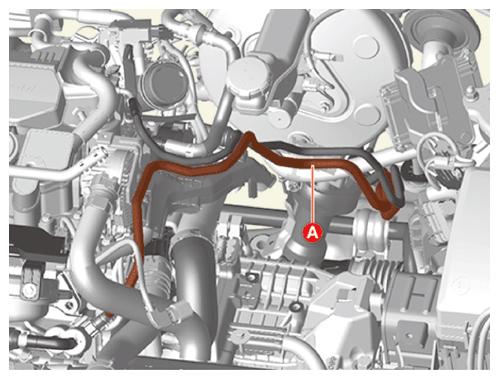

Disconnect the Purge Control Solenoid Valve (PCSV) hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

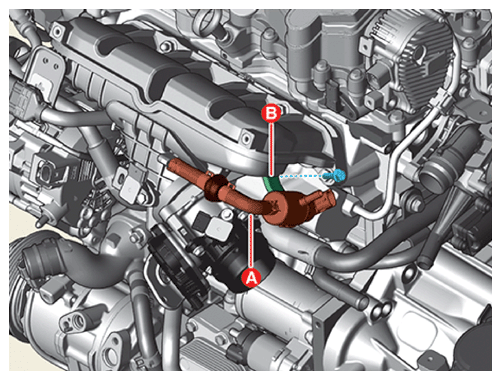

Remove the Purge Control Solenoid Valve (PCSV) (A) and disconnect the bracket (B) after removing the bolt.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the MAPS & IATS.
(Refer to Engine Control/Fuel System - " ENGINE CONTROL SYSTEM - 1.6L MANIFOLD ABSOLUTE PRESSURE SENSOR & INTAKE AIR TEMPERATURE SENSOR (MAPS & IATS) ")
Remove the Electronic Throttle Control (ETC) module.
(Refer to Engine Control/Fuel System - "ETC (ELECTRONIC THROTTLE CONTROL MODULE) ")

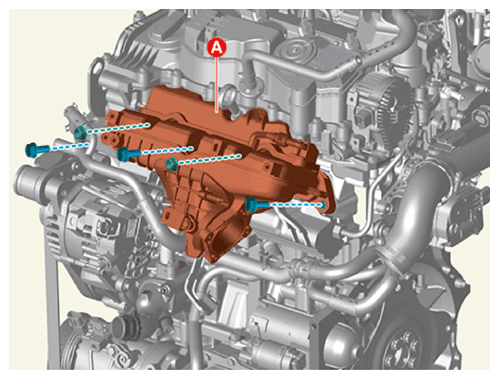

Remove the intake manifold (A) with the gasket after removing the bolts and nuts.
Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

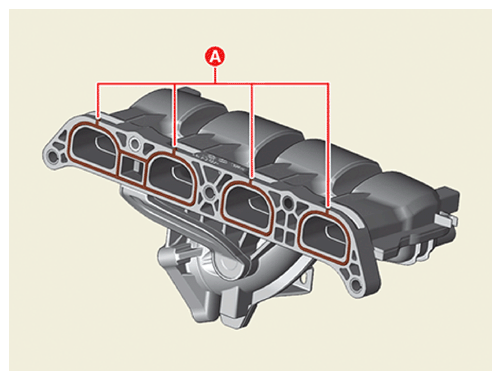

NOTE: Do not reuse the intake manifold gasket.

Courtesy of KIA MOTORS AMERICA, INC.
