Air Cleaner Assembly

  1. Disconnect the battery negative (-) terminal.

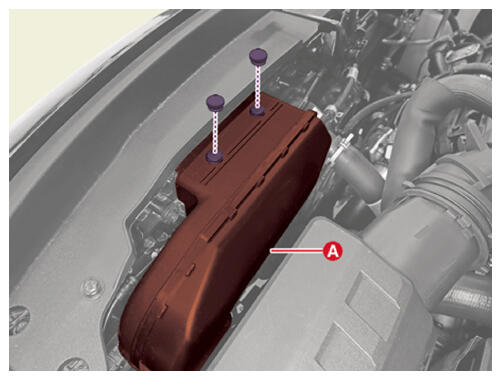

  2. Remove the air duct (A) after removing the fasteners.
    G16423222Courtesy of KIA MOTORS AMERICA, INC.

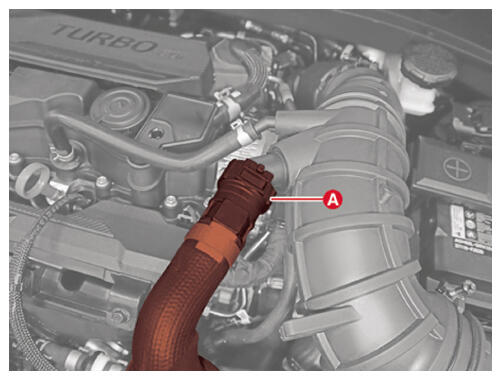

  3. Separate the RCV hose (A).
    G16423223Courtesy of KIA MOTORS AMERICA, INC.

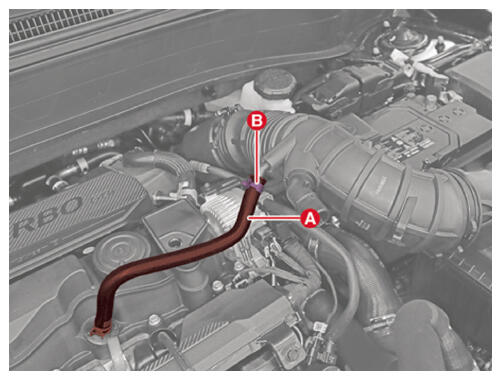

  4. Separate the outside air introduction hose (A) after releasing the clamp.
    G16423224Courtesy of KIA MOTORS AMERICA, INC.

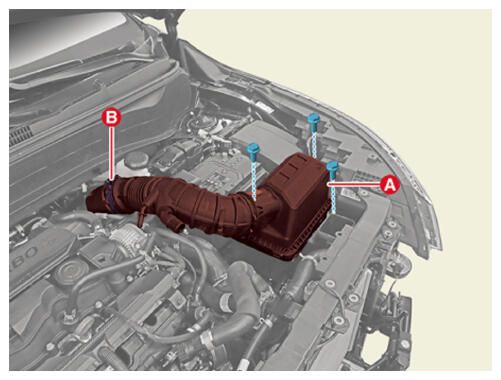

  5. Remove the air cleaner assembly after removing the bolt.
    1. Separate the air intake hose after releasing the clamp (B).
    2. Remove the air cleaner assembly (A) after removing the bolts.

      Tightening torque:

      7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

      G16423225Courtesy of KIA MOTORS AMERICA, INC.
