Removal And Installation: Removal

  1. Remove the cluster.

    (Refer to Instrument Cluster - " CLUSTER REMOVAL AND INSTALLATION  ")

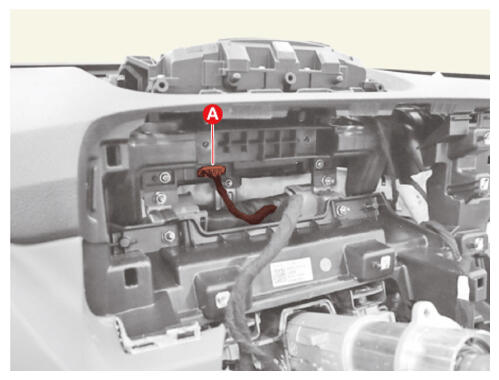

  2. Disconnect the Head-Up Display (HUD) unit connector (A).
    G16425919Courtesy of KIA MOTORS AMERICA, INC.

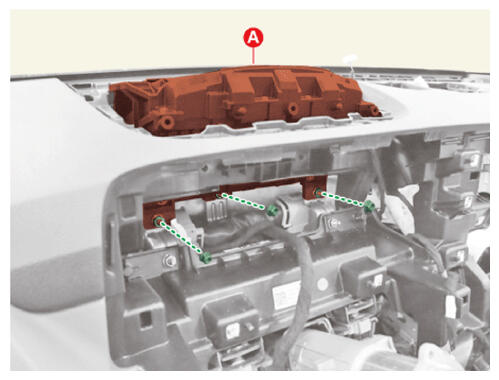

  3. Remove the Head-Up Display (HUD) unit (A) after removing the nuts.
    G16425920Courtesy of KIA MOTORS AMERICA, INC.
