Component Description

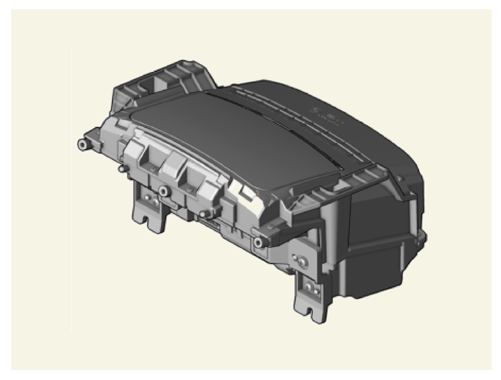

- Head-Up Display (HUD): Output various vehicle system information on windshield glass via CAN communication.

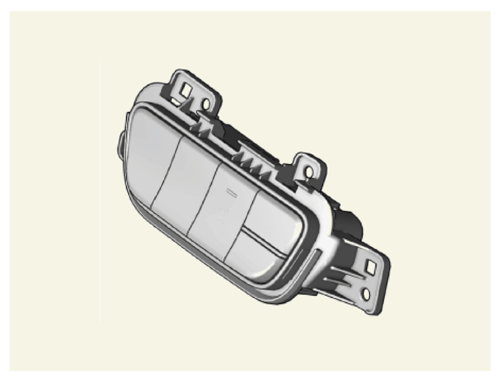

- HUD ON/OFF Switch
Turn ON/OFF the HUD via the side crash pad switch.

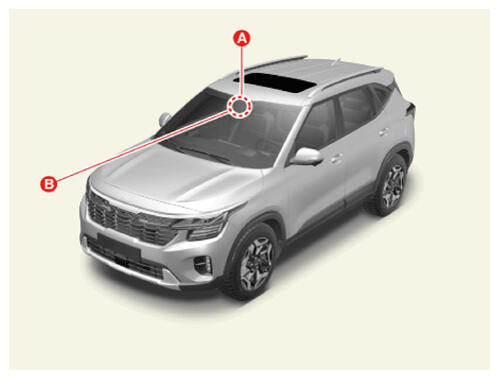

- Illumination Sensor: It is equipped with bidirectional (A: vertical, B: horizontal) sensor. HUD brightness is controlled depending on horizontal measurement (ambient brightness).
- Built-in bidirectional illumination sensor
Information
If illumination sensor measurement could not be detected, HUD will not be displayed. Check for normal operation of illumination sensor before inspecting HUD.
- Windshield glass: Windshield glass exclusive for Head-Up Display is built in with double image removal film.
Information
- Use of window tinting film on windshield glass may decrease image quality.
- Image may be distorted or seem dark if driver wears polarized sunglasses.
CAUTION: When replacing front windshield glass, always replace with exclusive windshield glass for Head-Up Display (HUD). Otherwise, the Head-Up Display (HUD) images may overlap.
