Glove Box

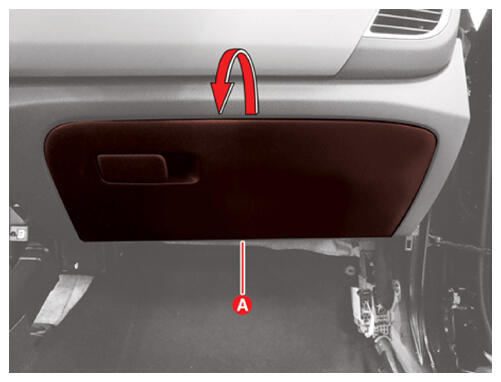

  1. Open the glove box (A).
    G16425488Courtesy of KIA MOTORS AMERICA, INC.

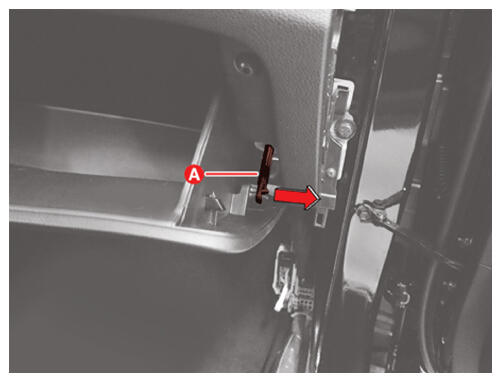

  2. Remove the air damper (A).
    G16425489Courtesy of KIA MOTORS AMERICA, INC.

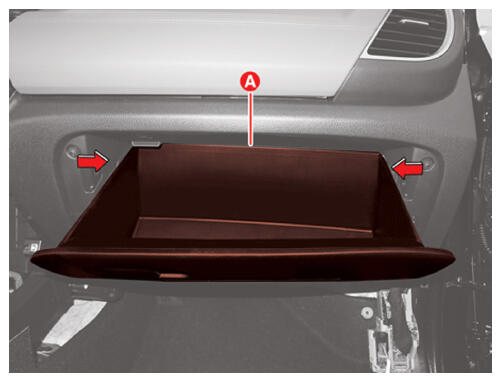

  3. Press the stopper in the direction of the arrow and lower the glove box (A).
    G16425490Courtesy of KIA MOTORS AMERICA, INC.

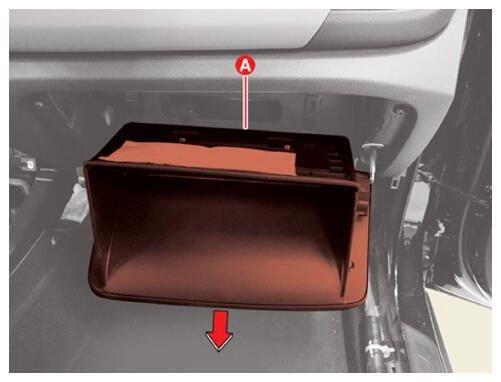

  4. Remove the glove box (A) in the direction of the arrow.
    G16425491Courtesy of KIA MOTORS AMERICA, INC.
