Removal And Installation: Removal

  1. Remove the front door body side weatherstrip.

    (Refer to Front Door - " FRONT DOOR WEATHERSTRIP  ")

  2. Remove the crash pad side cover (A).

    [Driver's side]

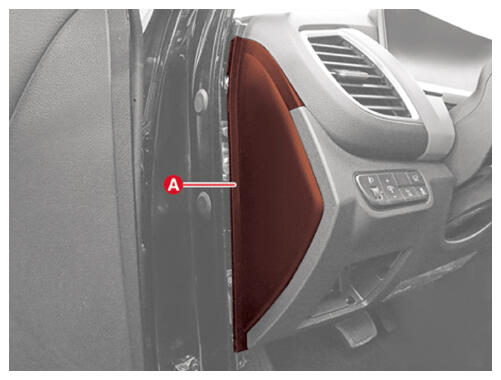

    G16425459Courtesy of KIA MOTORS AMERICA, INC.

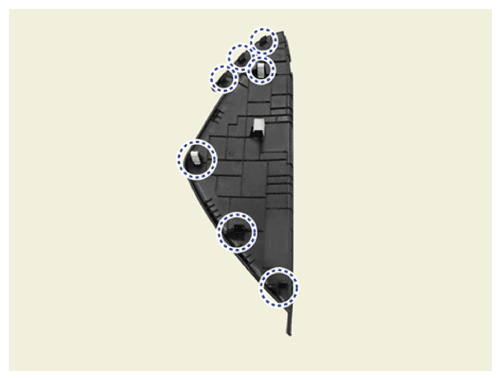

    G16425460Courtesy of KIA MOTORS AMERICA, INC.

    Information

    IMPORTANT:

    Clip position:

    [Passenger's side]

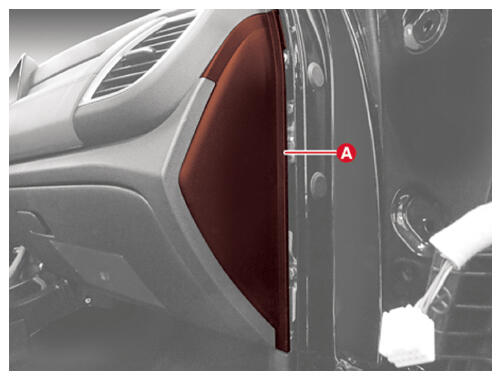

    G16425461Courtesy of KIA MOTORS AMERICA, INC.

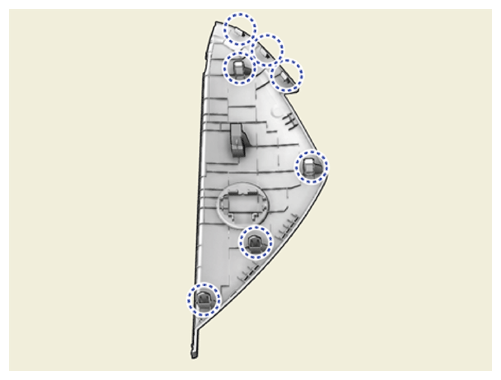

    G16425462Courtesy of KIA MOTORS AMERICA, INC.

    Information

    IMPORTANT:

    Clip position:
