Crash Pad Center Panel
- Remove the crash pad lower panel.
- Remove the crash pad side cover [Passenger's side].
(Refer to Crash Pad - "CRASH PAD SIDE COVER ")
- Remove the glove box.
(Refer to Crash Pad - "GLOVE BOX ")
- Remove the floor console assembly.
(Refer to Floor Console - " FLOOR CONSOLE ASSEMBLY ")
- Remove the heater and A/C control unit.
(Refer to HEATER AND A/C CONTROL UNIT )

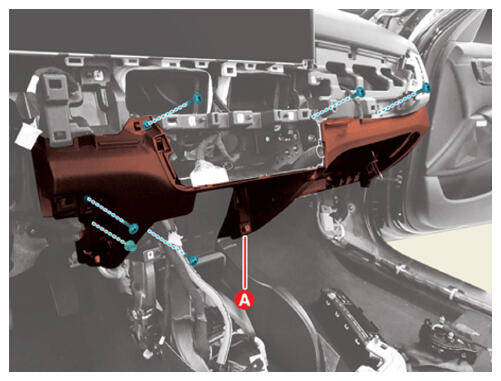

- Remove the crash pad center panel (A) after removing the screws and nuts.
Tightening torque:
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)
