Crash Pad Garnish [Passenger's Side]

  1. Remove the crash pad center garnish.

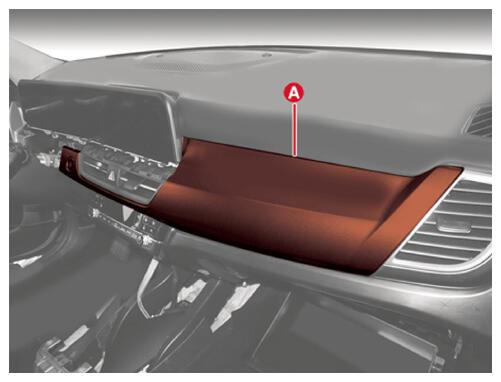

  2. Remove the crash pad garnish [Passenger's side] (A).
    G16425480Courtesy of KIA MOTORS AMERICA, INC.
    G16425481Courtesy of KIA MOTORS AMERICA, INC.

    Information

    IMPORTANT:

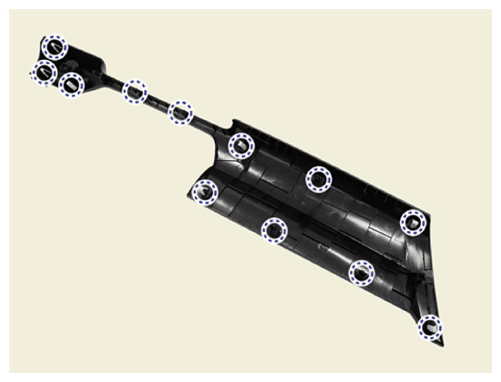

    Clip position:
  3. Disconnect the start and stop button connector (A).
    G16425482Courtesy of KIA MOTORS AMERICA, INC.

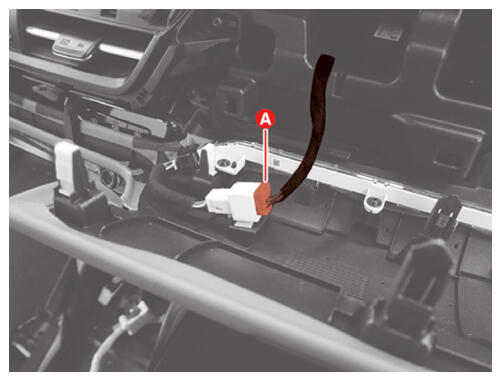

  4. Disconnect the mood lamp connector (A).
    G16425483Courtesy of KIA MOTORS AMERICA, INC.
