Crash Pad Garnish [Driver's Side]

1. Remove the cluster.

   (Refer to Body Electrical System - " CLUSTER  ")

2. Remove the crash pad lower panel.

   (Refer to Crash Pad - "CRASH PAD PANEL ")

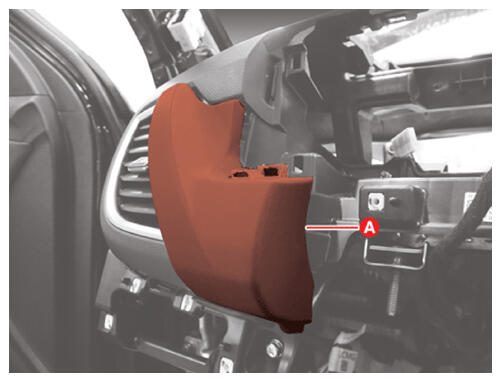

3. Remove the crash pad garnish [Driver's side] (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

IMPORTANT:

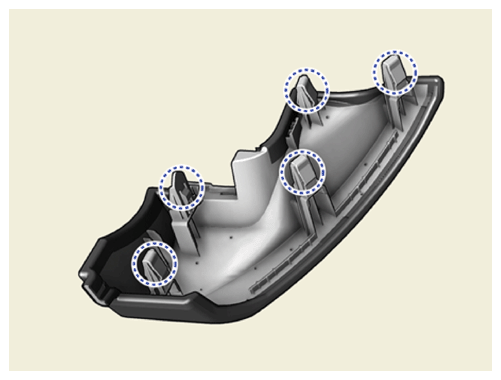

Clip position:
