Crash Pad Center Garnish

  1. Remove the crash pad center garnish (A) by using the service hole (B).

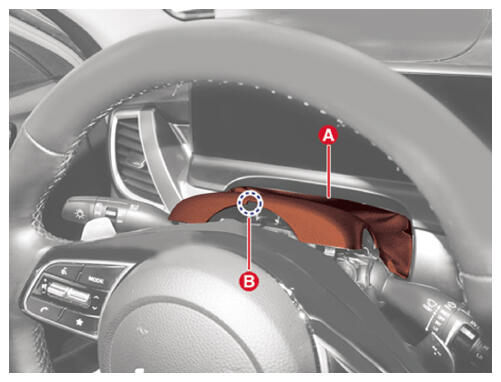

    G16425474Courtesy of KIA MOTORS AMERICA, INC.

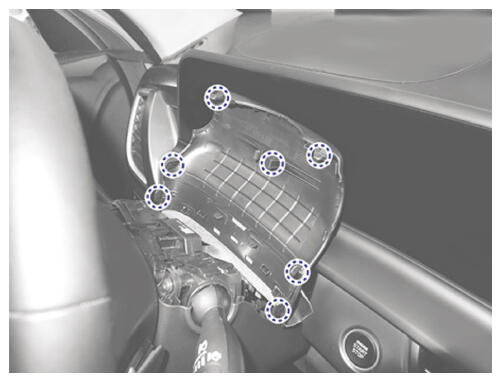

    G16425475Courtesy of KIA MOTORS AMERICA, INC.

    Information

    IMPORTANT:

    Clip position:
  2. Remove the crash pad center garnish (A).

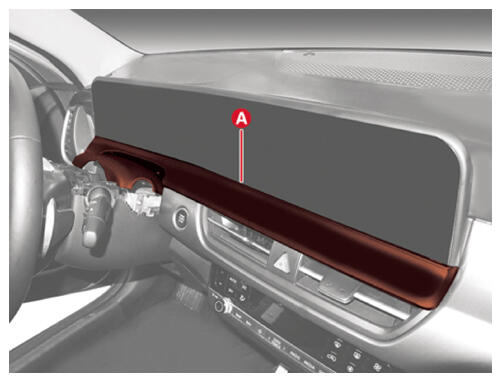

    G16425476Courtesy of KIA MOTORS AMERICA, INC.

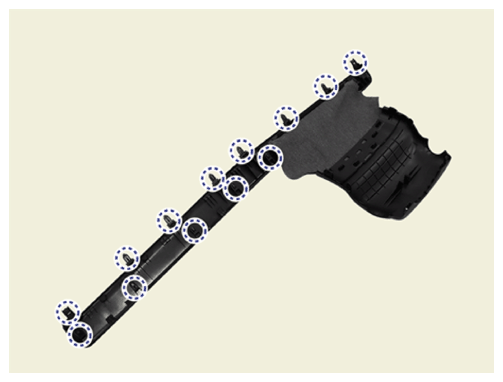

    G16425477Courtesy of KIA MOTORS AMERICA, INC.

    Information

    IMPORTANT:

    Clip position:
