Side Air Vent [Passenger's Side]

  1. Remove the crash pad garnish [Passenger's side].

    (Refer to Crash Pad - "CRASH PAD GARNISH ")

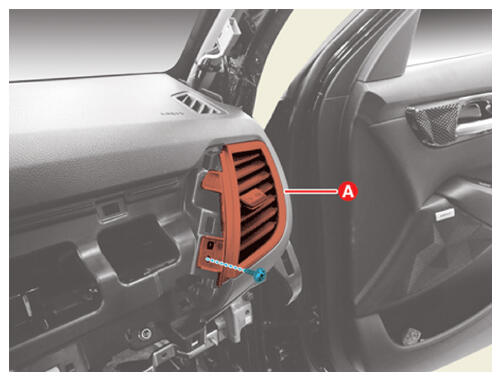

  2. Remove the side air vent [Passenger's side] (A) after removing the screw.
G16425467Courtesy of KIA MOTORS AMERICA, INC.
