Center Air Vent

  1. Remove the crash pad garnish [Passenger's side].

    (Refer to Crash Pad - "CRASH PAD GARNISH ")

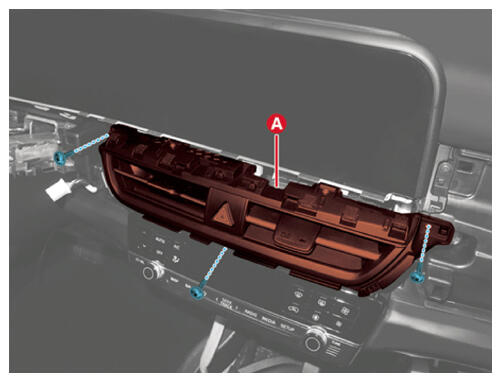

  2. Remove the center air vent (A) after removing the screws.
    G16425463Courtesy of KIA MOTORS AMERICA, INC.
    G16425464Courtesy of KIA MOTORS AMERICA, INC.

    Information

    IMPORTANT:

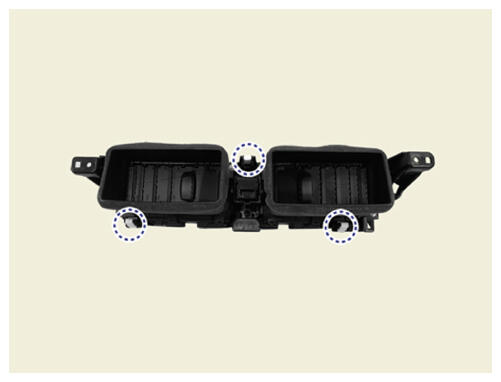

    Clip position:

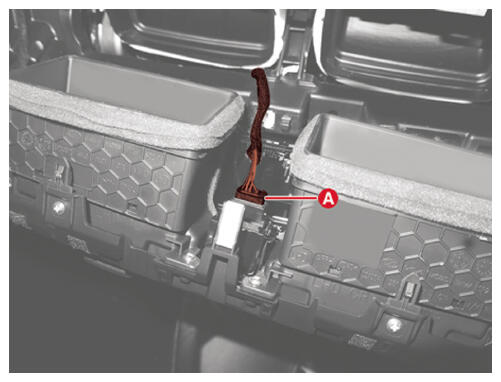

  3. Disconnect the hazard switch connector (A).
    G16425465Courtesy of KIA MOTORS AMERICA, INC.
