Removal And Installation: Removal

  1. Remove the front wiper motor.

    (Refer to Body Electrical System - " WIPER MOTOR  ")

  2. Remove the main crash pad assembly.

    (Refer to Crash Pad - "MAIN CRASH PAD ASSEMBLY ")

  3. Remove the Integrated Central control Unit (ICU).

    (Refer to Body Electrical System - " INTEGRATED CENTRAL CONTROL UNIT (ICU)  ")

  4. Remove the Integrated Body Control Unit (IBU).

    (Refer to Body Electrical System - " INTEGRATED BODY CONTROL UNIT (IBU)  ")

  5. Remove interior antenna 1.

    (Refer to Body Electrical System - " SMART KEY ANTENNA  ")

  6. Separate the MDPS column & housing.

    (Refer to Steering System - " MDPS COLUMN & HOUSING  ")

  7. Disconnect the main wiring harness connector.

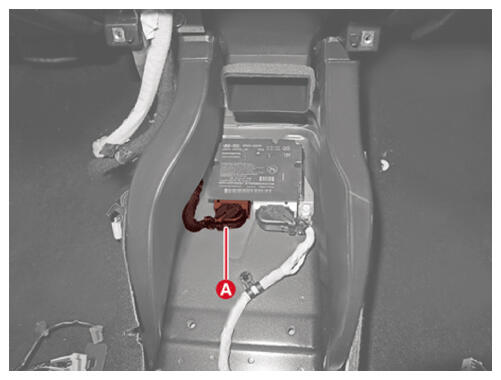

    1. Disconnect the airbag control module (SRSCM) connector (A).
      G16425496Courtesy of KIA MOTORS AMERICA, INC.

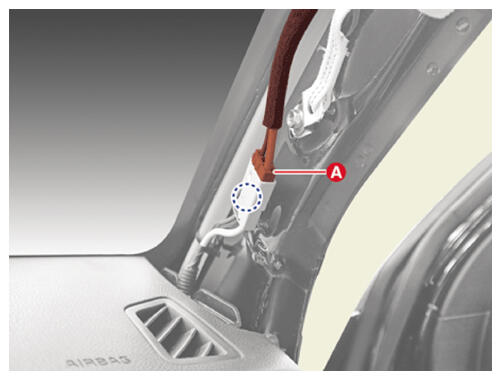

    2. Disconnect the roof antenna connector (A).
      G16425497Courtesy of KIA MOTORS AMERICA, INC.

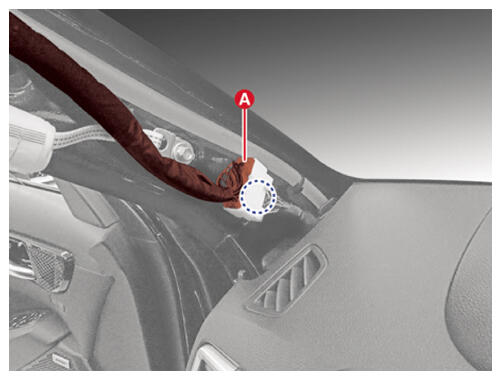

    3. Disconnect the roof trim connector (A).
      G16425498Courtesy of KIA MOTORS AMERICA, INC.

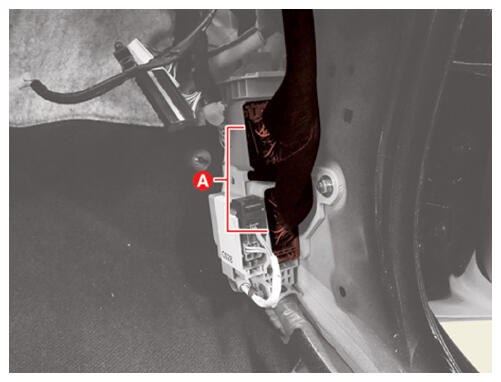

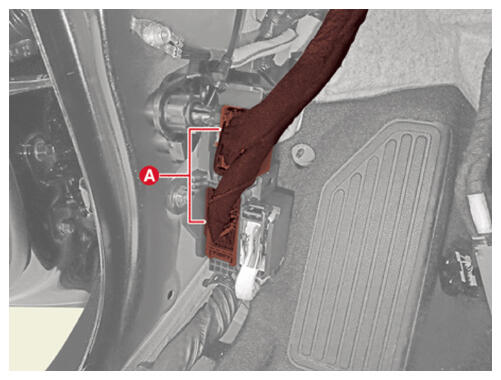

    4. Disconnect the multi box connectors (A).
      G16425499Courtesy of KIA MOTORS AMERICA, INC.
      G16425500Courtesy of KIA MOTORS AMERICA, INC.
  8. Disconnect the heater and blower unit connectors.

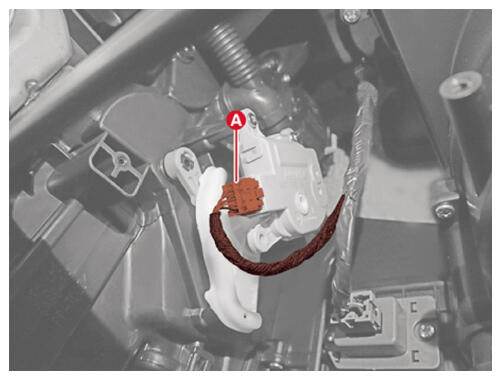

    1. Disconnect the temperature control actuator connector (A).
      G16425501Courtesy of KIA MOTORS AMERICA, INC.

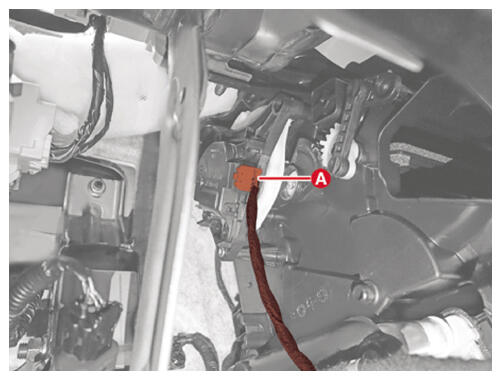

    2. Disconnect the mode control actuator connector (A).
      G16425502Courtesy of KIA MOTORS AMERICA, INC.

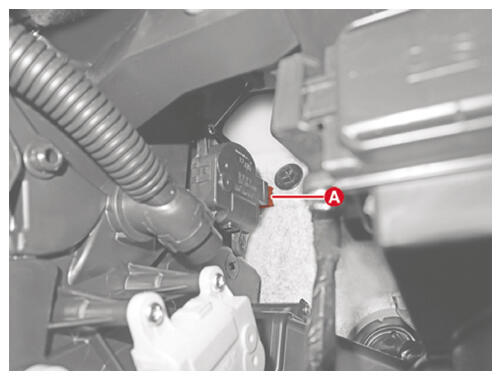

    3. Disconnect the auto defogging actuator connector (A).
      G16425503Courtesy of KIA MOTORS AMERICA, INC.

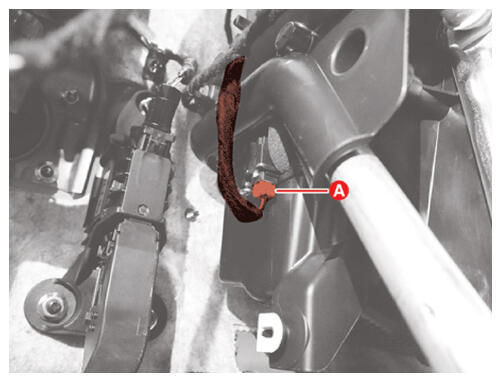

    4. Disconnect the evaporator sensor connector (A).
      G16425504Courtesy of KIA MOTORS AMERICA, INC.

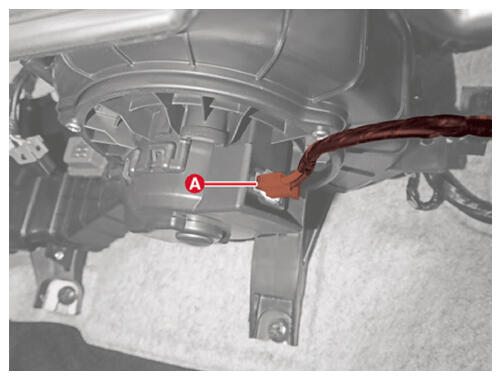

    5. Disconnect the blower motor connector (A).
      G16425505Courtesy of KIA MOTORS AMERICA, INC.

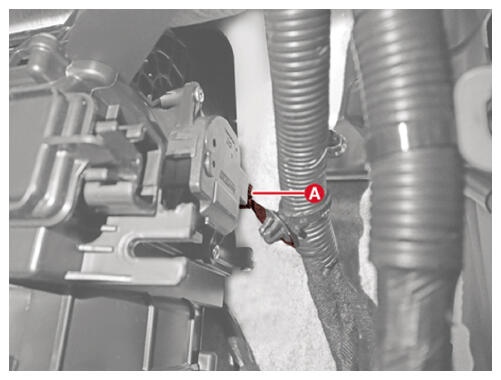

    6. Disconnect the intake actuator connector (A).
      G16425506Courtesy of KIA MOTORS AMERICA, INC.

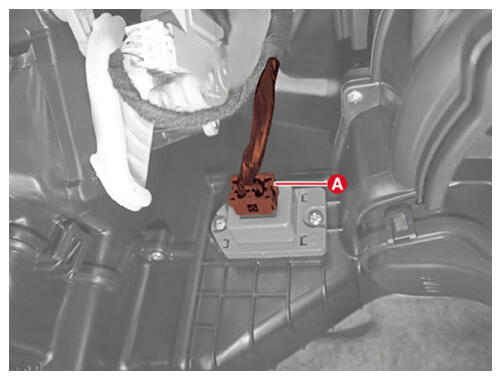

    7. Disconnect the blower resistor connector (A).
    G16425507Courtesy of KIA MOTORS AMERICA, INC.
  9. Remove the main wiring harness wiring clip.

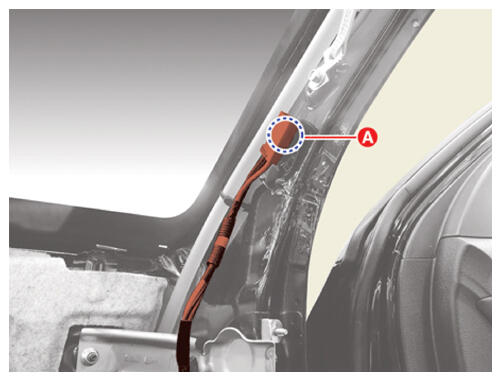

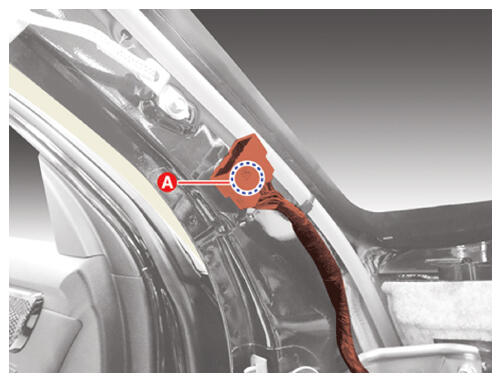

    1. Remove the A pillar wiring clips (A).
      G16425508Courtesy of KIA MOTORS AMERICA, INC.
      G16425509Courtesy of KIA MOTORS AMERICA, INC.

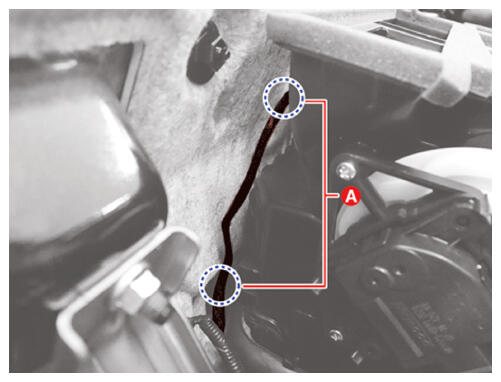

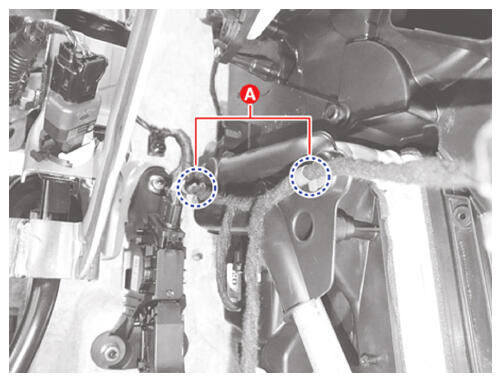

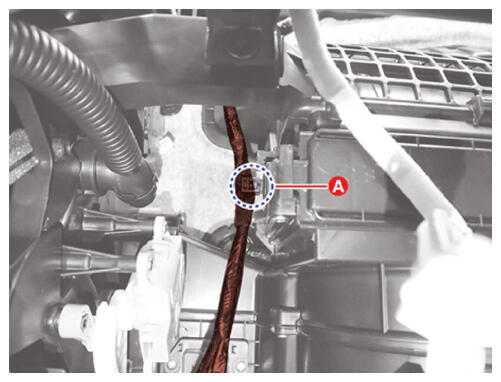

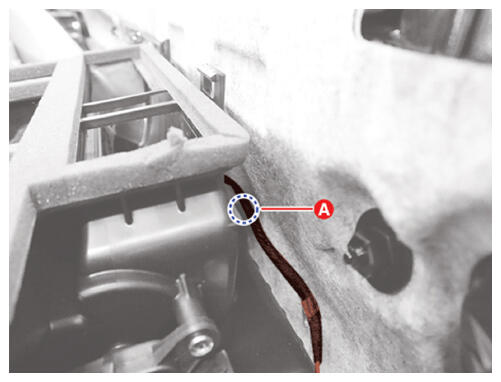

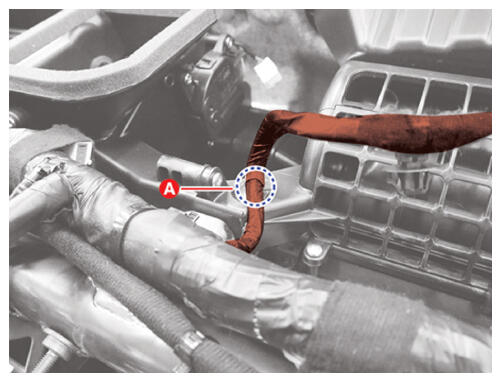

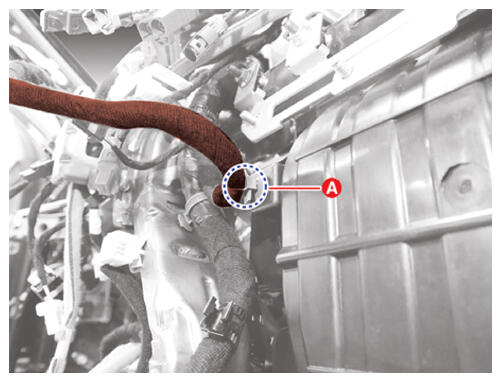

    2. Remove the heater and blower unit wiring clips (A).
    G16425510Courtesy of KIA MOTORS AMERICA, INC.
    G16425511Courtesy of KIA MOTORS AMERICA, INC.
    G16425512Courtesy of KIA MOTORS AMERICA, INC.
    G16425513Courtesy of KIA MOTORS AMERICA, INC.
    G16425514Courtesy of KIA MOTORS AMERICA, INC.
    G16425515Courtesy of KIA MOTORS AMERICA, INC.

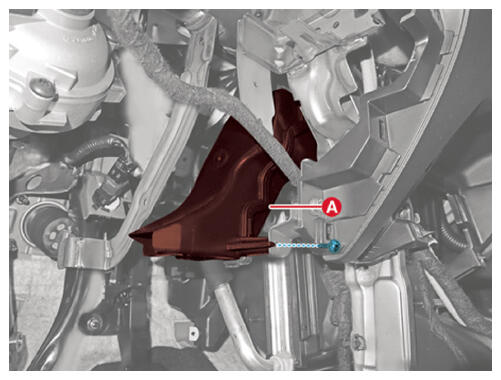

  10. Remove the driver's side shower duct (A) after removing the screw.
    G16425516Courtesy of KIA MOTORS AMERICA, INC.

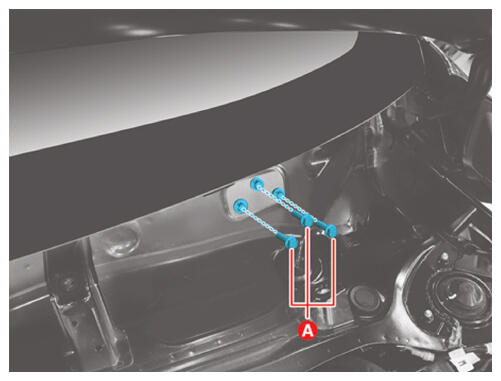

  11. Remove the dash panel cowl cross bar bolts (A).

    Tightening torque:

    22.6 - 30.4 N.m (2.3 - 3.1 kgf.m, 16.6 - 22.4 lb.ft)

    G16425517Courtesy of KIA MOTORS AMERICA, INC.

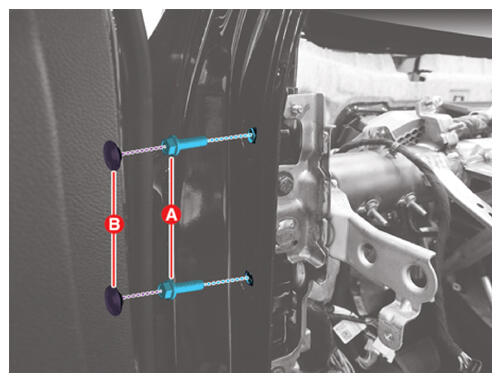

  12. Remove the side panel cowl cross bar bolts (A) after removing hole plug (B).

    Tightening torque:

    17.7 - 23.5 N.m (1.8 - 2.4 kgf.m, 13 - 17.4 lb.ft)

    G16425518Courtesy of KIA MOTORS AMERICA, INC.

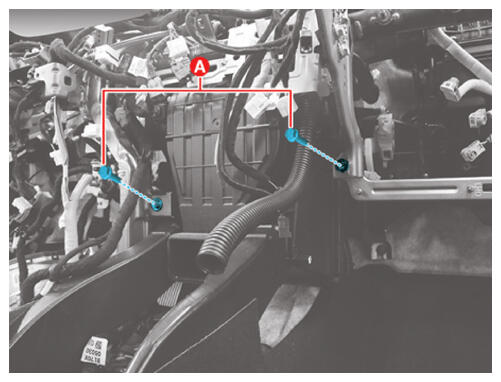

  13. Remove the heater and blower unit bolts (A).

    Tightening torque:

    3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.7 - 52.1 lb.in)

    G16425519Courtesy of KIA MOTORS AMERICA, INC.

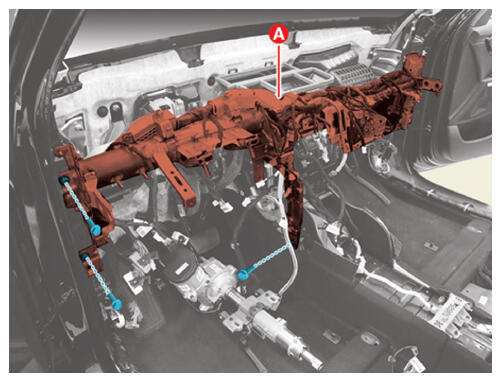

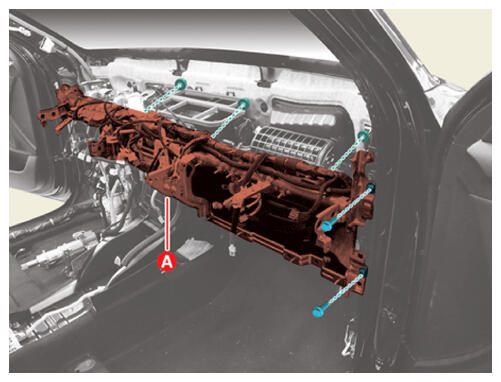

  14. Remove the cowl cross bar assembly (A) after removing the bolts.

    Tightening torque

    Bolt: 6.9 - 25.5 N.m (0.7 - 2.6 kgf.m, 5.1 - 18.8 lb.ft)

    Nut: 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

    G16425520Courtesy of KIA MOTORS AMERICA, INC.
    G16425521Courtesy of KIA MOTORS AMERICA, INC.

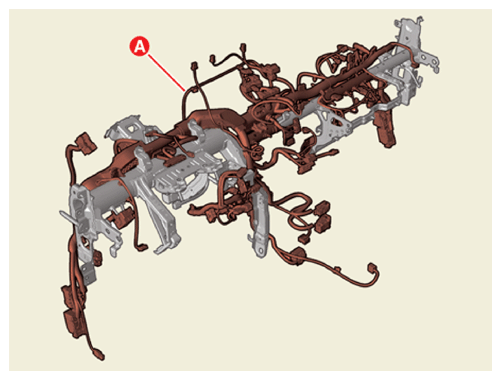

  15. Remove the main wiring harness (A).
    G16425522Courtesy of KIA MOTORS AMERICA, INC.
