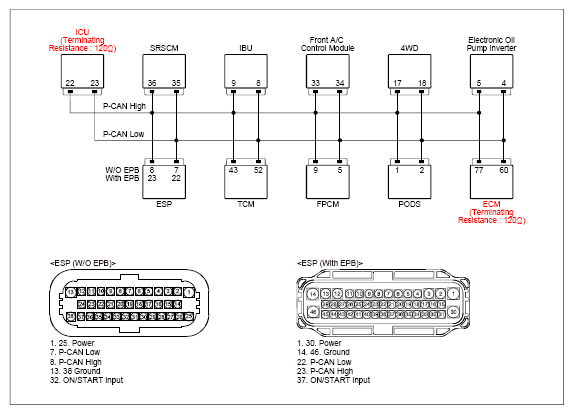

Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

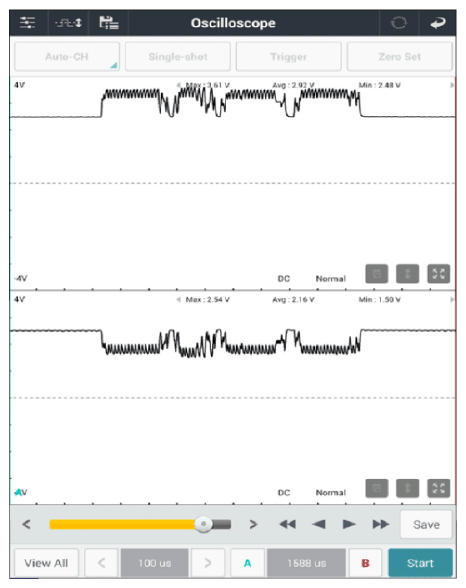

AWD ECU connector | 17 (P-CAN high) | Chassis ground | - | Fig.1 |
| AWD ECU connector | 18 (P-CAN low) | Chassis ground | - | ||

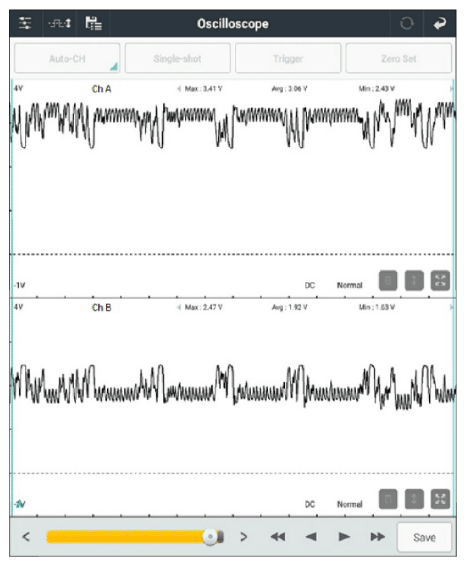

| MDPS ECU connector | 7 (C-CAN high) | Chassis ground | - | Fig.2 | |
| MDPS ECU connector | 8 (C-CAN low) | Chassis ground | - | ||
|

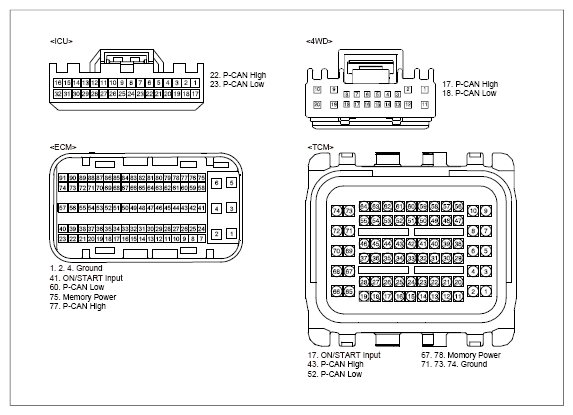

AWD ECU connector | 17 (P-CAN high) | ICU connector | 22 (P-CAN high) | Approx. below 1Ω |
| AWD ECU connector | 18 (P-CAN low) | ICU connector | 23 (P-CAN low) | Approx. below 1Ω | |
| ICU connector | 29 (C-CAN high) | MDPS ECU connector | 7 (C-CAN high) | Approx. below 1Ω | |
| ICU connector | 30 (C-CAN low) | MDPS ECU connector | 8 (C-CAN low) | Approx. below 1Ω | |
Good
- Go to "MODULE CIRCUIT INSPECTION " procedure.
No Good
- Repair as necessary and then Go to "VERIFICATION OF REPAIR " procedure.
