Circuit Inspection

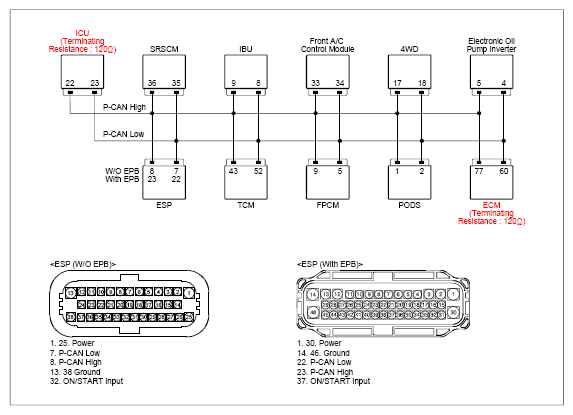

G15719558

Courtesy of KIA MOTORS AMERICA, INC.

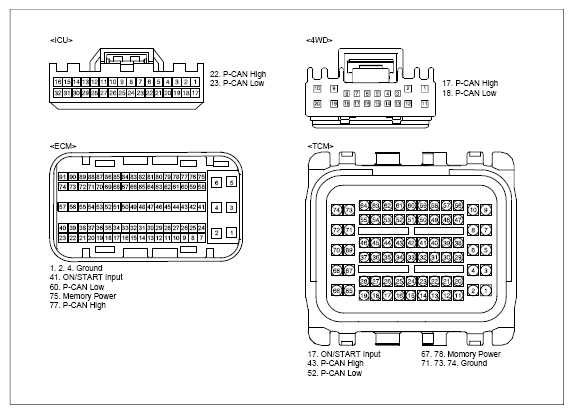

G15719559

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "ON".	AWD ECU connector	17 (P-CAN high)	Chassis ground	-	Fig.1
Ignition "ON".	AWD ECU connector	18 (P-CAN low)	Chassis ground	-	Fig.1
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	AWD ECU connector	17 (P-CAN high)	AWD ECU connector	18 (P-CAN low)	Approx. 60Ω
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	ECM (component side)	77 (P-CAN high)	ECM (component side)	60 (P-CAN low)	Approx. 120Ω
	ICU (component side)	22 (P-CAN high)	ICU (component side)	23 (P-CAN low)	Approx. 120Ω

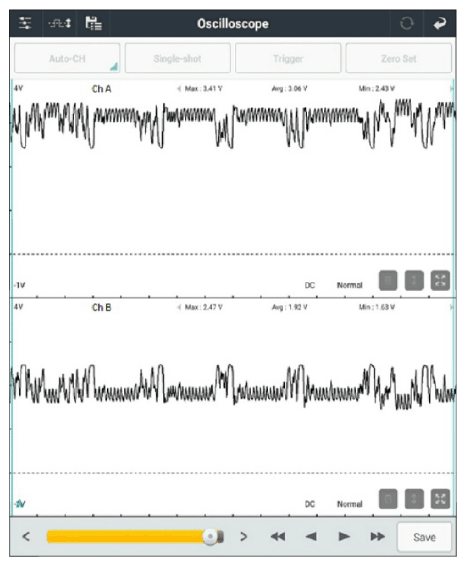

G15719560

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "MODULE CIRCUIT INSPECTION " procedure.

No Good

Repair as necessary and then Go to "VERIFICATION OF REPAIR " procedure.
