S/W management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "S/W Management" with KDS.
  3. Perform "Adaptive Value Back-up & Input (ECU replacement)" in "S/W Management" with KDS.
  4. After this procedure, Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 10
G15719537Courtesy of KIA MOTORS AMERICA, INC.

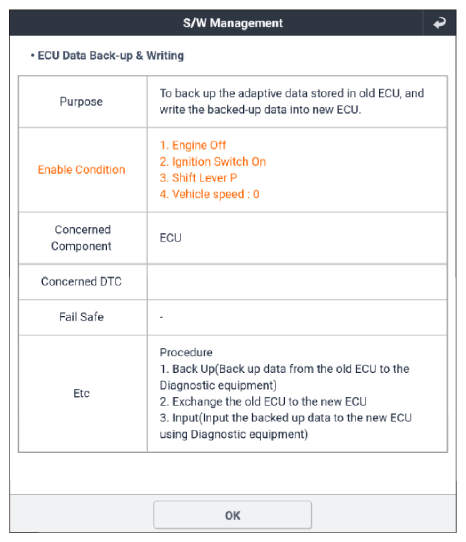

G15719538Courtesy of KIA MOTORS AMERICA, INC.

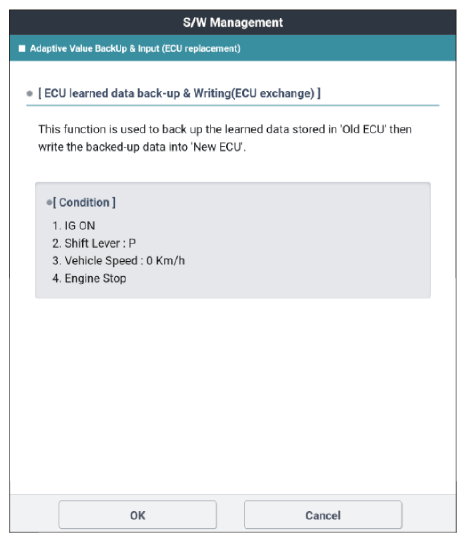

G15719539Courtesy of KIA MOTORS AMERICA, INC.

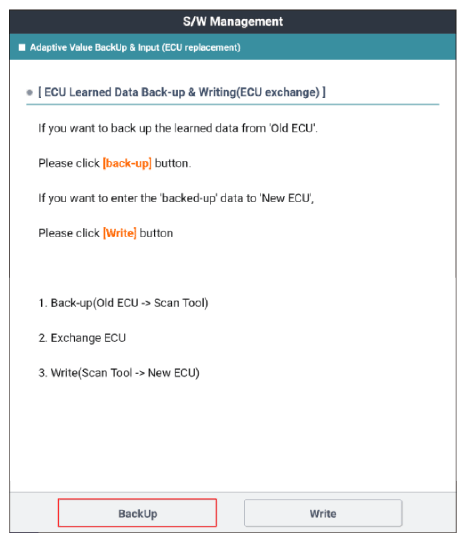

G15719540Courtesy of KIA MOTORS AMERICA, INC.

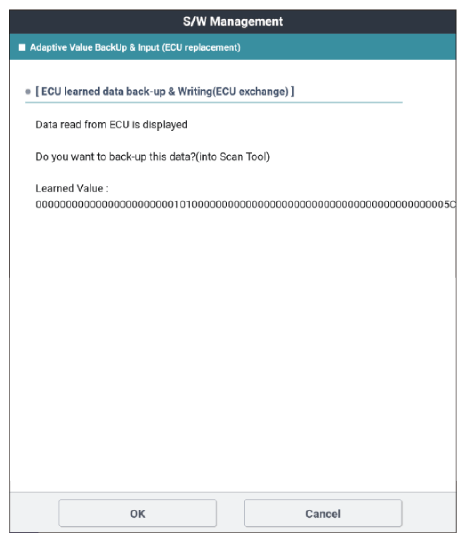

G15719541Courtesy of KIA MOTORS AMERICA, INC.

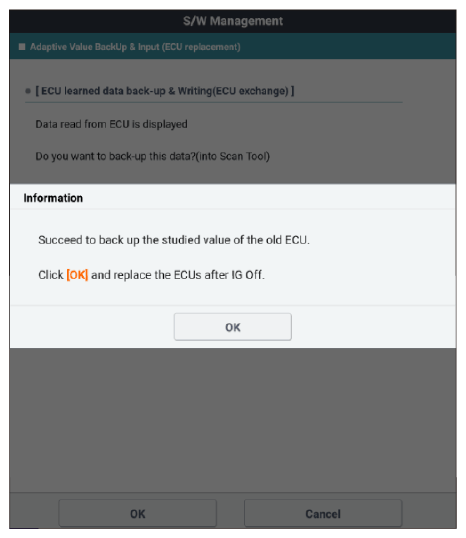

G15719542Courtesy of KIA MOTORS AMERICA, INC.

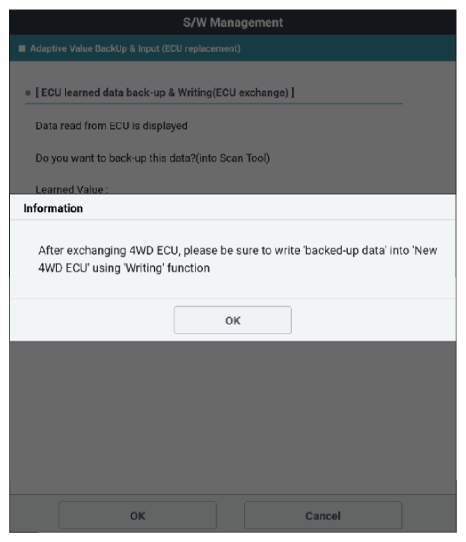

G15719543Courtesy of KIA MOTORS AMERICA, INC.

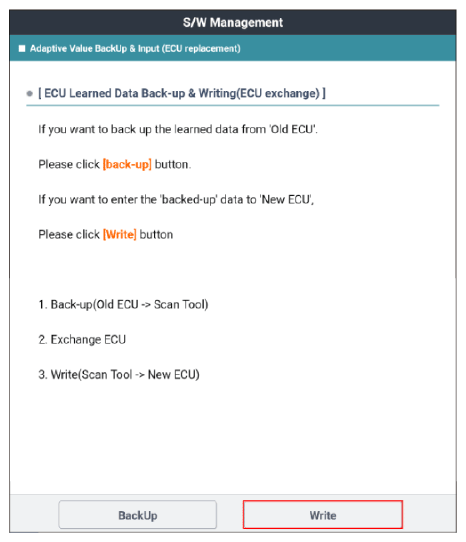

G15719544Courtesy of KIA MOTORS AMERICA, INC.

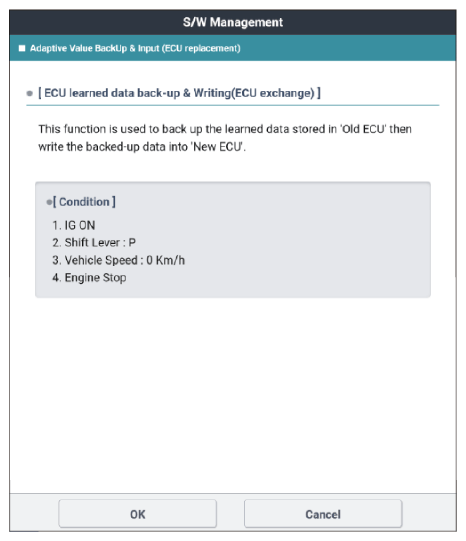

G15719545Courtesy of KIA MOTORS AMERICA, INC.

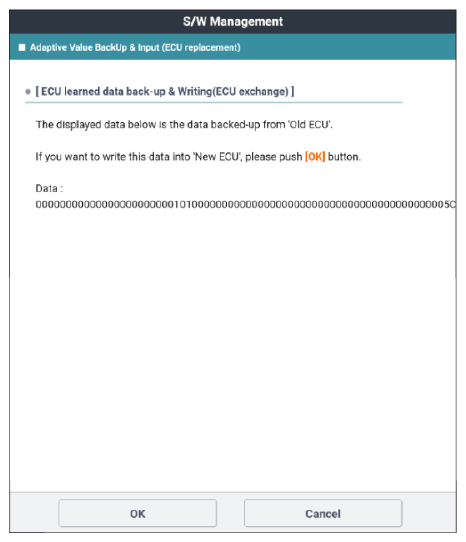

G15719546Courtesy of KIA MOTORS AMERICA, INC.
