S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "S/W Management" with KDS.
  3. Perform "Air Bleeding Mode" in "S/W Management" with KDS.
  4. After this procedure, Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 4
CAUTION: This is the function to discharge the air inside the oil.
G15719484Courtesy of KIA MOTORS AMERICA, INC.

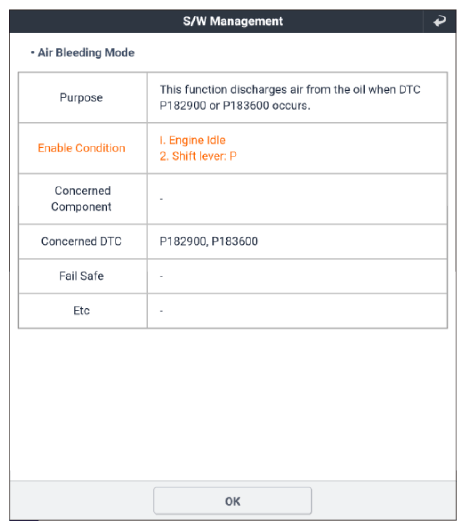

G15719485Courtesy of KIA MOTORS AMERICA, INC.

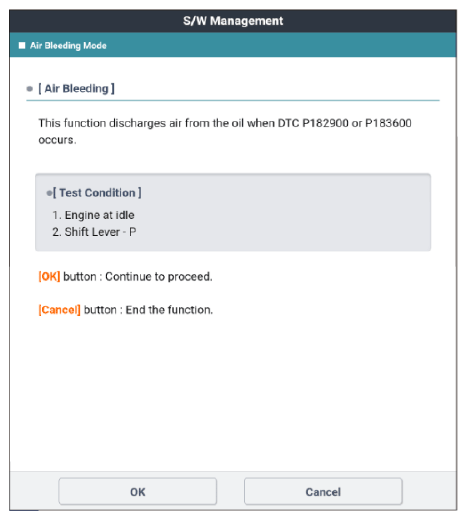

G15719486Courtesy of KIA MOTORS AMERICA, INC.
G15719487Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "S/W Management" with KDS.
  3. Perform "Adaptive Value Back-up & Input (ECU replacement)" in "S/W Management" with KDS.
  4. After this procedure, Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 10
G15719488Courtesy of KIA MOTORS AMERICA, INC.

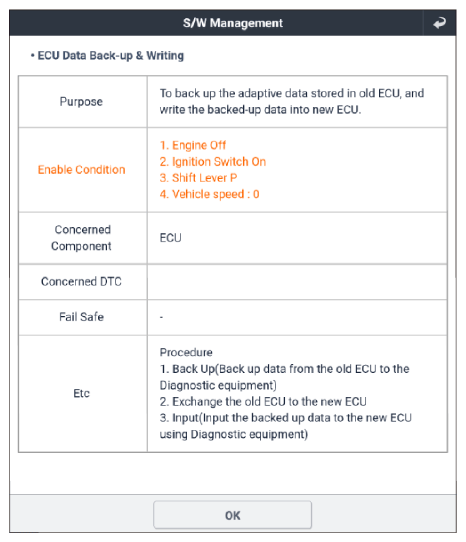

G15719489Courtesy of KIA MOTORS AMERICA, INC.

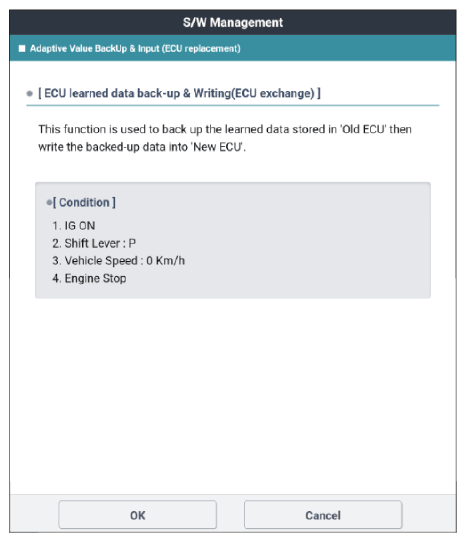

G15719490Courtesy of KIA MOTORS AMERICA, INC.

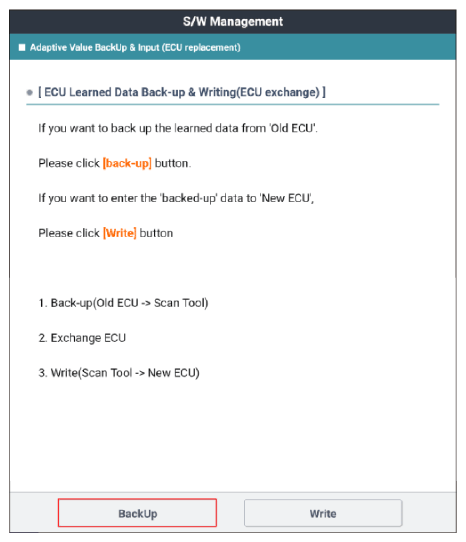

G15719491Courtesy of KIA MOTORS AMERICA, INC.

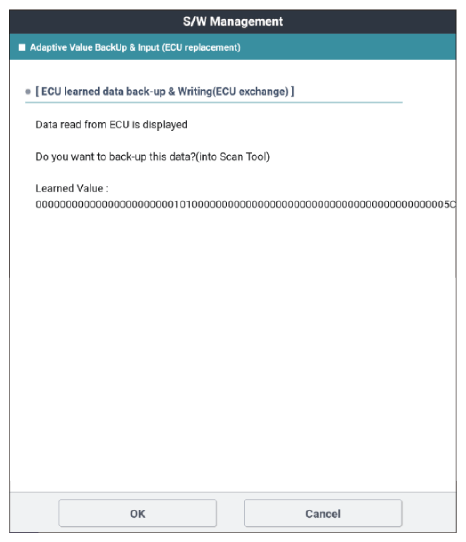

G15719492Courtesy of KIA MOTORS AMERICA, INC.
G15719493Courtesy of KIA MOTORS AMERICA, INC.

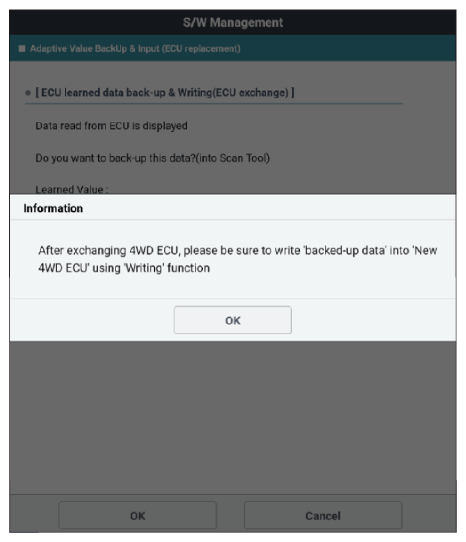

G15719494Courtesy of KIA MOTORS AMERICA, INC.

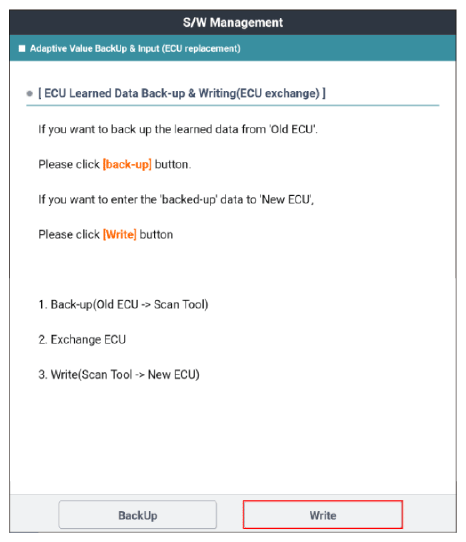

G15719495Courtesy of KIA MOTORS AMERICA, INC.

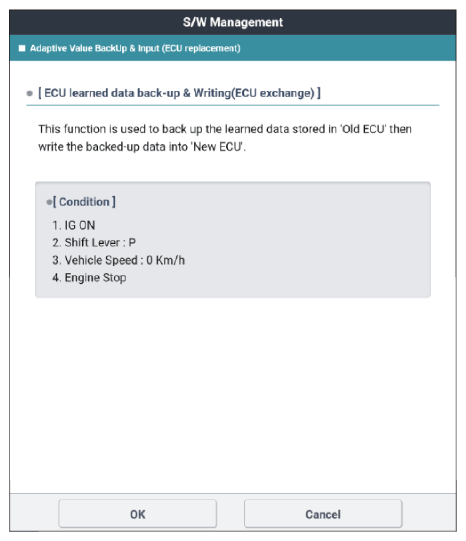

G15719496Courtesy of KIA MOTORS AMERICA, INC.

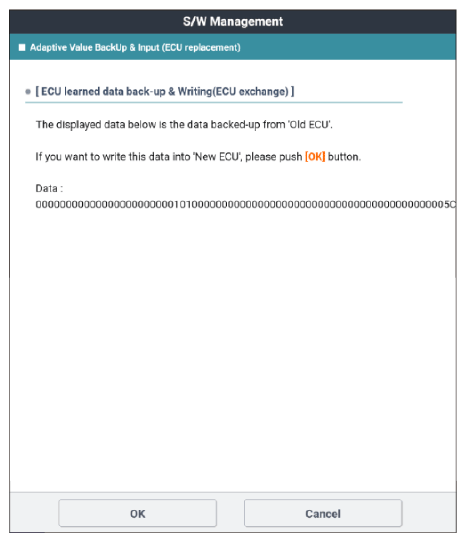

G15719497Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "S/W Management" with KDS.
  3. Perform "Adaptive Value Back-up & Input (ECU & Transfer Assy replacement at once)" in "S/W Management" with KDS.
  4. After this procedure, Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 10
G15719498Courtesy of KIA MOTORS AMERICA, INC.
G15719499Courtesy of KIA MOTORS AMERICA, INC.

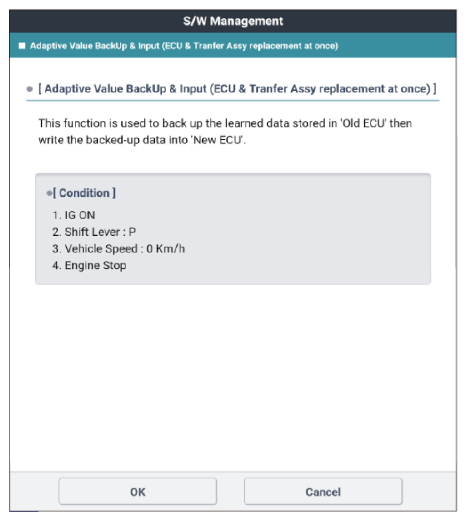

G15719500Courtesy of KIA MOTORS AMERICA, INC.

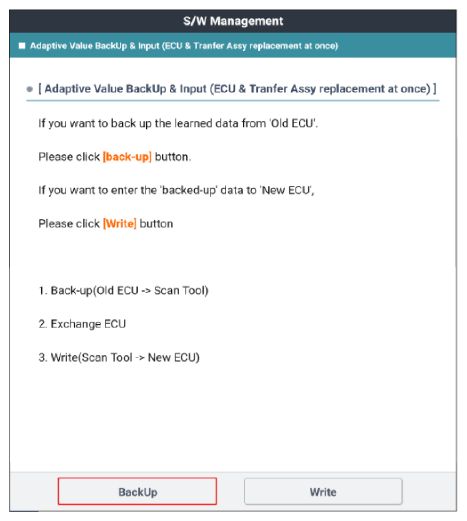

G15719501Courtesy of KIA MOTORS AMERICA, INC.

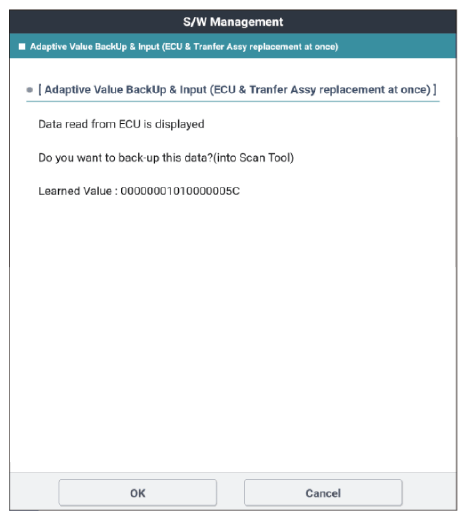

G15719502Courtesy of KIA MOTORS AMERICA, INC.

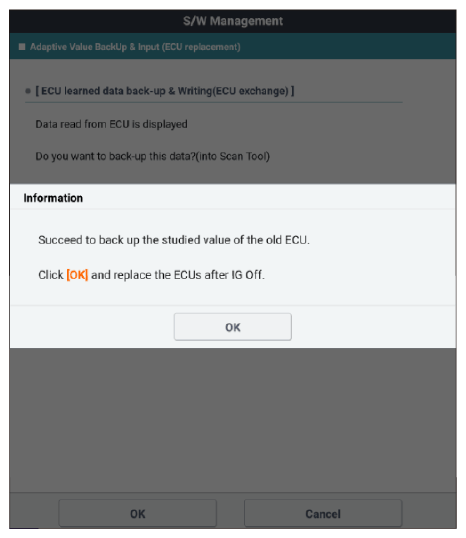

G15719503Courtesy of KIA MOTORS AMERICA, INC.
G15719504Courtesy of KIA MOTORS AMERICA, INC.

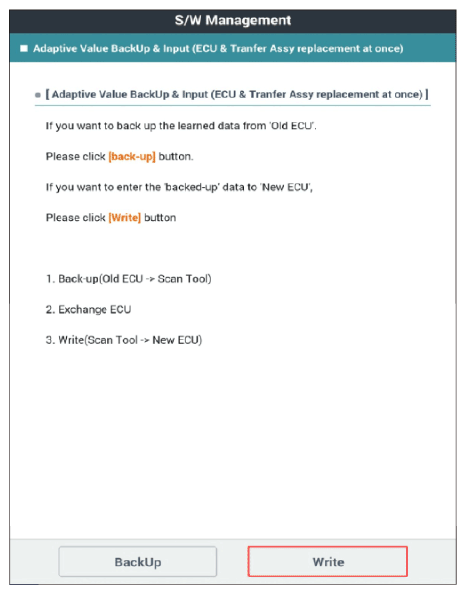

G15719505Courtesy of KIA MOTORS AMERICA, INC.

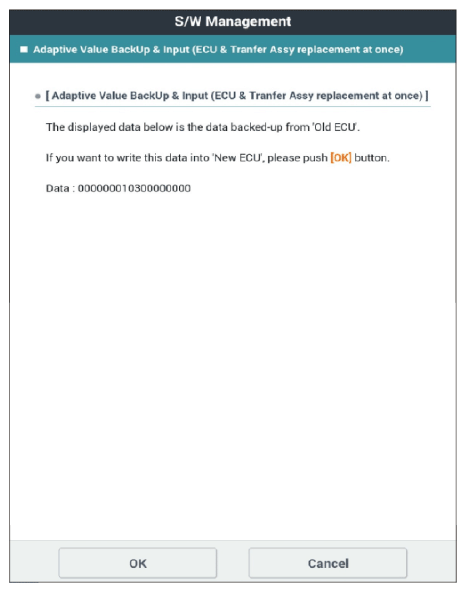

G15719506Courtesy of KIA MOTORS AMERICA, INC.

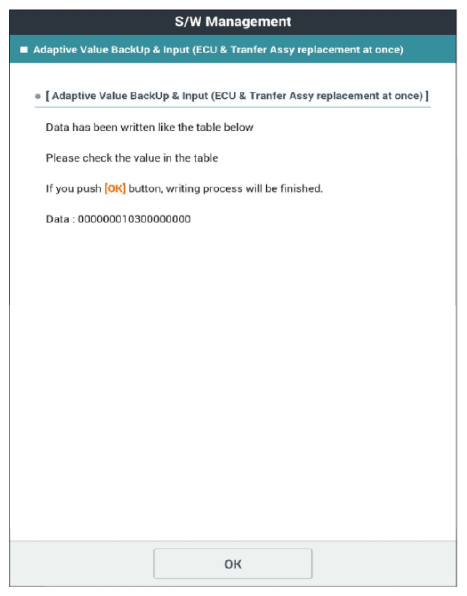

G15719507Courtesy of KIA MOTORS AMERICA, INC.
