S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "S/W Management" with KDS.
  3. Perform "Air Bleeding Mode" in "S/W Management" with KDS.
  4. After this procedure, Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 4
CAUTION: This is the function to discharge the air inside the oil.
G15719457Courtesy of KIA MOTORS AMERICA, INC.

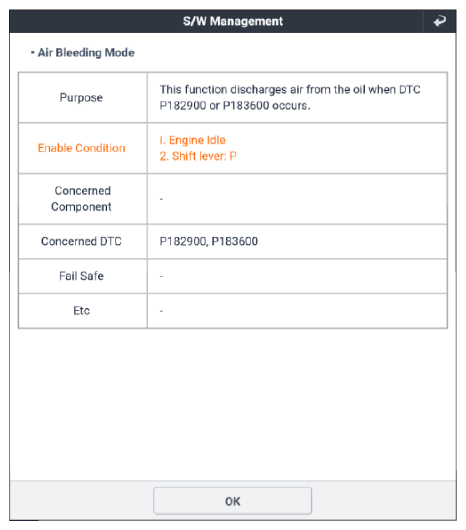

G15719458Courtesy of KIA MOTORS AMERICA, INC.

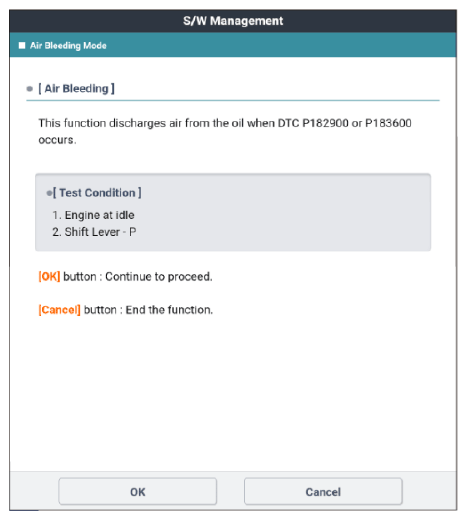

G15719459Courtesy of KIA MOTORS AMERICA, INC.
G15719460Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "S/W Management" with KDS.
  3. Perform "Adaptive Value Back-up & Input (ECU replacement)" in "S/W Management" with KDS.
  4. After this procedure, Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 10
G15719461Courtesy of KIA MOTORS AMERICA, INC.

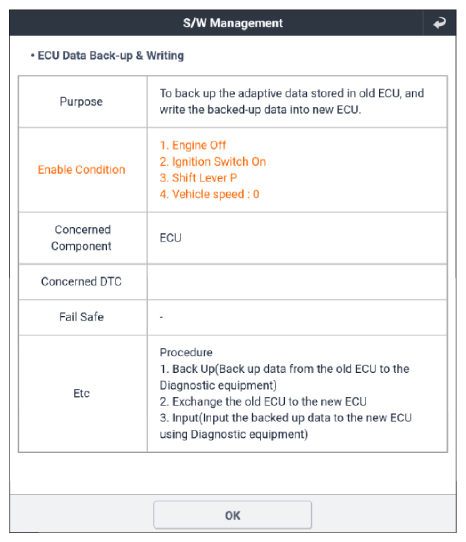

G15719462Courtesy of KIA MOTORS AMERICA, INC.

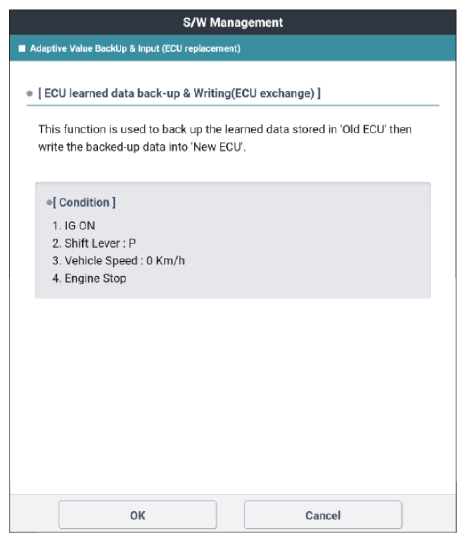

G15719463Courtesy of KIA MOTORS AMERICA, INC.

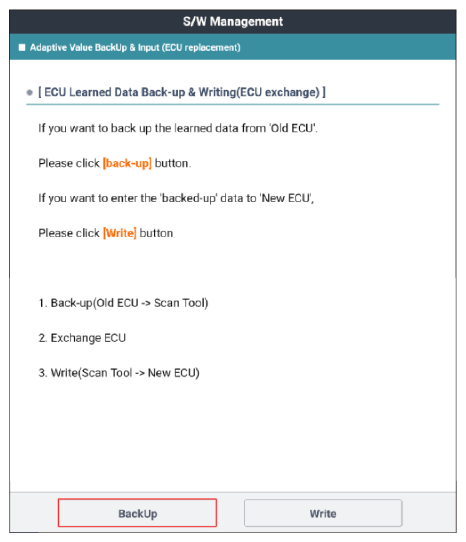

G15719464Courtesy of KIA MOTORS AMERICA, INC.

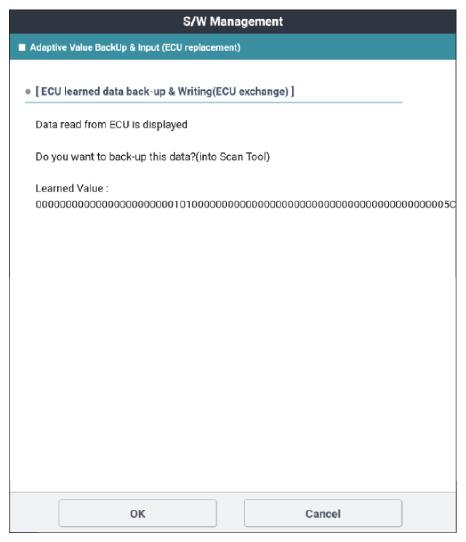

G15719465Courtesy of KIA MOTORS AMERICA, INC.

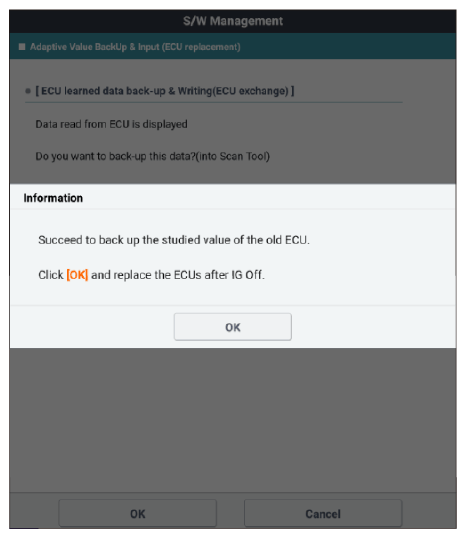

G15719466Courtesy of KIA MOTORS AMERICA, INC.
G15719467Courtesy of KIA MOTORS AMERICA, INC.

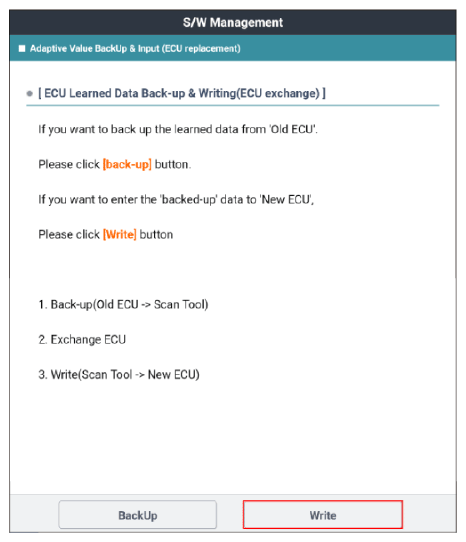

G15719468Courtesy of KIA MOTORS AMERICA, INC.

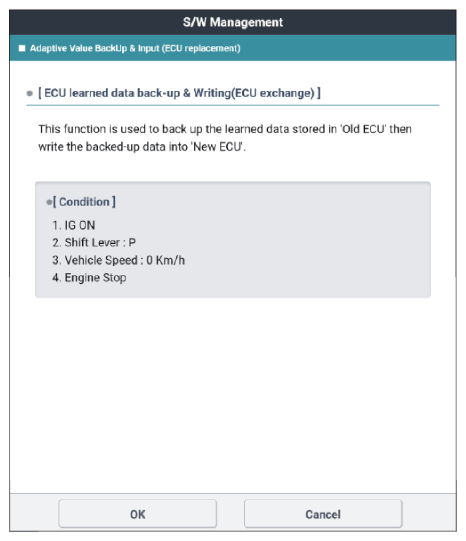

G15719469Courtesy of KIA MOTORS AMERICA, INC.

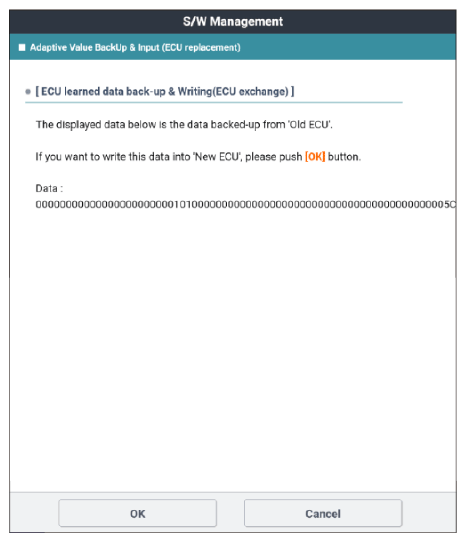

G15719470Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "S/W Management" with KDS.
  3. Perform "Adaptive Value Back-up & Input (ECU & Transfer Assy replacement at once)" in "S/W Management" with KDS.
  4. After this procedure, Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 10
G15719471Courtesy of KIA MOTORS AMERICA, INC.
G15719472Courtesy of KIA MOTORS AMERICA, INC.

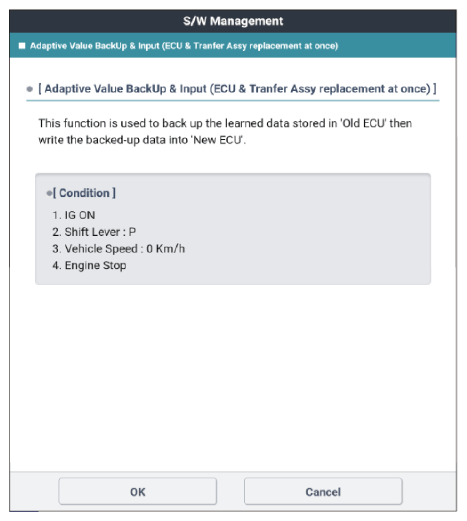

G15719473Courtesy of KIA MOTORS AMERICA, INC.

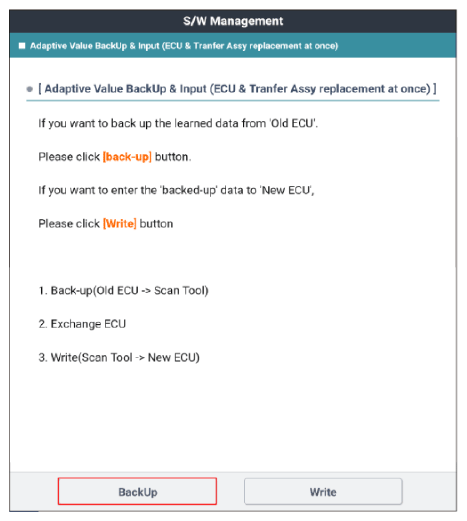

G15719474Courtesy of KIA MOTORS AMERICA, INC.

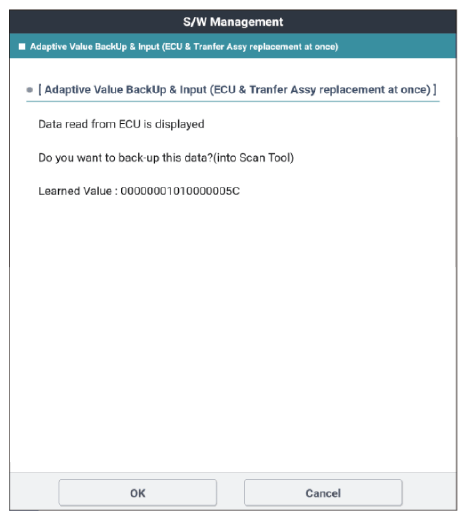

G15719475Courtesy of KIA MOTORS AMERICA, INC.
G15719476Courtesy of KIA MOTORS AMERICA, INC.

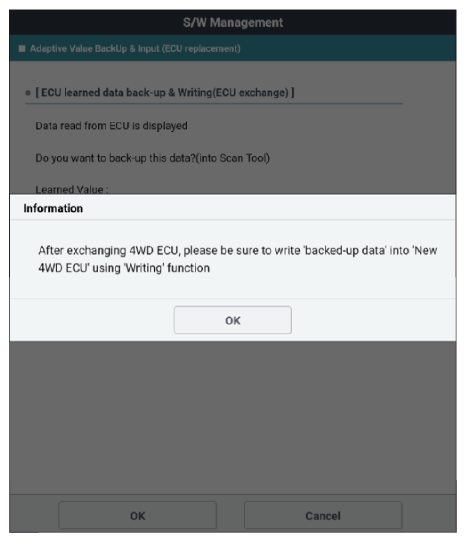

G15719477Courtesy of KIA MOTORS AMERICA, INC.

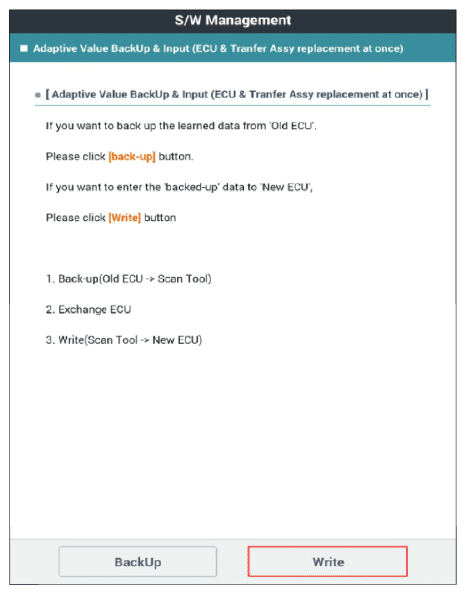

G15719478Courtesy of KIA MOTORS AMERICA, INC.

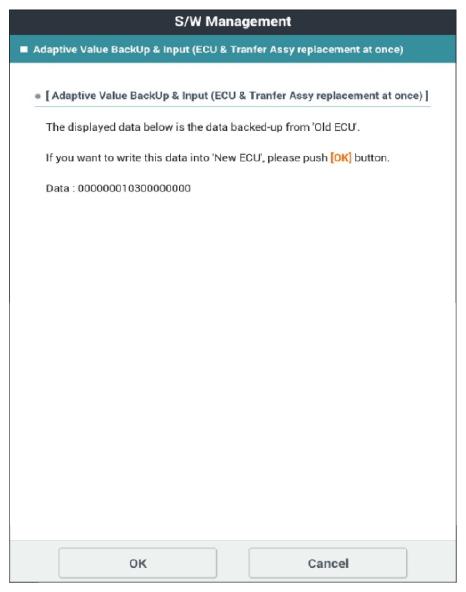

G15719479Courtesy of KIA MOTORS AMERICA, INC.

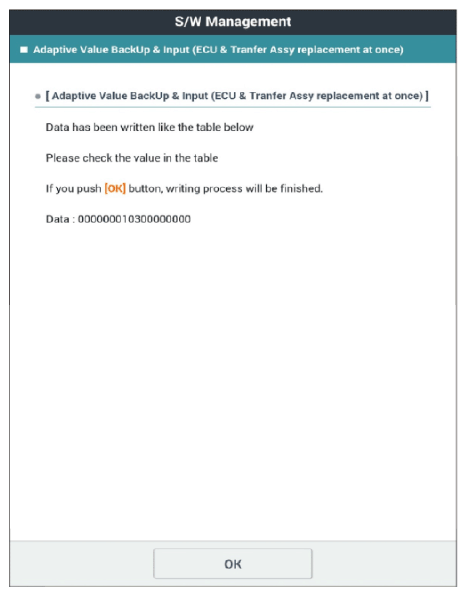

G15719480Courtesy of KIA MOTORS AMERICA, INC.
