S/W management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "S/W Management" with KDS.
  3. Perform "Adaptive Value Back-up & Input (ECU replacement)" in "S/W Management" with KDS.
  4. After this procedure, Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 10
G15719393Courtesy of KIA MOTORS AMERICA, INC.

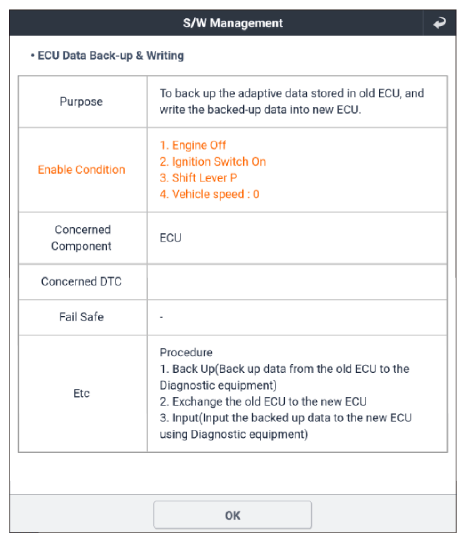

G15719394Courtesy of KIA MOTORS AMERICA, INC.

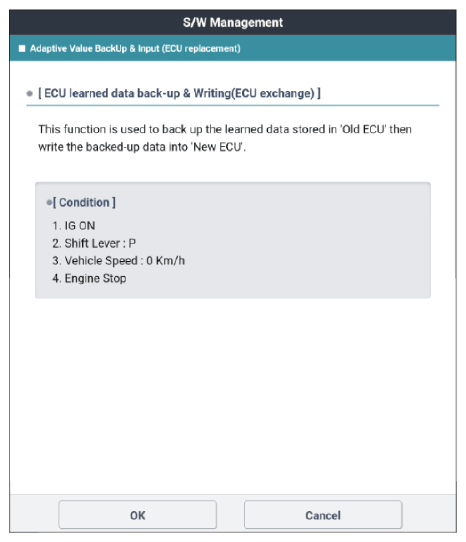

G15719395Courtesy of KIA MOTORS AMERICA, INC.

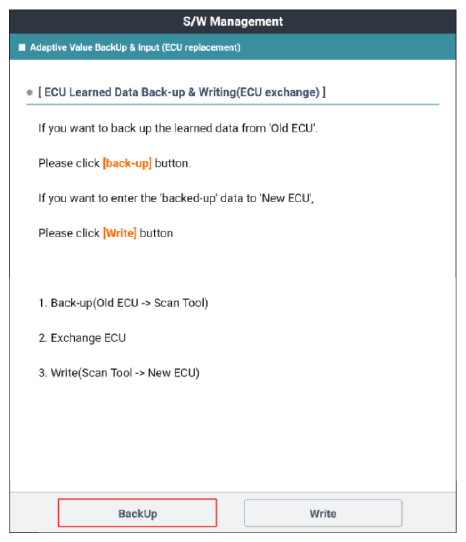

G15719396Courtesy of KIA MOTORS AMERICA, INC.

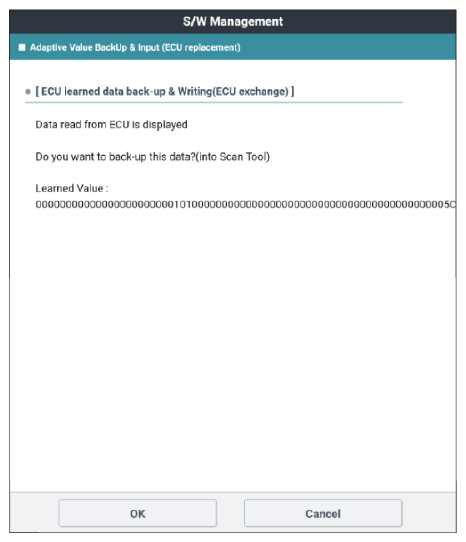

G15719397Courtesy of KIA MOTORS AMERICA, INC.

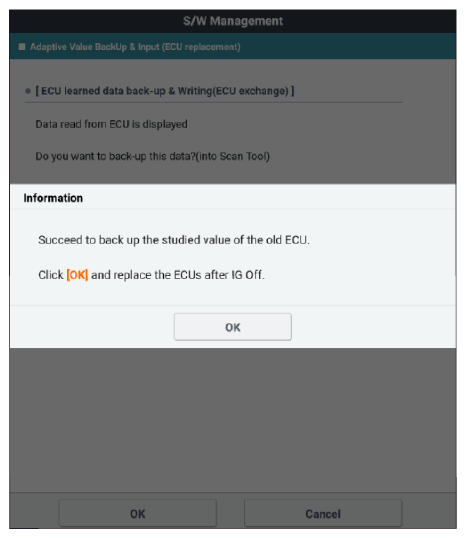

G15719398Courtesy of KIA MOTORS AMERICA, INC.

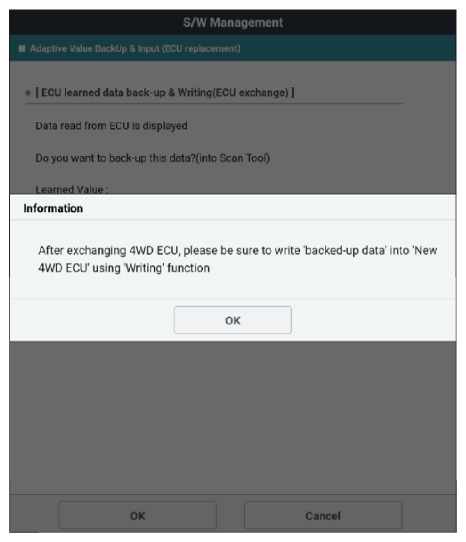

G15719399Courtesy of KIA MOTORS AMERICA, INC.

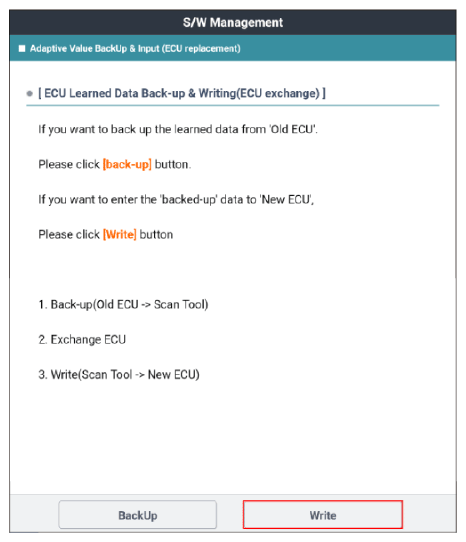

G15719400Courtesy of KIA MOTORS AMERICA, INC.

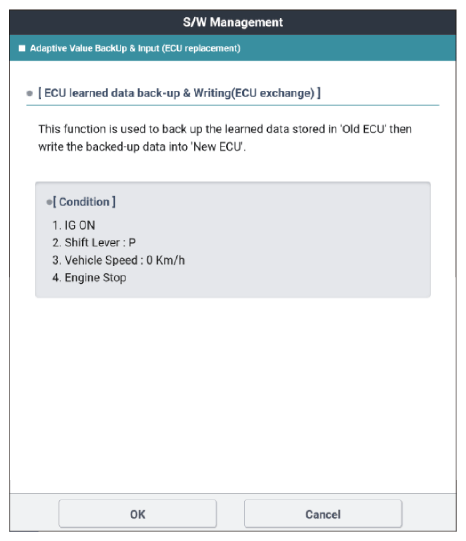

G15719401Courtesy of KIA MOTORS AMERICA, INC.

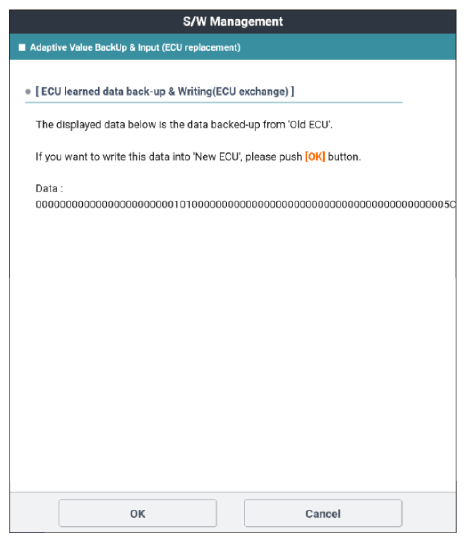

G15719402Courtesy of KIA MOTORS AMERICA, INC.
