S/W management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "S/W Management" with KDS.
  3. Perform "Adaptive Value Back-up & Input (ECU replacement)" in "S/W Management" with KDS.
  4. After this procedure, Go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 10
G15719381Courtesy of KIA MOTORS AMERICA, INC.

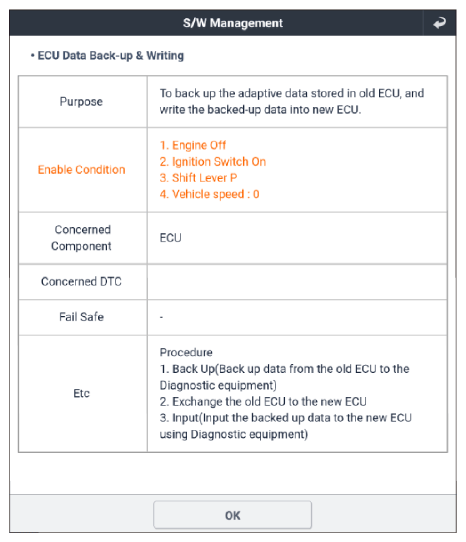

G15719382Courtesy of KIA MOTORS AMERICA, INC.

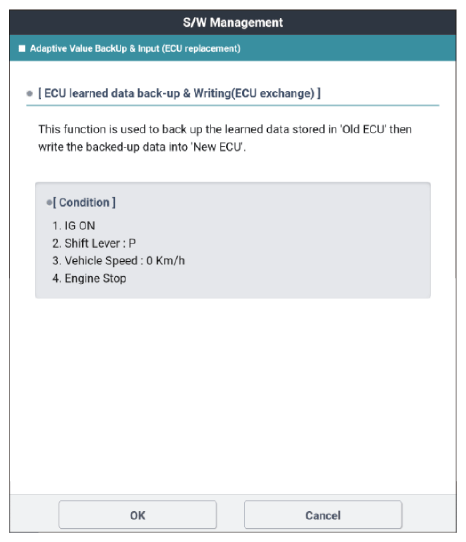

G15719383Courtesy of KIA MOTORS AMERICA, INC.

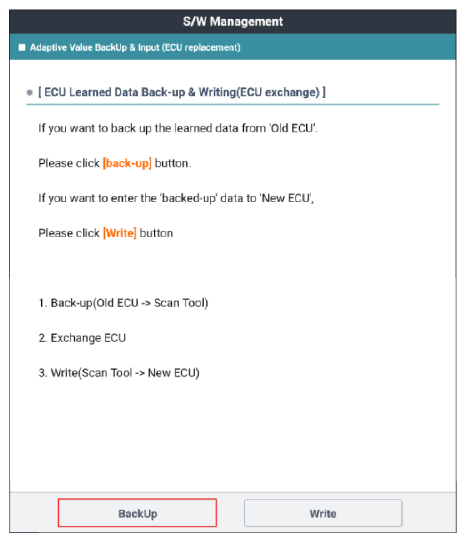

G15719384Courtesy of KIA MOTORS AMERICA, INC.

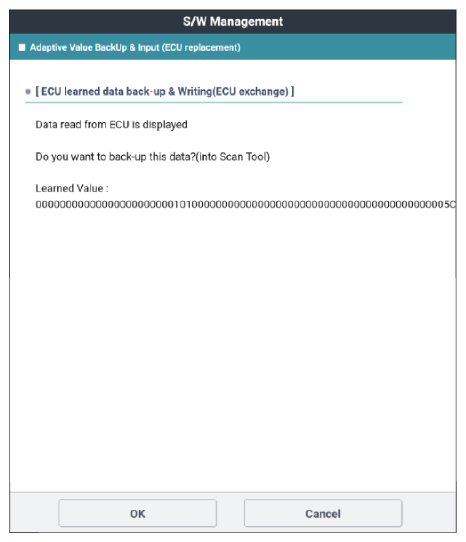

G15719385Courtesy of KIA MOTORS AMERICA, INC.

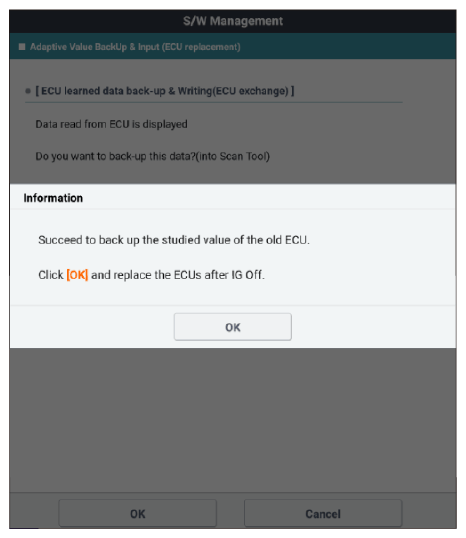

G15719386Courtesy of KIA MOTORS AMERICA, INC.

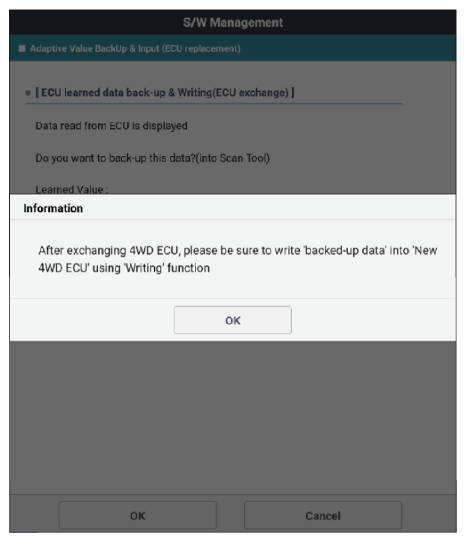

G15719387Courtesy of KIA MOTORS AMERICA, INC.

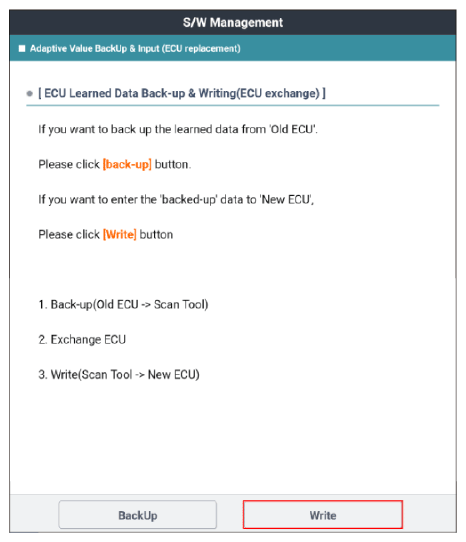

G15719388Courtesy of KIA MOTORS AMERICA, INC.

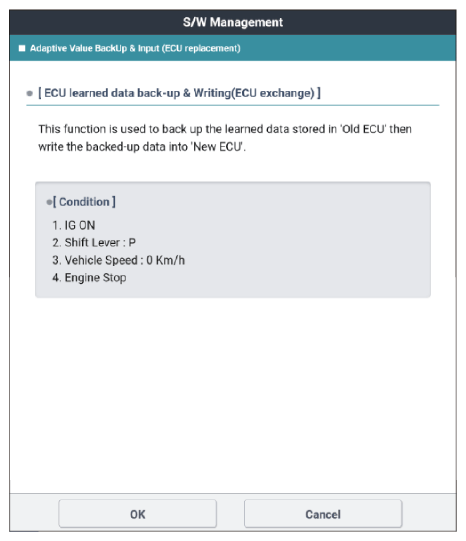

G15719389Courtesy of KIA MOTORS AMERICA, INC.

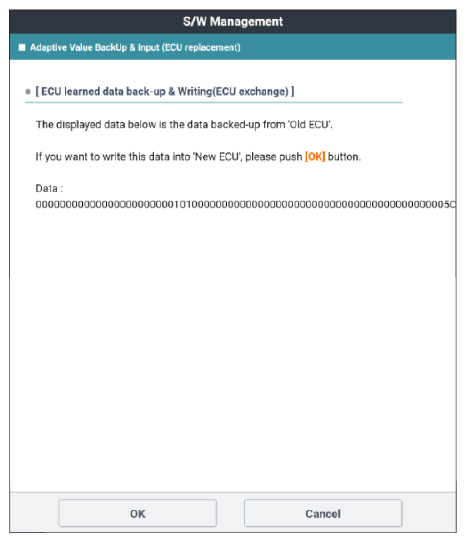

G15719390Courtesy of KIA MOTORS AMERICA, INC.
